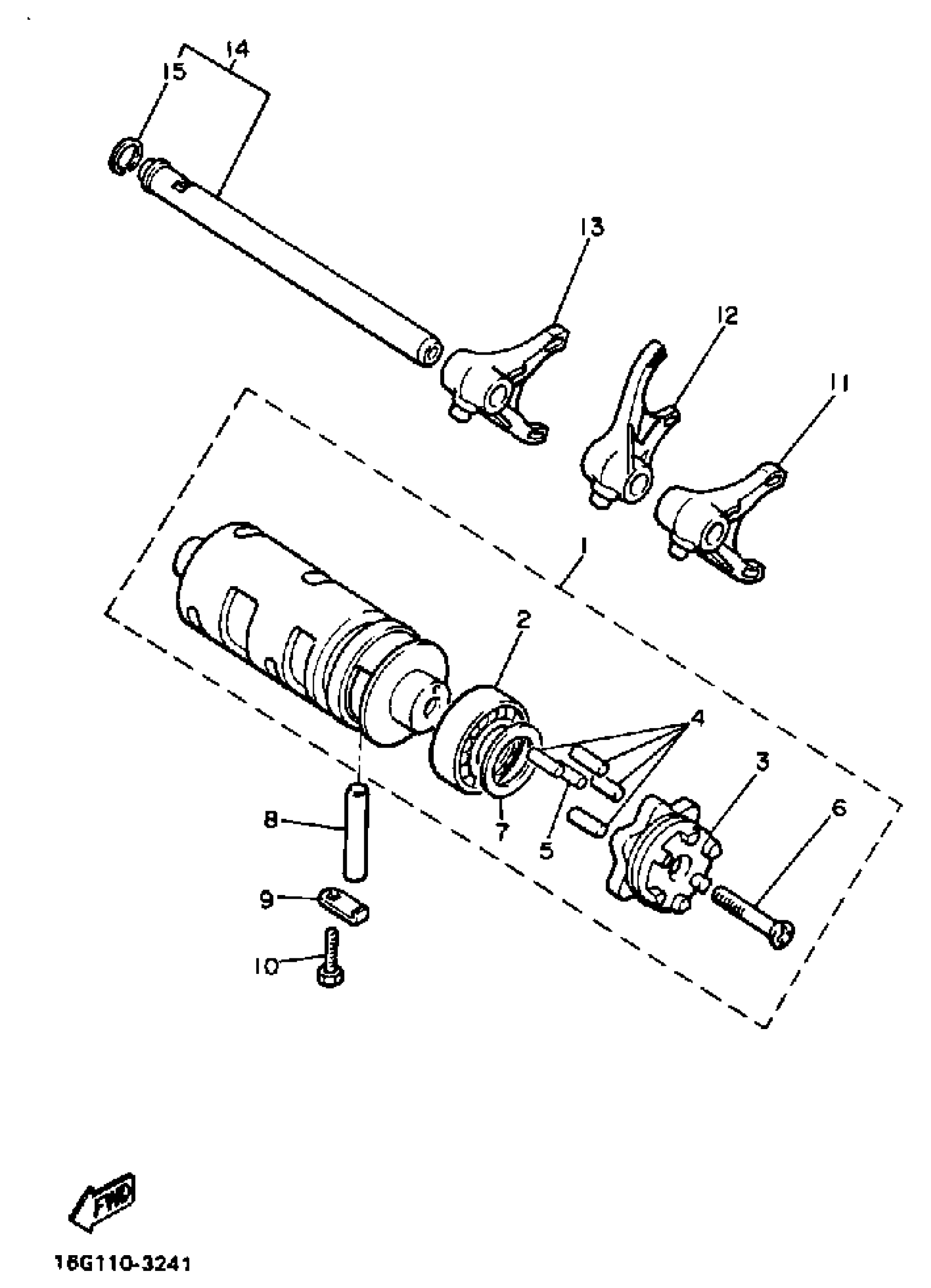

Yamaha XJ700SC (MAXIM CA) 1986 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSEMBLY

16G-18540-00-00

Unavailable

2

BEARING (5K5)

93306-90501-00

$32.82

3

. SEGMENT

16G-18185-00-00

Unavailable

4

PIN, DOWEL (409)

93604-16092-00

$1.86

5

PIN,DOWEL (603)

93604-10011-00

$4.89

6

SCREW, FLAT

98707-05035-00

$6.59

7

WASHER, PLATE(59W)

90201-253K0-00

$5.76

8

PIN, DOWEL (4H7)

93608-43157-00

$3.85

9

PLATE, STOPPER

2H7-15531-00-00

Unavailable

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

11

FORK, SHIFT 1

4KM-18511-00-00

Unavailable

12

FORK, SHIFT 2

4KM-18512-00-00

$42.21

13

FORK, SHIFT 3

4KM-18513-00-00

Unavailable

14

BAR, SHIFT FORK GUIDE 1

4KM-18531-00-00

Unavailable

15

CIRCLIP 214156170000

93440-11029-00

$5.65
