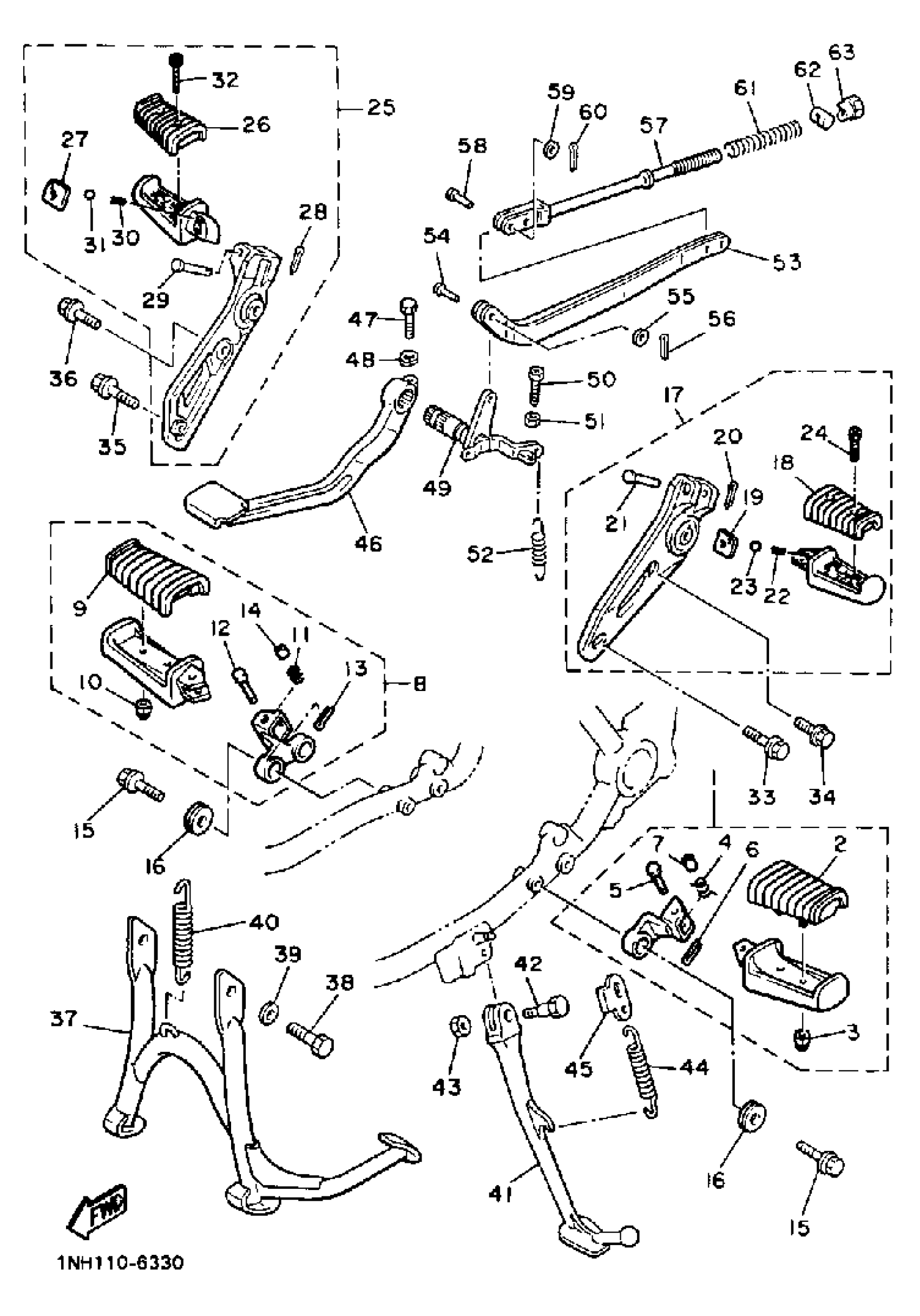

Yamaha XJ700SC (MAXIM CA) 1986 STAND FOOTREST Diagram

#

Description
Price

1

FRT FOOTREST ASSEMBLY L (LEFT)

1NH-27410-00-R4

Unavailable

2

COVER, FOOTREST

1NH-27413-00-00

$45.99

3

NUT (J17)

95380-06800-00

$8.49

4

SPRING, TORSION(1MY)

90508-18696-00

$8.49

5

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

6

PIN, COTTER

91490-25020-00

$3.19

7

COLLAR(1HX)

90387-087K5-00

$10.49

8

FRT FOOTREST ASSEMBLY R (RIGHT)

1NH-27420-00-R4

Unavailable

9

COVER, FOOTREST

1NH-27413-00-00

$45.99

10

NUT (J17)

95380-06800-00

$8.49

11

SPRING, TORSION(1MY)

90508-18696-00

$8.49

12

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

13

PIN, COTTER

91490-25020-00

$3.19

14

COLLAR(1HX)

90387-087K5-00

$10.49

15

BOLT, WASHER BASED (11H)

90105-08211-00

$3.23

16

PLATE, FOOTREST

1AA-27415-00-00

Unavailable

17

REAR FTRST ASSEMBLY 1

1NH-Y2743-00-00

Unavailable

18

COVER, REAR FOOTREST

1NH-27433-00-00

Unavailable

19

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

20

PIN, COTTER

91490-16020-00

Unavailable

21

PIN, CLEVIS

91702-06038-00

Unavailable

22

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

23

BALL

93501-04011-00

Unavailable

24

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

25

REAR FTRST ASSEMBLY 2

1NH-Y2744-00-00

Unavailable

26

COVER, REAR FOOTREST

1NH-27433-00-00

Unavailable

27

. UNAVAILABLE IN PRICE BOOK

1NX-27437-00-00

Unavailable

28

PIN, COTTER

91490-16020-00

Unavailable

29

PIN, CLEVIS

91702-06038-00

Unavailable

30

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

31

BALL

93501-04011-00

Unavailable

32

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

33

BOLT, FLANGE(3EF)

95024-08035-00

Unavailable

34

BOLT, FLANGE(2UJ)

95024-08020-00

Unavailable

35

BOLT, FLANGE(2UJ)

95024-08020-00

Unavailable

36

BOLT, FLANGE(2UJ)

95024-08020-00

Unavailable

37

STAND, MAIN

1AA-27111-00-R4

Unavailable

38

BOLT,HEXAGON

97017-10016-00

Unavailable

39

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

40

SPRING, TENSION (1T5)

90506-35149-00

Unavailable

41

STAND, SIDE

1UF-27311-00-R4

Unavailable

42

BOLT

90109-10473-00

Unavailable

43

NUT, U

90185-10037-00

Unavailable

44

SPRING, TENSION (5N8)

90506-29266-00

Unavailable

45

LINK, SIDE STAND

3VD-27315-00-00

Unavailable

46

PEDAL, BRAKE

1AA-27211-00-93

Unavailable

47

BOLT (1J7)

90109-06468-00

Unavailable

48

WASHER, SPRING

92995-06100-00

Unavailable

49

SHAFT, BRAKE PEDAL

1AA-27212-00-00

Unavailable

50

SCREW 341272170000

90153-06008-00

Unavailable

51

NUT, HEXAGON (371 447)

90170-06184-00

Unavailable

52

SPRING, TENSION (2X3)

90506-20193-00

Unavailable

53

ROD, JOINT

1AA-27241-00-00

Unavailable

54

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

55

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

56

PIN, COTTER

91490-20025-00

Unavailable

57

ROD, BRAKE

1AA-27231-00-00

Unavailable

58

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

59

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

60

PIN, COTTER

91490-20025-00

Unavailable

61

SPRING, (180-27236-00)

90501-10245-00

Unavailable

62

PIN 1562723700

90249-12008-00

Unavailable

63

NUT (25K)

90179-06411-00

Unavailable
