Description

Price

1

COVER, SIDE 1

1AA-21711-00-MV

Unavailable

1

COVER, SIDE 1

1AA-21711-00-MW

Unavailable

2

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

3

COVER, SIDE 2

1AA-21721-00-MV

Unavailable

3

COVER, SIDE 2

1AA-21721-00-MW

Unavailable

4

GROMMET(41Y)

90480-01401-00

$8.49

5

PLATE, SPEC

(1NK-21687-60-00)

Unavailable

6

BOX, TOOL

(1AA-21171-00-00)

Unavailable

7

SEAT, BATTERY

5Y1-82122-00-00

$7.99

8

GROMMET (462)

90480-14088-00

$5.60

9

GROMMET 839774310000

90480-14023-00

$7.49

10

COLLAR

90387-06158-00

$8.49

11

BOLT, HEXAGON

97017-06025-00

$4.24

12

WASHER, SPRING

92995-06100-00

Unavailable

13

PLATE, BRIDGE

1AA-21243-00-00

Unavailable

14

SCREW, WITH WASHER(35R)

90159-06093-00

Unavailable

15

GRAPHIC (BLUISH BLACK)

1NH-2173E-00-00

Unavailable

15

GRAPHIC (RED-E SPARKLE)

1NH-2173E-10-00

Unavailable

16

GRAPHIC (BLUISH BLACK)

1NH-2173F-00-00

Unavailable

16

GRAPHIC (RED-E SPARKLE)

1NH-2173F-10-00

Unavailable

17

TOOL KIT (16G-28100-10)

1FG-28100-00-00

Unavailable

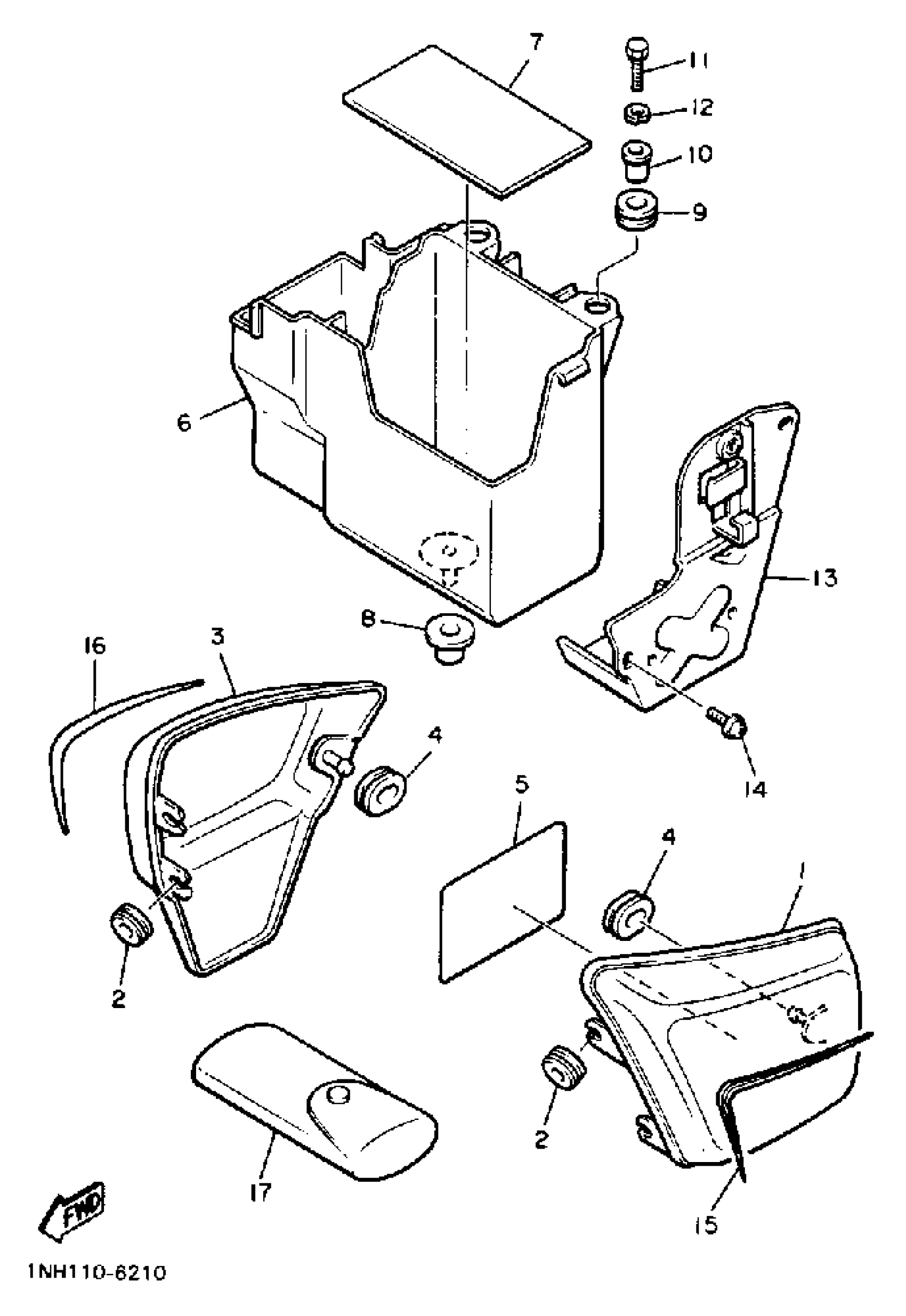

Yamaha XJ700SC (MAXIM CA) 1986 SIDE COVER XJ700SC Diagram

COVER, SIDE 1

COVER, SIDE 1

DAMPER, SIDE COVER (437)

COVER, SIDE 2

COVER, SIDE 2

GROMMET(41Y)

PLATE, SPEC

BOX, TOOL

SEAT, BATTERY

GROMMET (462)

GROMMET 839774310000

COLLAR

BOLT, HEXAGON

WASHER, SPRING

PLATE, BRIDGE

SCREW, WITH WASHER(35R)

GRAPHIC (BLUISH BLACK)

GRAPHIC (RED-E SPARKLE)

GRAPHIC (BLUISH BLACK)

GRAPHIC (RED-E SPARKLE)

TOOL KIT (16G-28100-10)
