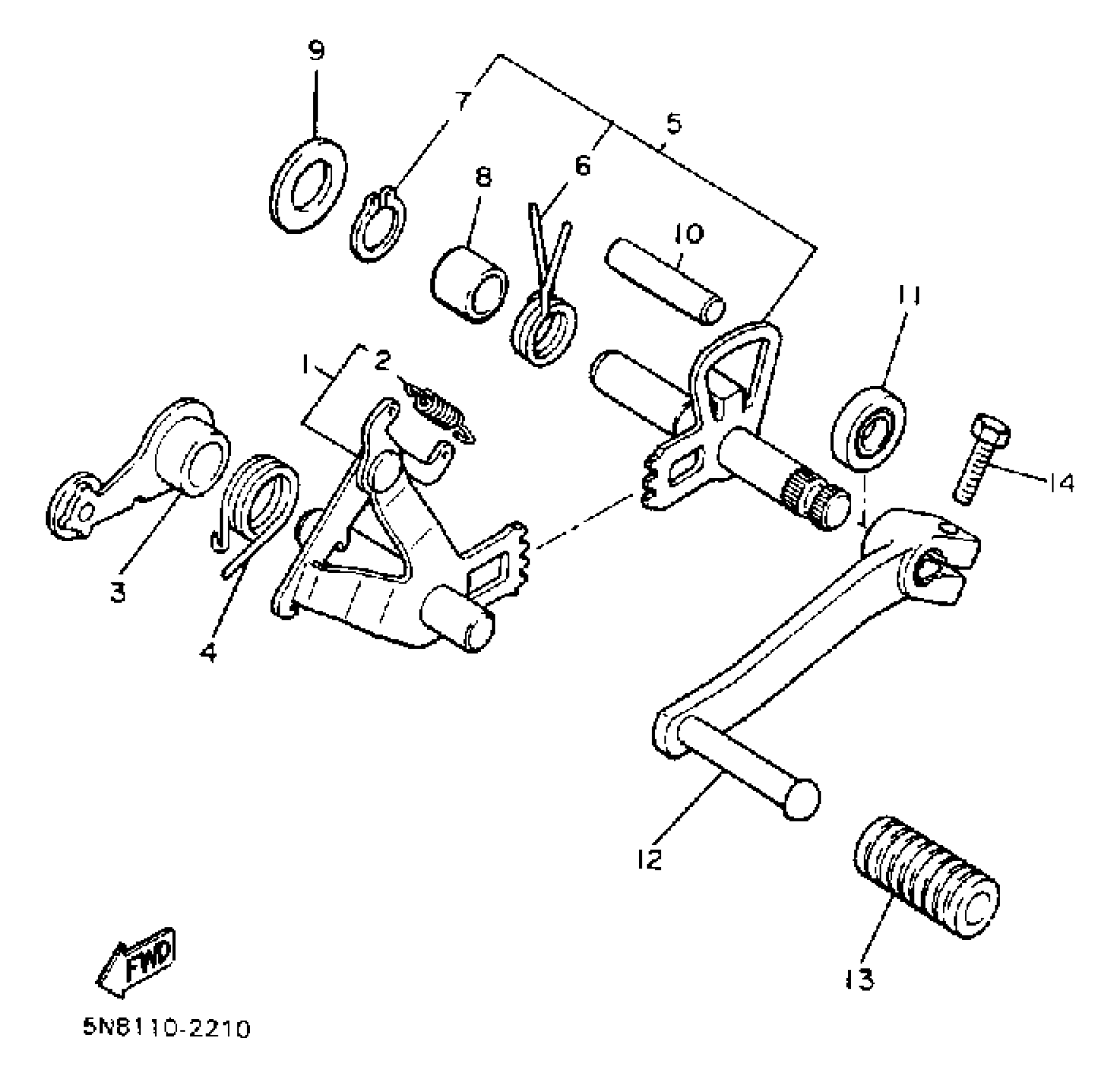

Yamaha XJ700SC (MAXIM CA) 1986 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSEMBLY.1

4H7-18101-00-00

Unavailable

2

SPRING, TENSION (4H7)

90506-08227-00

$4.19

3

STOPPER LEVER ASSEMBLY

4H7-18140-00-00

Unavailable

4

SPRING, TORSION

90508-29530-00

Unavailable

5

SHIFT LEVER ASSEMBLY

4H7-18120-02-00

Unavailable

6

SPRING, TORSION (4H7)

90508-32535-00

$10.49

7

CIRCLIP

99006-10600-00

$9.49

8

COLLAR

90387-12033-00

$7.49

9

WASHER PLATE 164185720000

90201-12166-00

$9.49

10

PIN, DOWEL (4H7)

93608-50158-00

$8.49

11

SEAL, OIL (30X)

93102-12321-00

$12.49

12

PEDAL, SHIFT

4H7-18111-00-00

Unavailable

13

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

14

BOLT, HEXAGON

97017-06020-00

$4.06
