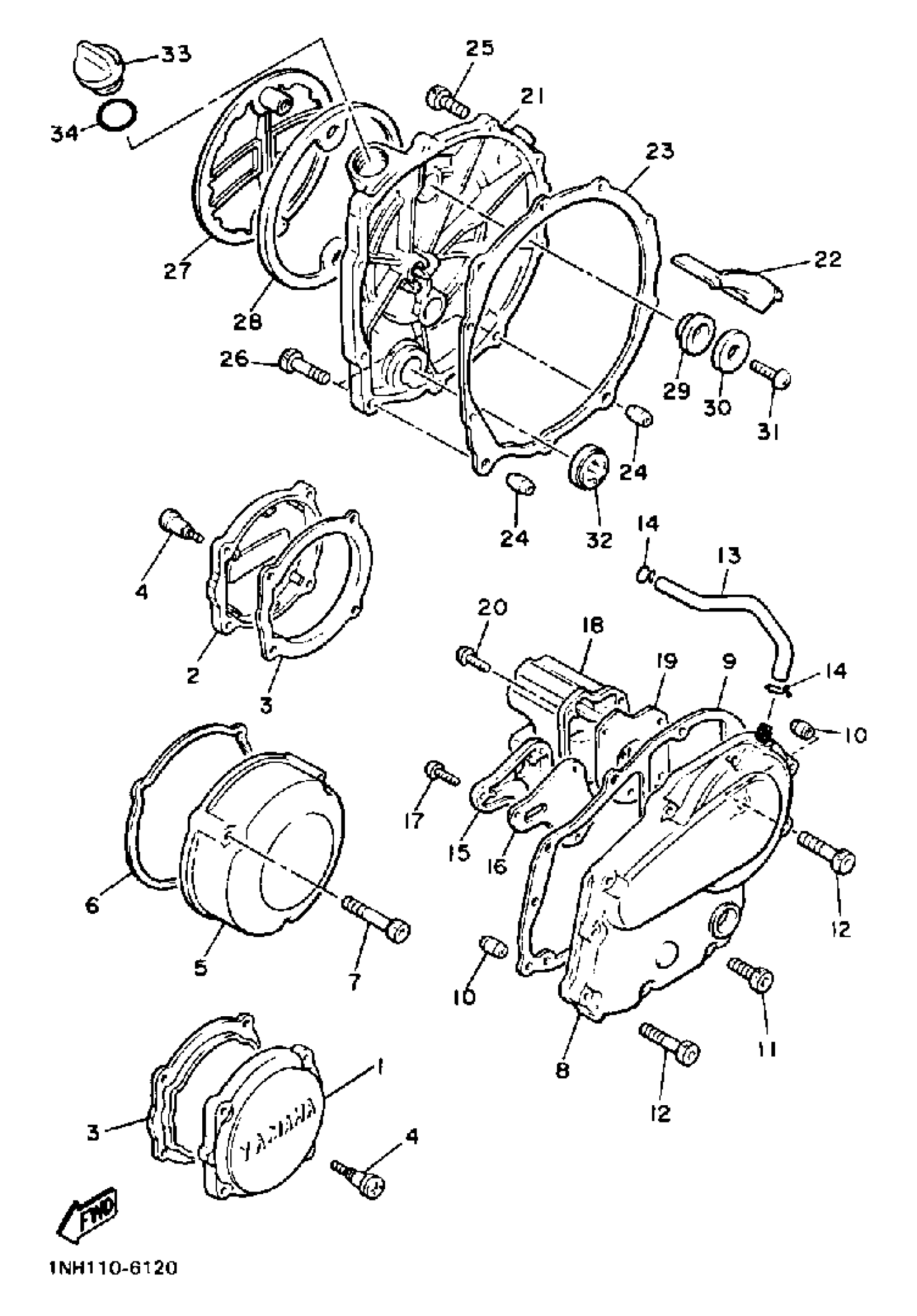

Yamaha XJ700SC (MAXIM CA) 1986 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER,OIL PUMP

2AX-15416-00-00

Unavailable

2

COVER,OIL PUMP R

2AX-15426-00-00

Unavailable

3

RING, RUBBER

33M-15449-00-00

$45.99

4

BOLT 1

33M-15481-00-00

Unavailable

5

COVER, GENERATOR

4W5-15415-00-00

Unavailable

6

GASKET 1

4BB-15455-00-00

$27.99

7

BOLT, SOCKET

91317-06070-00

$4.99

8

CRANKCASE CVR ASSEMBLY

1AA-15409-00-00

Unavailable

9

GASKET, CRANKCASE COVER 1

4BB-15451-00-00

$35.99

10

PIN, DOWEL(3VD)

99530-10114-00

$2.55

11

BOLT,SOCKET

91317-06025-00

$5.60

12

BOLT,SOCKET

91317-06040-00

$3.76

13

PIPE, BREATHER 1

1AA-11166-00-00

Unavailable

14

CLIP (371)

90467-14015-00

$8.49

15

BREATHER 1

(4H7-15346-00-00)

Unavailable

16

GASKET

4BB-15457-00-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

BREATHER 2

4H7-15347-01-00

Unavailable

19

GASKET

4BB-15467-00-00

Unavailable

20

SCREW, PAN

98507-06014-00

Unavailable

21

COVER, CRANKCASE R

4W5-15421-00-00

Unavailable

22

COVER, OIL PUMP

4H7-15412-01-00

Unavailable

23

GASKET, CRANKCASE COVER 2

4BB-15461-00-00

Unavailable

24

PIN, DOWEL(3VD)

99530-10114-00

$2.55

25

BOLT,SOCKET

91317-06025-00

$5.60

26

BOLT,SOCKET

91317-06040-00

$3.76

27

COVER, CAP

1NH-15417-00-00

Unavailable

28

RING, RUBBER

4H7-15449-00-00

Unavailable

29

GROMMET

4H7-15486-00-00

Unavailable

30

WASHER (4H7)

90209-06096-00

Unavailable

31

SCREW, PAN

98507-06014-00

Unavailable

32

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

33

PLUG, OIL

2H9-15363-00-00

Unavailable

34

O-RING(1KT)

93210-27778-00

Unavailable
