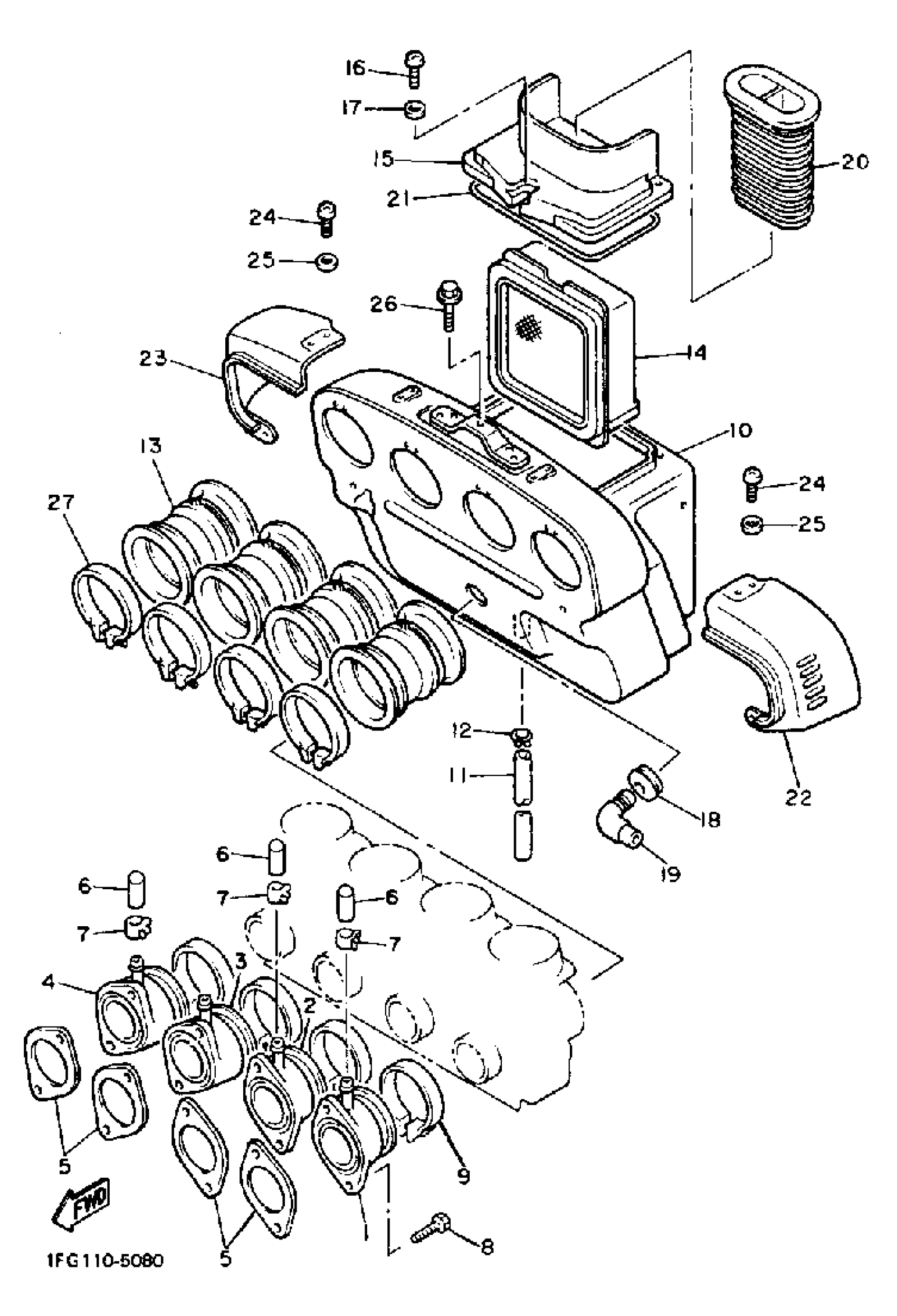

Yamaha XJ700SC (MAXIM CA) 1986 AIR CLEANER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

29R-13586-00-00

Unavailable

2

JOINT, CARBURETOR 2

29R-13596-00-00

Unavailable

3

JOINT, CARB 3

29R-13597-00-00

Unavailable

4

JOINT, CARB 4

29R-13598-00-00

Unavailable

5

GASKET, MANIFOLD

4H7-13556-11-00

$6.99

6

PLUG, BLIND

16G-13569-00-00

$7.99

7

CLIP (3G0)

90467-10039-00

$9.49

8

BOLT,SOCKET

91317-06020-00

Unavailable

9

CLAMP, H0SE (29R)

90460-49248-00

$24.99

10

AIR CLNR CASE ASSEMBLY

1FG-14401-00-00

Unavailable

11

HOSE (L370)

90445-112E1-00

$23.99

12

CLIP

90467-090A2-00

$4.41

13

JOINT, AIR CLNR 1

1FG-14453-00-00

Unavailable

14

ELEMENT, AIR CLEANER

1AA-14451-00-00

$64.99

15

CAP, CLEANER CASE 1

1AA-14412-00-00

Unavailable

16

SCREW, PAN HEAD

98580-05020-00

Unavailable

17

WASHER, PLAIN (646)

92990-05600-00

Unavailable

18

GROMMET

31A-14435-01-00

Unavailable

19

PIPE

31A-14419-00-00

Unavailable

20

DUCT

1AA-14437-00-00

Unavailable

21

SEAL

51Y-14462-00-00

Unavailable

22

COVER, CLNR CASE 1

1AA-1441A-00-00

Unavailable

23

COVER, CLNR CASE 2

1AA-1441E-00-00

Unavailable

24

SCREW, TAPPING(61A)

97780-50612-00

Unavailable

25

. WASHER, PLAIN

92990-05200-00

Unavailable

26

BOLT, WITH WASHER (4L6)

90119-06029-00

Unavailable

27

HOSE CLAMP ASSY

90450-56001-00

Unavailable
