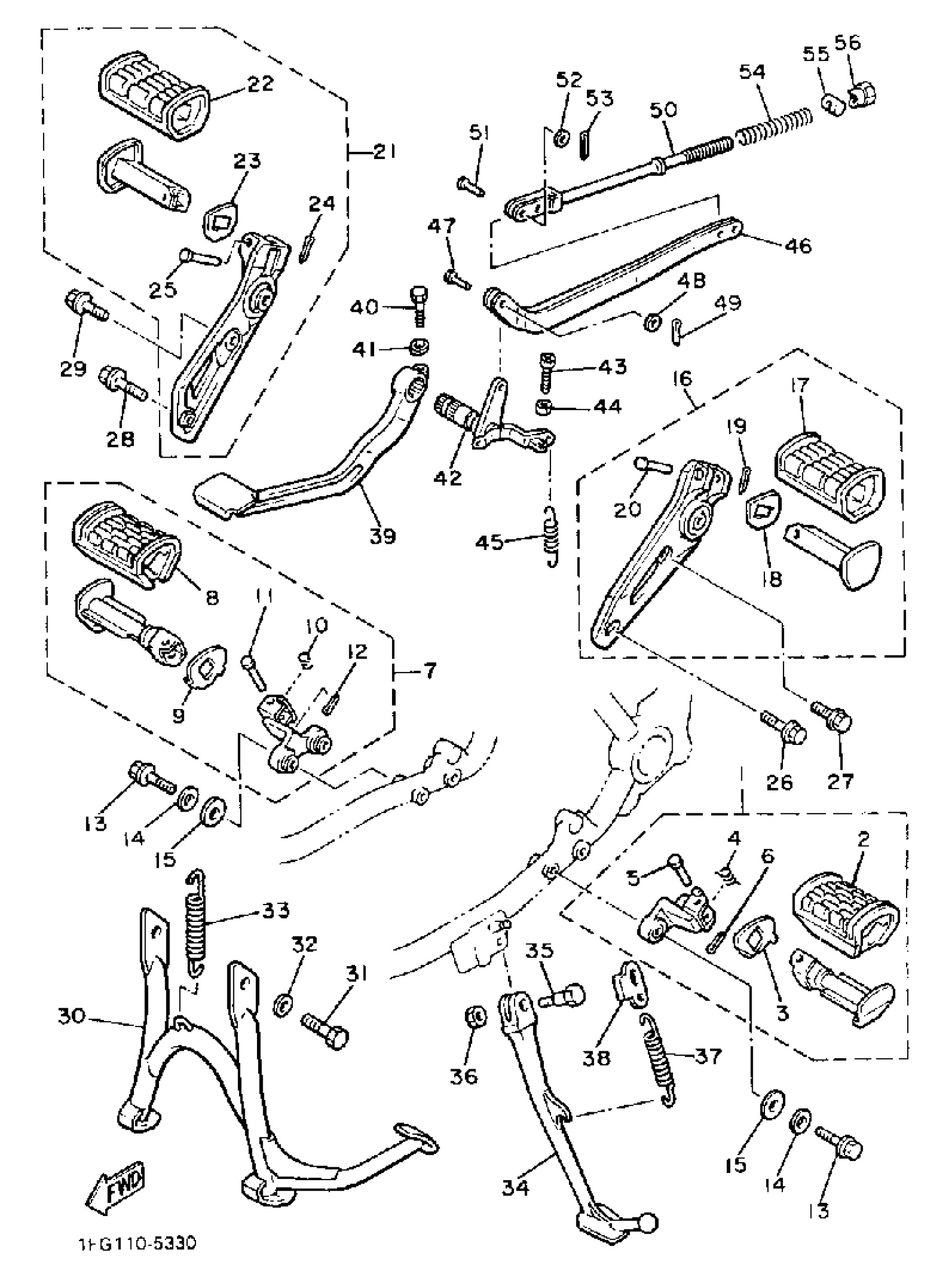

Yamaha XJ700NC (MAXIM CA) 1985 STAND FOOTREST Diagram

#

Description
Price

1

FRT FOOTREST ASSEMBLY L

1AA-27410-00-R4

Unavailable

2

COVER, FOOTREST

26H-27413-02-00

Unavailable

3

. WASHER, FOOTREST

26H-27417-00-00

Unavailable

4

. SPRING, TORSION

90508-20154-00

Unavailable

5

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

6

PIN, COTTER

91490-25020-00

$3.19

7

FRT FOOTREST ASSEMBLY R

1AA-27420-00-R4

Unavailable

8

COVER, FOOTREST

26H-27413-02-00

Unavailable

9

. WASHER, FOOTREST

26H-27417-00-00

Unavailable

10

SPRING TORSION 371274560000

90508-20155-00

$9.49

11

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

12

PIN, COTTER

91490-25020-00

$3.19

13

BOLT, WASHER BASED (11H)

90105-08211-00

$3.23

14

PLATE, FOOTREST

1AA-27415-00-00

Unavailable

15

WASHER, PLATE

90202-13149-00

Unavailable

16

REAR FTRST ASSEMBLY 1

1AA-Y2743-00-00

Unavailable

17

. COVER, REAR FOOTREST

3H5-27433-00-00

Unavailable

18

. WASHER, SPECIAL SHAPE

90209-18190-00

Unavailable

19

PIN, COTTER

91490-16020-00

Unavailable

20

PIN, CLEVIS

91702-06038-00

Unavailable

21

REAR FTRST ASSEMBLY 2

1AA-Y2744-00-00

Unavailable

22

. COVER, REAR FOOTREST

3H5-27444-00-00

Unavailable

23

. WASHER, SPECIAL SHAPE

90209-18190-00

Unavailable

24

PIN, COTTER

91490-16020-00

Unavailable

25

PIN, CLEVIS

91702-06038-00

Unavailable

26

BOLT, FLANGE(3EF)

95024-08035-00

Unavailable

27

BOLT, FLANGE(2UJ)

95024-08020-00

Unavailable

28

BOLT, FLANGE(3EF)

95024-08035-00

Unavailable

29

BOLT, FLANGE(2UJ)

95024-08020-00

Unavailable

30

STAND, MAIN

1AA-27111-00-R4

Unavailable

31

BOLT,HEXAGON

97017-10016-00

Unavailable

32

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

33

SPRING, TENSION (1T5)

90506-35149-00

Unavailable

34

STAND, SIDE

1UF-27311-00-R4

Unavailable

35

BOLT

90109-10473-00

Unavailable

36

NUT, U

90185-10037-00

Unavailable

37

SPRING, TENSION (5N8)

90506-29266-00

Unavailable

38

LINK, SIDE STAND

3VD-27315-00-00

Unavailable

39

PEDAL, BRAKE

1AA-27211-00-93

Unavailable

40

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

41

WASHER, SPRING

92995-06100-00

Unavailable

42

SHAFT, BRAKE PEDAL

1AA-27212-00-00

Unavailable

43

SCREW 341272170000

90153-06008-00

Unavailable

44

NUT, HEXAGON (371 447)

90170-06184-00

Unavailable

45

SPRING, TENSION (2X3)

90506-20193-00

Unavailable

46

ROD, JOINT

1AA-27241-00-00

Unavailable

47

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

48

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

49

PIN, COTTER

91490-20025-00

Unavailable

50

ROD, BRAKE

1AA-27231-00-00

Unavailable

51

PIN, CLEVIS (24X)

90240-06103-00

Unavailable

52

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

53

PIN, COTTER

91490-20025-00

Unavailable

54

SPRING, (180-27236-00)

90501-10245-00

Unavailable

55

PIN 1562723700

90249-12008-00

Unavailable

56

NUT (25K)

90179-06411-00

Unavailable
