1985 Yamaha Maxim CA (XJ700NC) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1985 Yamaha Maxim CA (XJ700NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

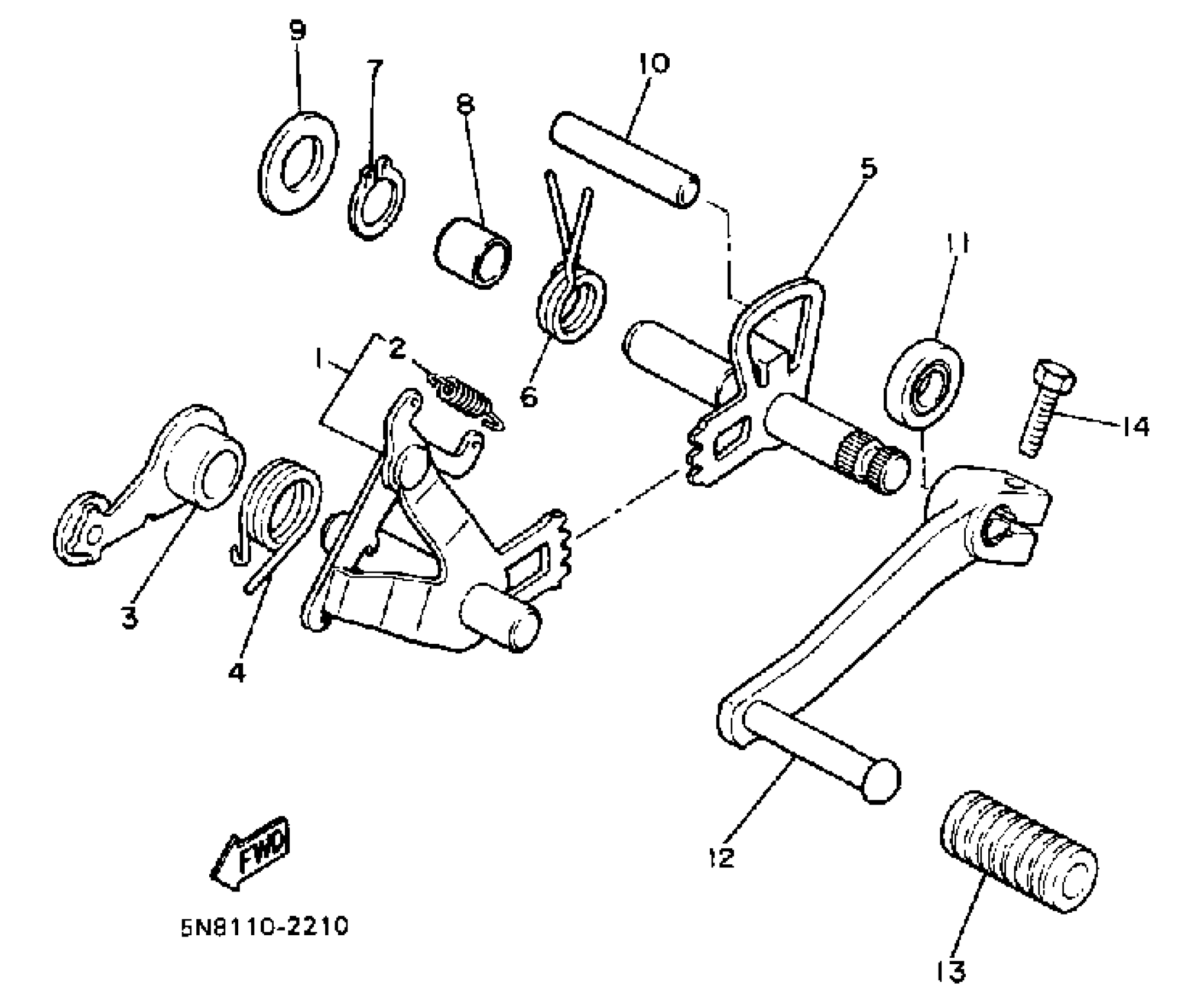

1985 Yamaha Maxim CA (XJ700NC) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSEMBLY.1

4H7-18101-00-00

1
Out of stock

2

SPRING, TENSION (4H7)

90506-08227-00

1

$2.85

In stock

3

STOPPER LEVER ASSEMBLY

4H7-18140-00-00

1
Out of stock

4

SPRING, TORSION

90508-29530-00

1
Out of stock

5

SHIFT LEVER ASSEMBLY

4H7-18120-02-00

1
Out of stock

6

SPRING, TORSION (4H7)

90508-32535-00

1

$8.43

In stock

7

CIRCLIP

99006-10600-00

1

$6.91

In stock

8

COLLAR

90387-12033-00

1

$6.51

In stock

9

WASHER PLATE 164185720000

90201-12166-00

1

$6.29

In stock

10

PIN, DOWEL (4H7)

93608-50158-00

1

$6.68

In stock

11

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

12

PEDAL, SHIFT

4H7-18111-00-00

1
Out of stock

13

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

14

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock
