1985 Yamaha Maxim CA (XJ700NC) Clutch Diagram

← All diagrams

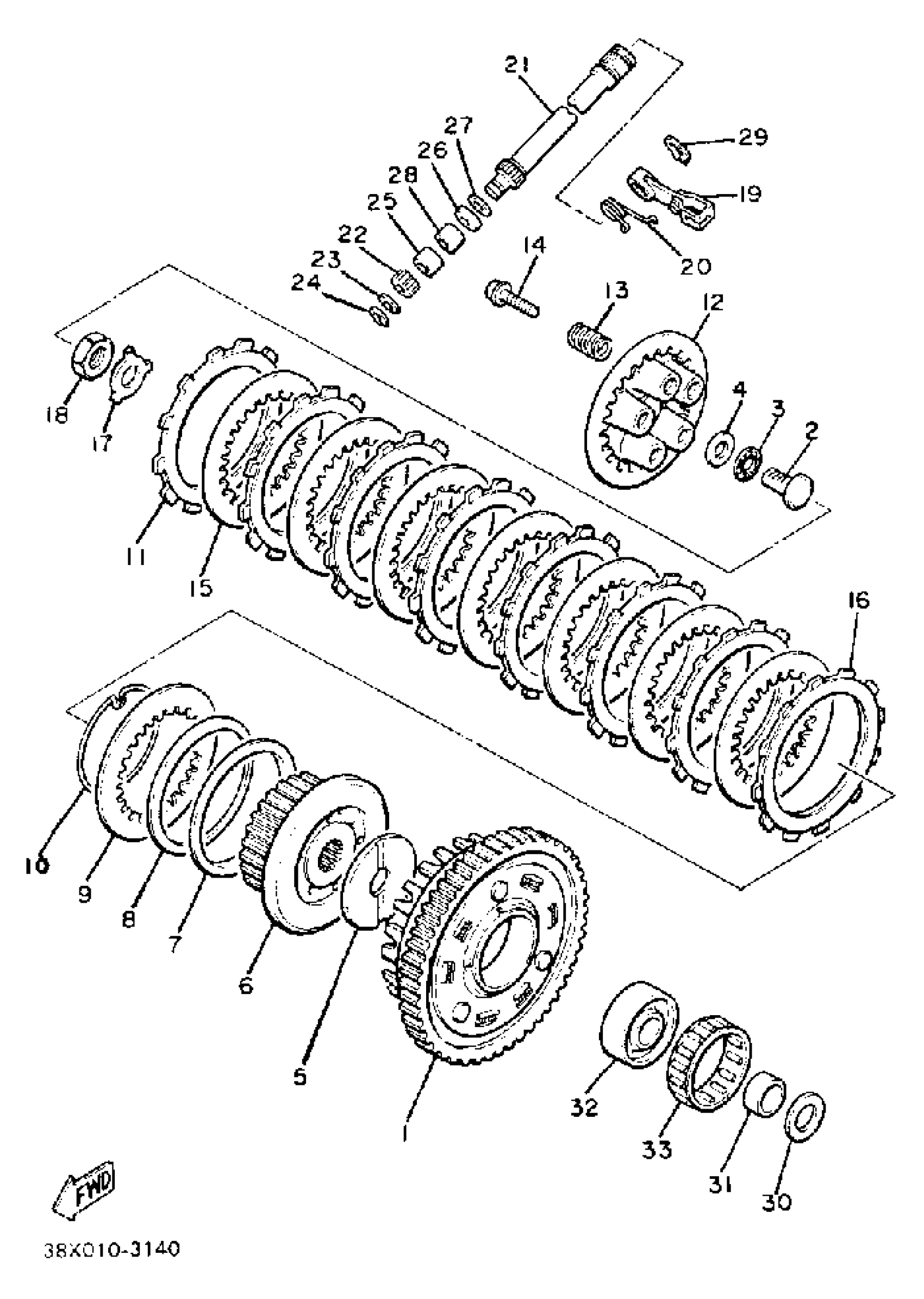

Find the part on the Clutch diagram for your 1985 Yamaha Maxim CA (XJ700NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Maxim CA (XJ700NC) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRIMARY DRIVEN GEAR

31A-16150-00-00

1
Out of stock

2

. ROD, PUSH 1

4H7-16356-01-00

1
Out of stock

3

BEARING, THRUST (713)

93340-21505-00

1

$16.62

In stock

4

WASHER, PLATE (5G3)

90201-154E9-00

1

$6.31

In stock

5

PLATE, THRUST 1

4H7-16154-00-00

—

$19.91

In stock

6

BOSS, CLUTCH

58L-16371-01-00

1
Out of stock

7

PLATE, SEAT

1J7-16384-00-00

—
Out of stock

8

SPRING, CLUTCH BOSS

5G2-16383-00-00

—

$37.31

In stock

9

PLATE, CLUTCH 1

168-16324-10-00

—

$19.09

In stock

10

RING, CLUTCH BOSS

1J7-16385-00-00

—
Out of stock

11

PLATE, FRICTION

4H7-16321-02-00

1

$20.06

In stock

12

PLATE, PRESSURE 1

58L-16351-00-00

—

$43.83

In stock

13

SPRING, COMPRESSION

90501-217A1-00

1
Out of stock

14

SCREW, WITH WASHER(33M)

90159-06092-00

1
Out of stock

15

PLATE, CLUTCH 2

31A-16325-10-00

1
Out of stock

16

PLATE, FRICTION

4H7-16321-02-00

1

$20.06

In stock

17

WASHER, LOCK (34L)

90215-20231-00

—
Out of stock

18

NUT (34L)

90170-20327-00

—

$16.98

In stock

19

PUSH LEVER ASSY

4HM-16340-00-00

1
Out of stock

20

SPRING, TORSION

90508-16459-00

—

$5.62

In stock

21

AXLE, PUSH LEVER

4H7-16382-01-00

—

$26.68

In stock

22

PINION, RELEASE

3LD-16398-00-00

—

$22.37

In stock

23

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

24

CIRCLIP

99080-07600-00

1

$2.89

In stock

25

BEARING

93317-11096-00

—
Out of stock

26

OIL SEAL (4G0)

93102-12224-00

—
Out of stock

27

WASHER (692)

90201-12M34-00

1

$3.47

In stock

28

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

—

$31.64

In stock

29

CIRCLIP(J51)

99080-09600-00

—

$1.88

In stock

30

PLATE, THRUST

2K7-16154-00-00

—

$18.11

In stock

31

COLLAR (4H7)

90387-252A8-00

—

$11.29

In stock

32

SPACER 1

4H7-16181-00-00

—

$50.82

In stock

33

BRG,CYL-CAL ROLLER

93310-365H3-00

—

$43.83

In stock
