1985 Yamaha Maxim CA (XJ700NC) Seat Diagram

← All diagrams

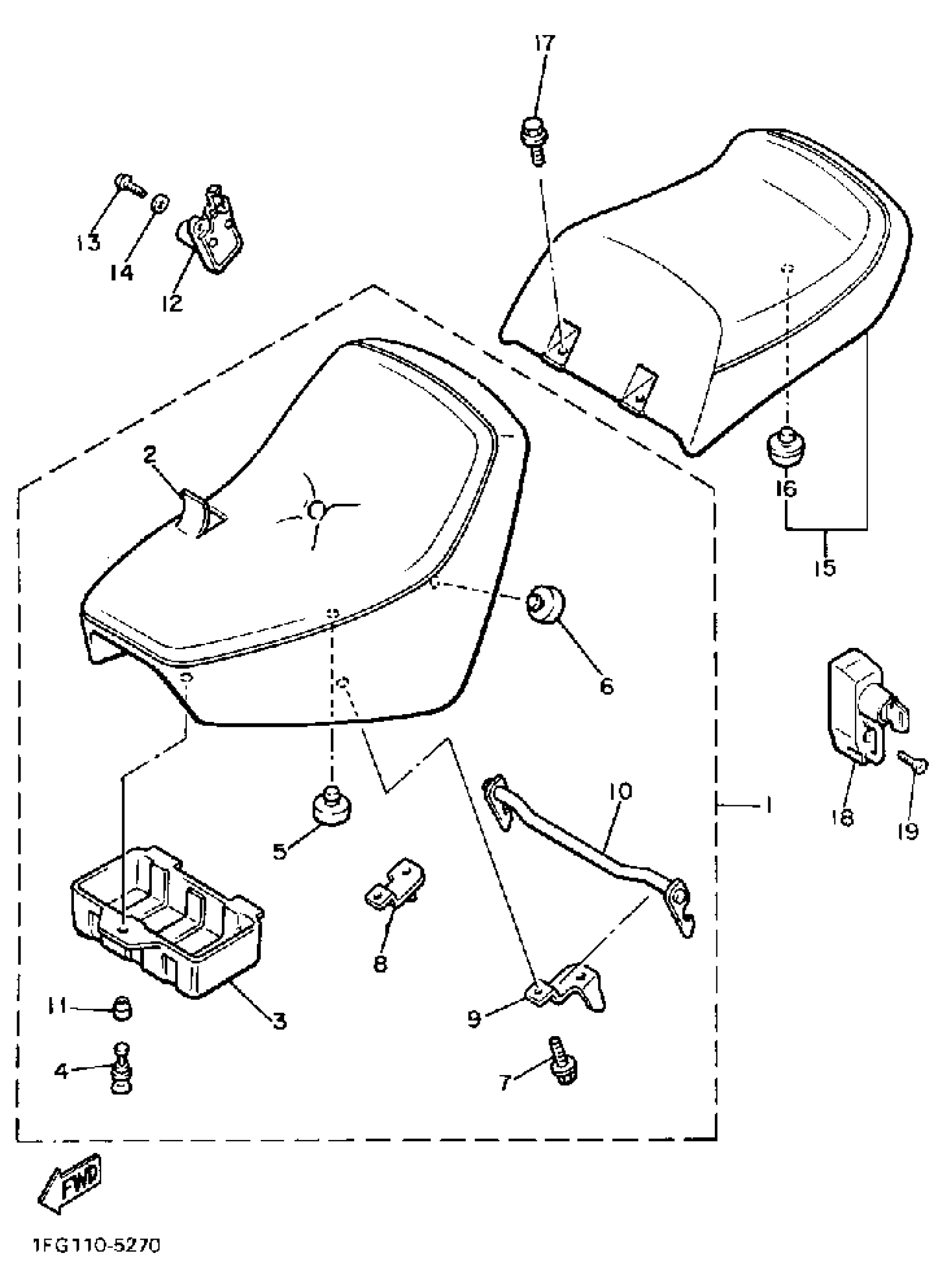

Find the part on the Seat diagram for your 1985 Yamaha Maxim CA (XJ700NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Maxim CA (XJ700NC) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY (1AA-24710-10)

1AA-24710-11-00

1
Out of stock

2

. COVER, SINGLE SEAT

1AA-24711-00-00

1
Out of stock

3

. BOX 1

1AA-2473R-00-00

1
Out of stock

4

. PLUNGER

4X7-2473V-02-00

1
Out of stock

5

STOPPER, MAIN STAND

371-27114-00-00

1

$5.80

In stock

6

PAD, SEAT

22W-24741-00-00

1

$7.72

In stock

7

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

8

BRACKET, SEAT

(1AA-24738-00-00)

1
Out of stock

9

BRACKET, SEAT

(1AA-24728-00-00)

1
Out of stock

10

. LEVER, SEAT

1AA-24776-00-00

1
Out of stock

11

. GROMMET

4X7-24742-02-00

1
Out of stock

12

SEAT LOCK ASSEMBLY (10L-24705-00)

23W-24705-00-00

1
Out of stock

13

SCREW, PAN HEAD(3TJ)

98507-06016-00

1

$2.43

In stock

14

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

15

TANDEM SEAT ASSEMBLY

1NH-24750-00-00

1
Out of stock

16

PAD, SEAT

1L9-24741-00-00

—

$8.91

In stock

17

BOLT, WITH WASHER

90119-06226-00

—

$2.15

In stock

18

HELMET HANGER ASSY

26H-21308-01-00

—

$74.80

In stock

19

SCREW (4G1)

90149-06154-00

—

$6.91

In stock
