1985 Yamaha Maxim CA (XJ700NC) Fender Diagram

← All diagrams

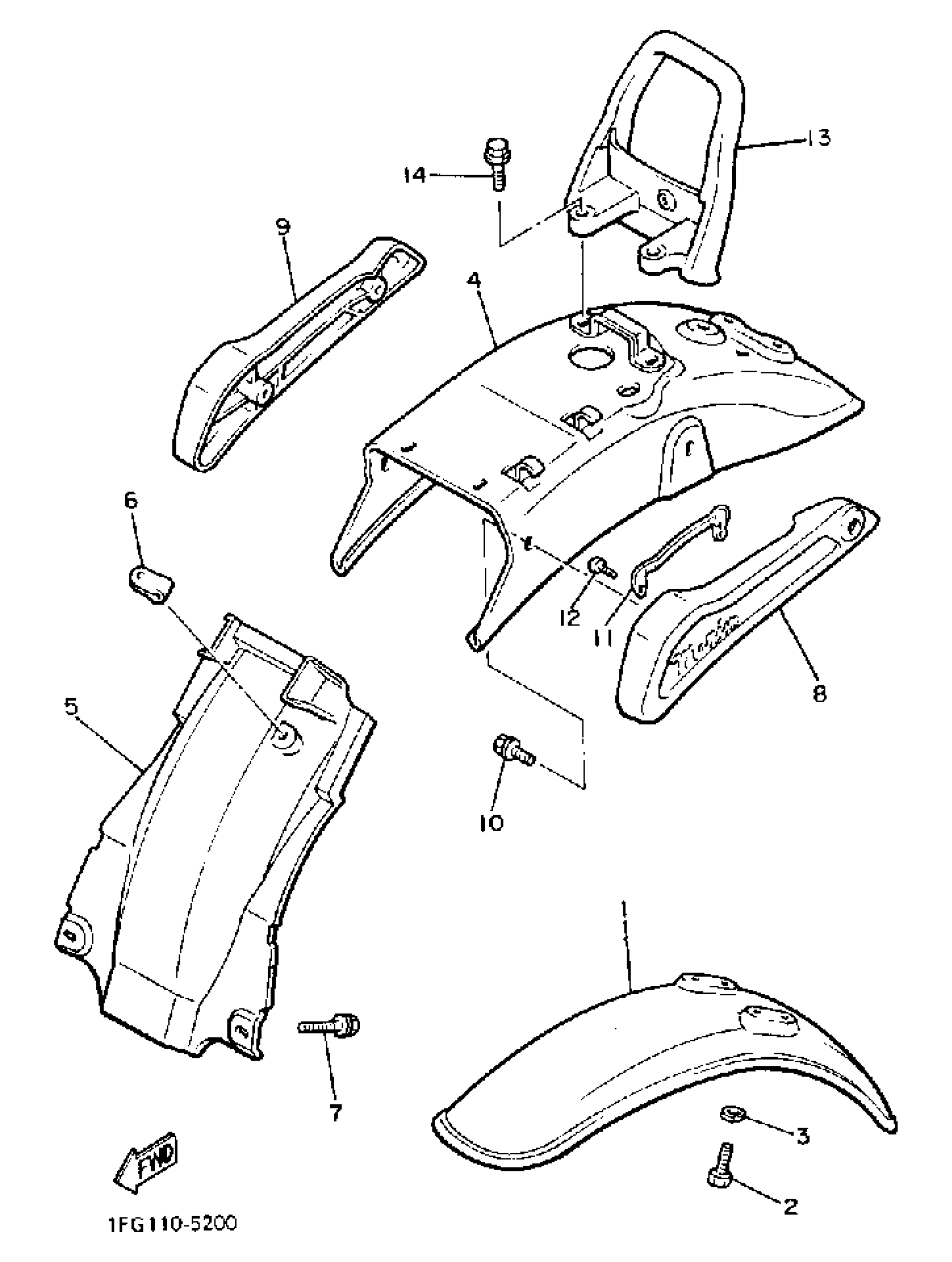

Find the part on the Fender diagram for your 1985 Yamaha Maxim CA (XJ700NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Maxim CA (XJ700NC) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONTCOMP

42X-21510-00-63

1
Out of stock

1

FRONT FENDER COMP.

1MY-21510-00-33

1
Out of stock

2

BOLT (661)

97013-06012-00

1

$4.71

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

FENDER, REARCOMP

1AA-21610-00-2U

1
Out of stock

4

FENDER, REAR

1AA-21610-00-6G

1
Out of stock

5

GUARD, MUD

1AA-21629-00-00

1
Out of stock

6

CLAMP (1J7)

90464-16021-00

1

$10.86

In stock

7

UNAVAILABLE IN PRICE BOOK

90-11906-09-50

1
Out of stock

8

STAY, FENDER 1

1FG-21613-00-00

1
Out of stock

9

STAY, FENDER 2

1AA-21614-00-00

1
Out of stock

10

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

11

CLAMP, WIRE

(1AA-21637-00-00)

1
Out of stock

12

SCREW, PAN TAP.2

97707-40506-00

1

$2.71

In stock

13

GRIP 1

1AA-2164A-00-00

1
Out of stock

14

BOLT, FLANGE

95817-10030-00

—

$6.17

In stock
