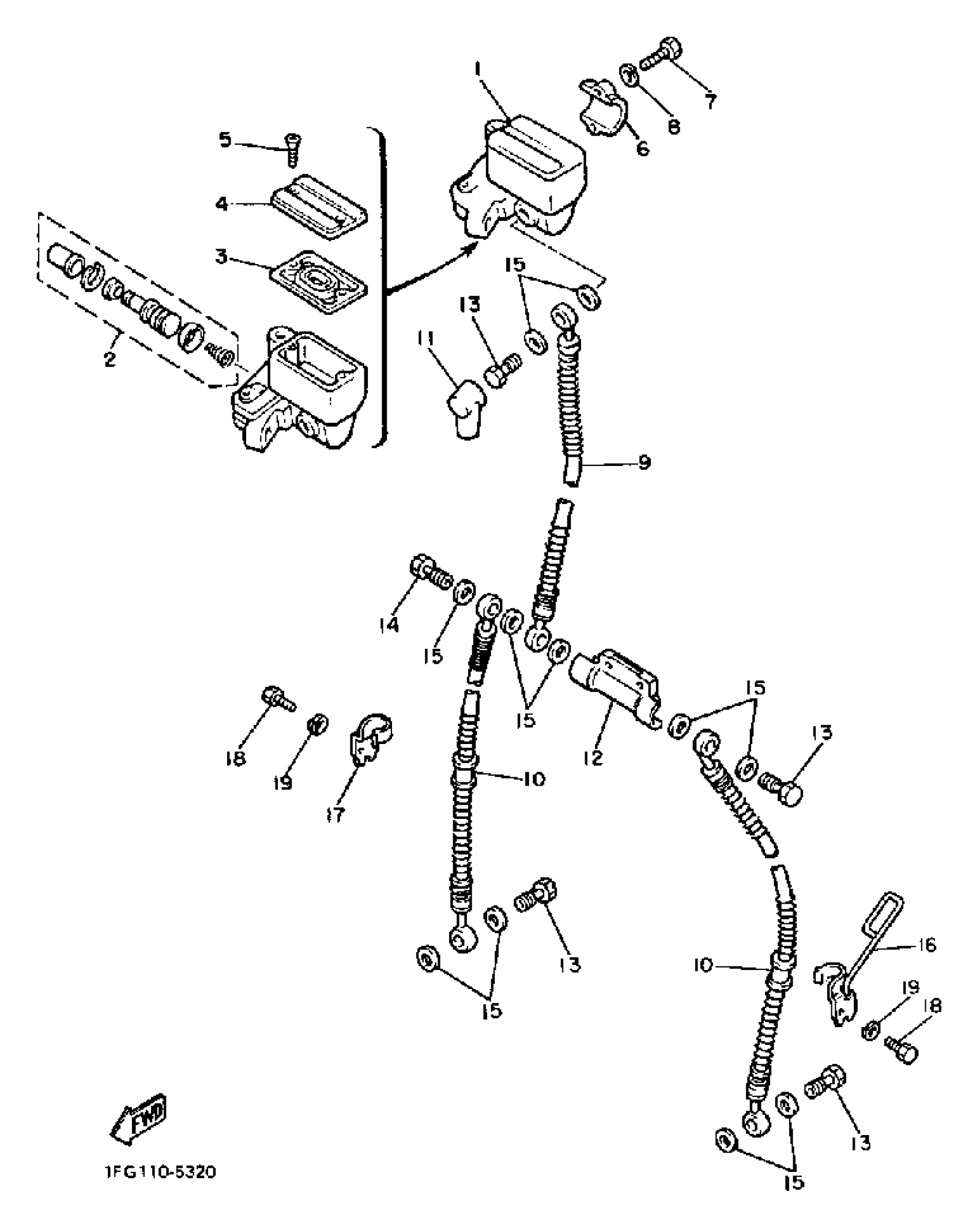

Yamaha XJ700NC (MAXIM CA) 1985 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER ASSY

4G0-25850-01-00

Unavailable

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

DIAPHRAGM, RESERVOIR

4HM-25854-00-00

$35.99

CAP, RESERVOIR

3GM-25852-02-00

$57.99

SCREW, FLAT

98707-04012-00

$2.18

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

BOLT, HEXAGON

97017-06025-00

$4.24

WASHER, SPRING

92907-06100-00

$4.25

HOSE, BRAKE 1

99999-02795-00

Unavailable

HOSE,BRAKE 2

99999-02796-00

Unavailable

BOOT, MASTER CYLINDER

306-25862-00-00

$48.99

JOINT

1AA-25885-00-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

$11.49

BOLT, UNION

90401-10038-00

$12.49

WASHER, PLATE(481)

90201-10118-00

Unavailable

HOLDER, BRAKE HOSE 1

42X-25875-00-00

Unavailable

HOLDER, BRAKE HOSE 2

42X-25876-00-00

Unavailable

BOLT(3JP)

97017-06010-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable
