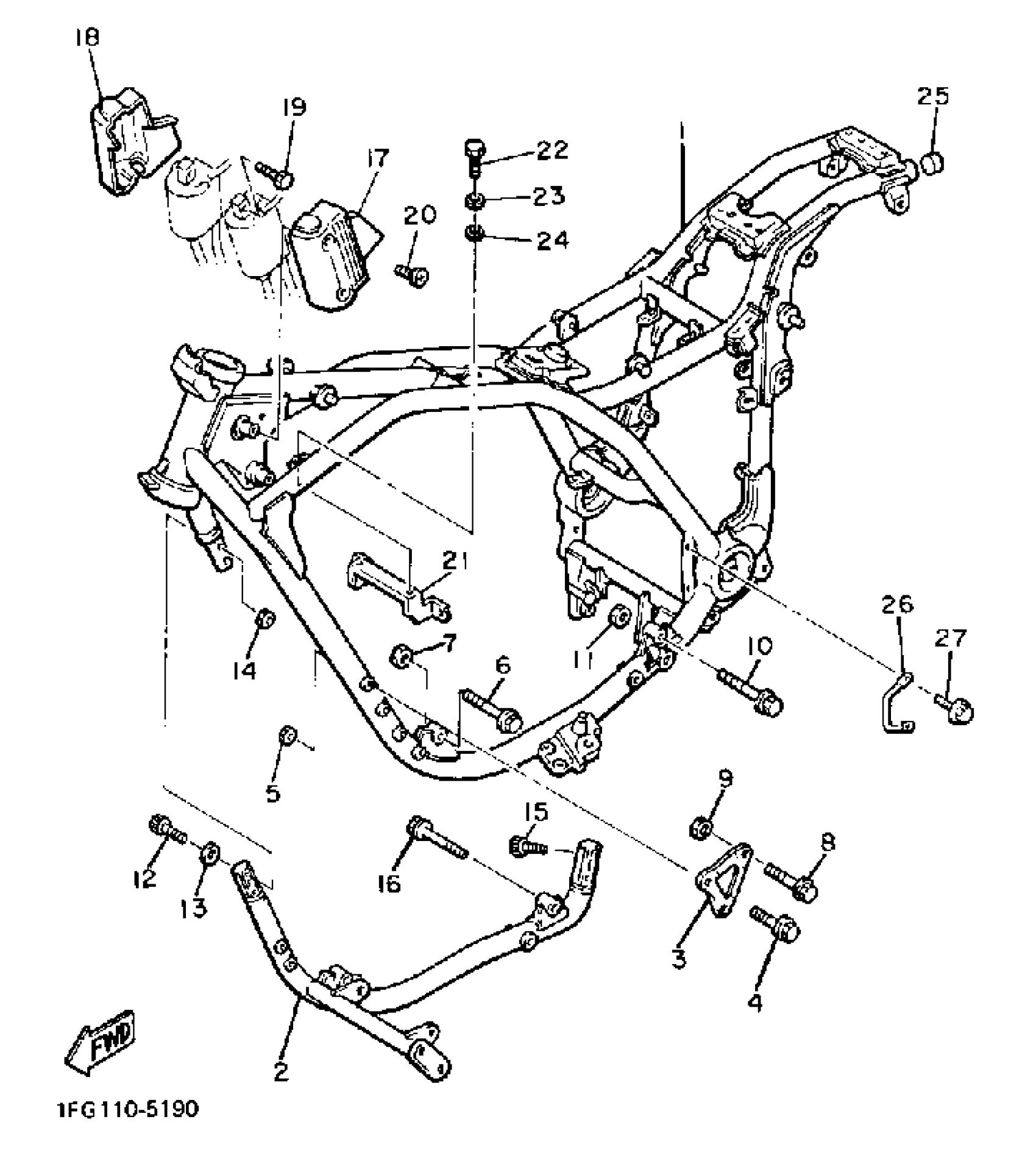

Yamaha XJ700NC (MAXIM CA) 1985 FRAME Diagram

#

Description
Price

1

FRAME

1FG-21110-00-33

Unavailable

2

TUBE, DOWN

(1FG-21140-00-33)

Unavailable

3

STAY, ENGINE 2

1AA-21315-00-33

Unavailable

4

BOLT, WASHER BASED

90105-084A1-00

$10.49

5

NUT(55X)

90179-08491-00

$8.49

6

BOLT, WASHER BASED

90105-10476-00

Unavailable

7

NUT

90179-10321-00

Unavailable

8

BOLT, WASHER BASED(59V)

90105-10392-00

$11.49

9

NUT

90179-10321-00

Unavailable

10

BOLT, WASHER BASED

90105-12274-00

Unavailable

11

NUT(3EF)

90179-12657-00

$5.60

12

BOLT, SOCKET

91317-08030-00

$8.49

13

WASHER(6TA)

92907-08600-00

$3.03

14

NUT, U

95617-08100-00

$9.49

15

BOLT, SOCKET

91317-08025-00

$8.49

16

BOLT, WASHER BASED

90105-084A1-00

$10.49

17

COVER 2

1FG-2139R-00-00

Unavailable

18

COVER

1FG-2139W-00-00

Unavailable

19

BOLT

90109-065A6-00

Unavailable

20

SCREW, BIND

98903-05010-00

Unavailable

21

STAY, HORN

1FG-2134Y-00-00

Unavailable

22

BOLT, HEXAGON

97017-08020-00

Unavailable

23

WASHER(JN5)

92907-08100-00

Unavailable

24

WASHER(6TA)

92907-08600-00

$3.03

25

PLUG

3YJ-24481-00-00

Unavailable

26

PROTECTOR

1AA-2117G-00-00

Unavailable

27

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
