1985 Yamaha Maxim CA (XJ700NC) Exhaust Diagram

← All diagrams

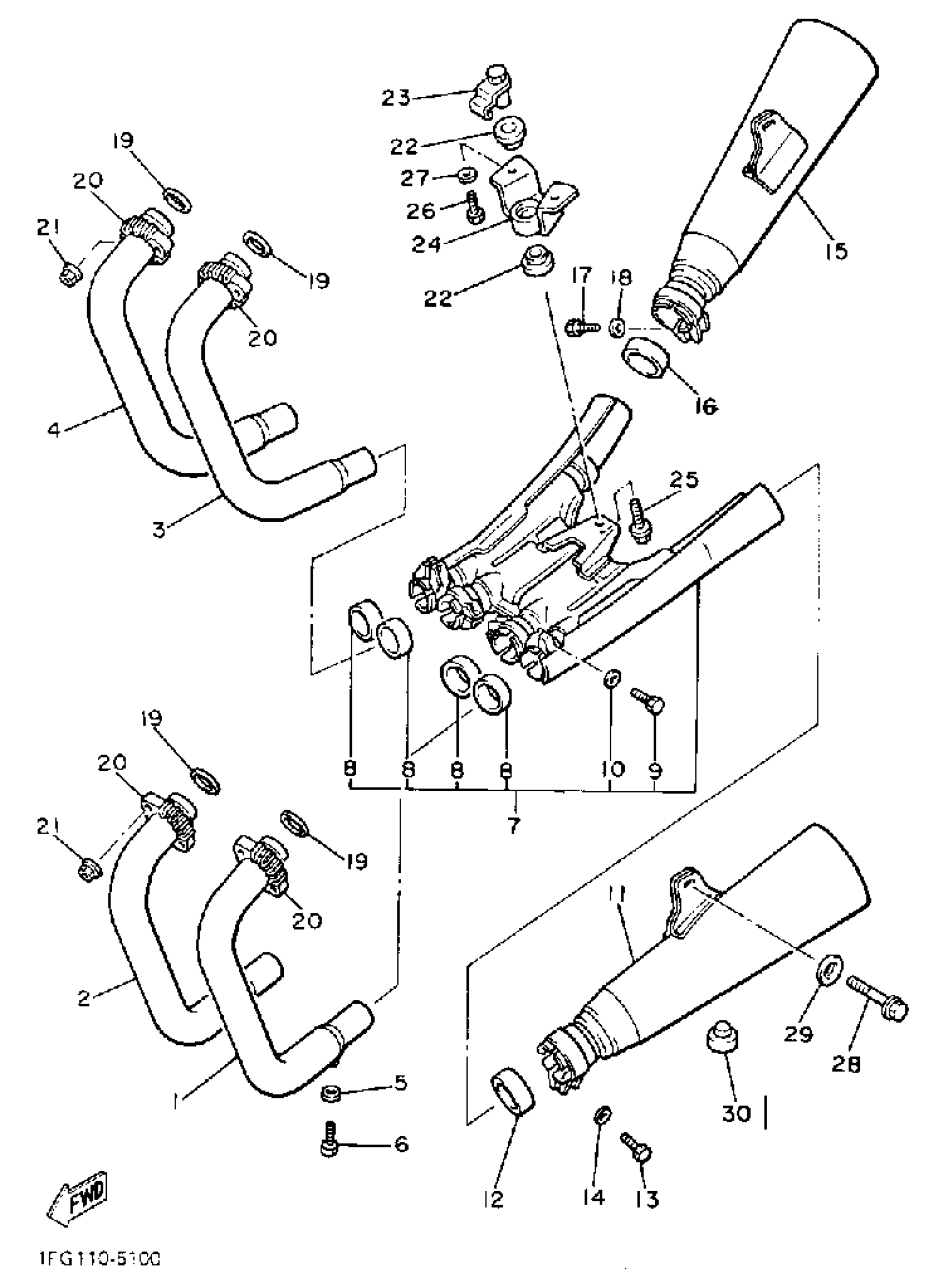

Find the part on the Exhaust diagram for your 1985 Yamaha Maxim CA (XJ700NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Maxim CA (XJ700NC) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST L

1FG-14611-01-00

1
Out of stock

2

PIPE, EXHAUST R

1FG-14621-01-00

1
Out of stock

3

PIPE, EXHAUST 3

1FG-14631-01-00

1
Out of stock

4

PIPE, EXHAUST 4

1FG-14641-01-00

1
Out of stock

5

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

6

BOLT (11T)

90101-06576-00

1
Out of stock

7

EXHAUST PIPE ASSEMBLY L

1FG-14610-00-00

1
Out of stock

8

GASKET, MUFFLER

3YF-14714-00-00

1
Out of stock

9

BOLT, HEXAGON

97017-08025-00

1
Out of stock

10

WASHER(6TA)

92907-08600-00

1
Out of stock

11

MUFFLER ASSEMBLY L

1NW-14710-00-00

1
Out of stock

12

GASKET, SILENCER

3XW-14755-00-00

—
Out of stock

13

BOLT (682)

97013-08025-00

1
Out of stock

14

.. WASHER, PLATE

92990-08600-00

1
Out of stock

15

UNAVAILABLE IN PRICE BOOK (1FG-14721-00)

1NH-14721-00-00

1
Out of stock

16

GASKET, SILENCER

3XW-14755-00-00

—
Out of stock

17

BOLT (682)

97013-08025-00

1
Out of stock

18

.. WASHER, PLATE

92990-08600-00

1
Out of stock

19

GASKET, EXHAUST PIPE

4BR-14613-00-00

—
Out of stock

20

NUT, RING

5G2-14612-00-00

1
Out of stock

21

NUT (1AE)

90179-06500-00

—
Out of stock

22

DAMPER, MUFFLER

36Y-14747-00-00

—
Out of stock

23

COLLAR

1AE-14638-00-00

1
Out of stock

24

STAY, MUFFLER

(1AA-14791-01-00)

1
Out of stock

25

BOLT, FLANGE

95814-10040-00

—
Out of stock

26

BOLT (682)

97013-08025-00

1
Out of stock

27

.. WASHER, PLATE

92990-08600-00

1
Out of stock

28

BOLT, FLANGE

95817-08040-00

—
Out of stock

29

WASHER (29L)

90209-08249-00

—
Out of stock

30

STOPPER, MAIN STAND

1A0-27114-00-00

—
Out of stock
