CRANKCASE

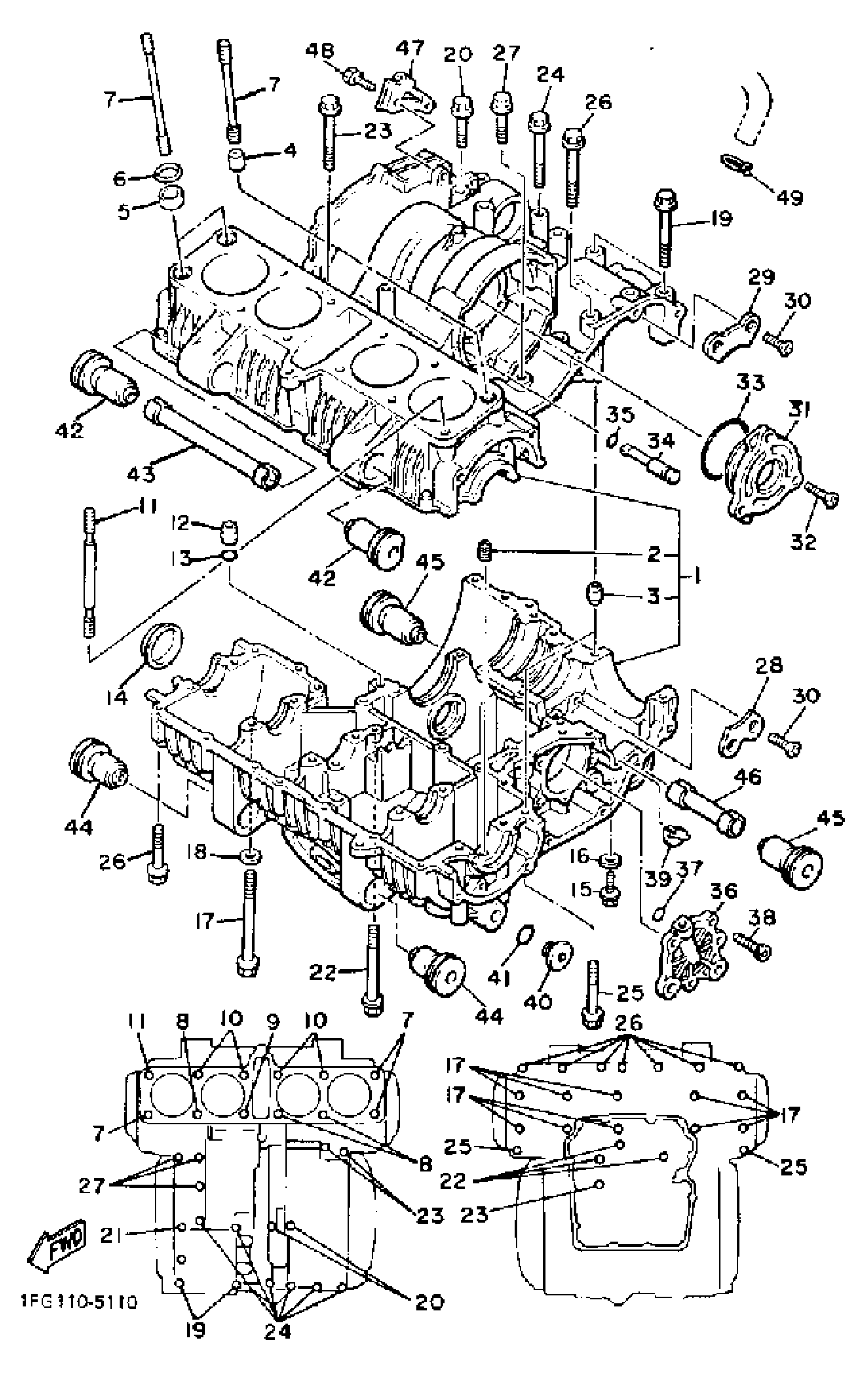

1985 Yamaha Maxim CA (XJ700NC) Crankcase Diagram
Find the part on the Crankcase diagram for your 1985 Yamaha Maxim CA (XJ700NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CRANKCASE ASSEMBLY
4H7-15100-03-00
2
NOZZLE
4KM-13572-01-00
11
BOLT, CYLINDER HOLDING 4
4H7-11364-00-00
12
UNAVAILABLE IN PRICE BOOK
99510-22016-00
20
BOLT, FLANGE
95817-06135-00
21
BOLT, FLANGE
95817-06120-00
22
BOLT, FLANGE
95817-06080-00
23
BOLT, FLANGE
95817-06070-00
24
BOLT, FLANGE
95817-06060-00
28
UNAVAILABLE IN PRICE BOOK
31-A1538-10-0]
31
HOUSING, BEARING 1
4H7-15163-01-00
34
NOZZLE
4H7-13454-00-00
36
HOUSING, BEARING 2
16G-15164-00-00
39
GROMMET
4H7-15365-00-00
40
PLUG
4H7-15189-00-00
41
O-RING (25G)
93210-20573-00
42
DAMPER, ENGINE MOUNT 3
1AA-15336-01-00
43
SPACER, ENG MOUNT (4W5-15317-00)
4H7-15317-00-00
45
DAMPER, ENGINE MOUNT 2
1AA-15326-00-00
46
SPACER, ENG MOUNT (4W5-15327-00)
4H7-15327-00-00
47
HOLDER, CLUTCH CABLE
4H7-15441-01-00
49
CLAMP
90465-10290-00
