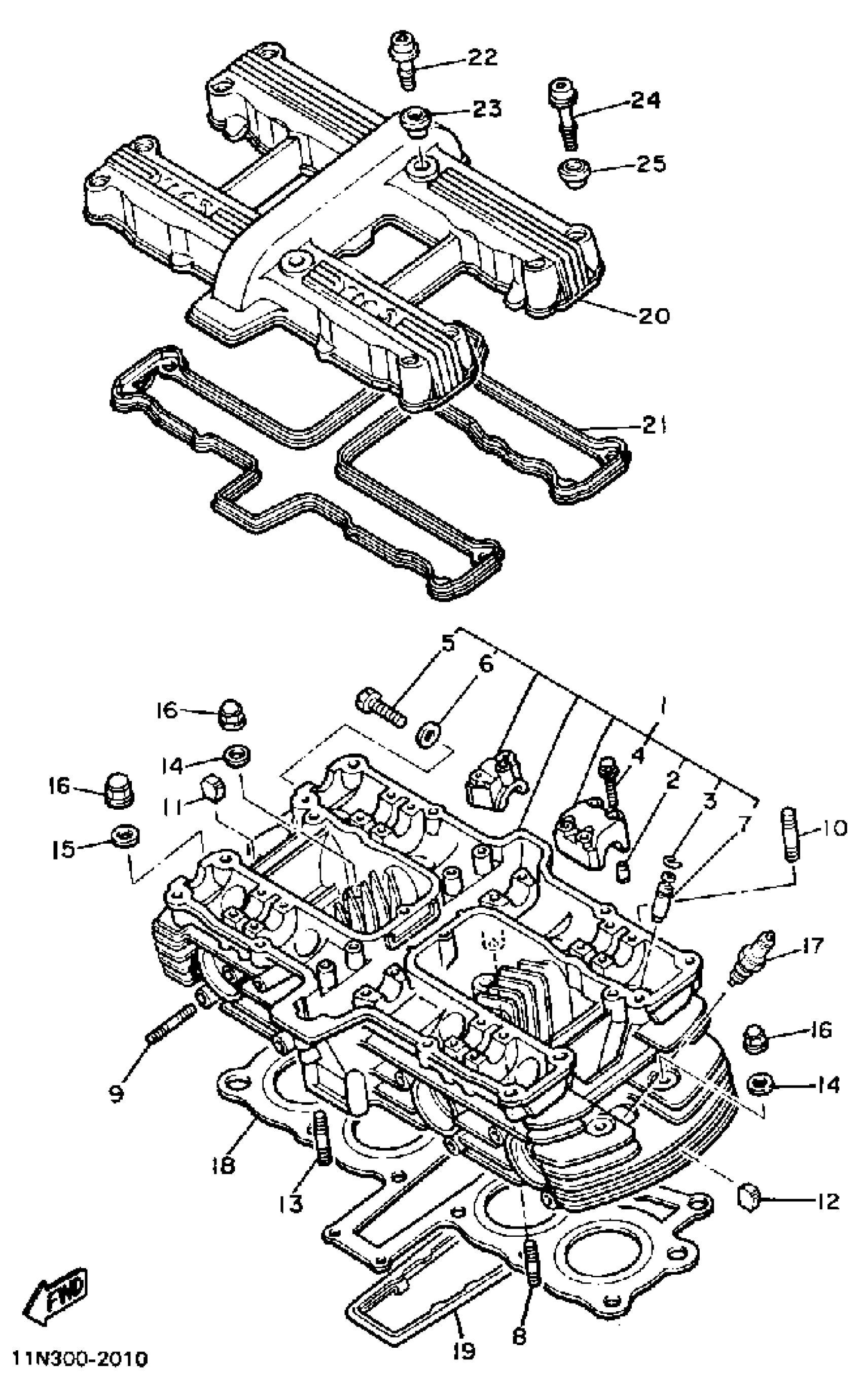

Yamaha XJ700NC (MAXIM CA) 1985 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(41Y-11101-01-00)

Unavailable

2

PIN, DOWEL(3XW)

91808-16023-00

$8.49

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

5

SCREW

90153-06029-00

$10.49

6

GASKET 256113960000

90430-06014-00

Unavailable

7

GUIDE, INTAKE VALVE

4H7-11133-11-00

$50.99

8

BOLT, STUD 3

95617-06625-00

$8.49

9

BOLT, STUD(1FW)

90116-06466-00

$4.51

10

BOLT, STUD 2

95617-08330-00

$10.49

11

ABSORBER

434-11161-00-00

Unavailable

12

ABSORBER 1

4H7-11161-00-00

$3.48

13

BOLT, STUD(1FW)

90116-06466-00

$4.51

14

WASHER PLATE 256111740000

90201-10131-00

$9.49

15

WASHER PLATE 341839090000

90201-10128-00

$4.82

16

NUT, CROWN(2GG)

90176-10075-00

Unavailable

17

BPR8ES NGK SPLUG 4PK

BPR-8ES00-00-00

Unavailable

18

GSKT,CYLDR HD

1FG-11181-10-00

Unavailable

19

SEAL, CYLINDER 1

5G2-11355-00-00

Unavailable

20

COVER, CYLINDER.HEAD 1

5G2-11191-10-00

Unavailable

21

GASKET, HEAD COVER 1

5G2-11193-00-00

Unavailable

22

BOLT (4V8)

90109-06604-00

Unavailable

23

RUBBER, MOUNT 1

4G0-1111G-00-00

Unavailable

24

BOLT (4V8)

90109-06605-00

Unavailable

25

RUBBER, MOUNT 2

4U8-1112G-00-00

Unavailable
