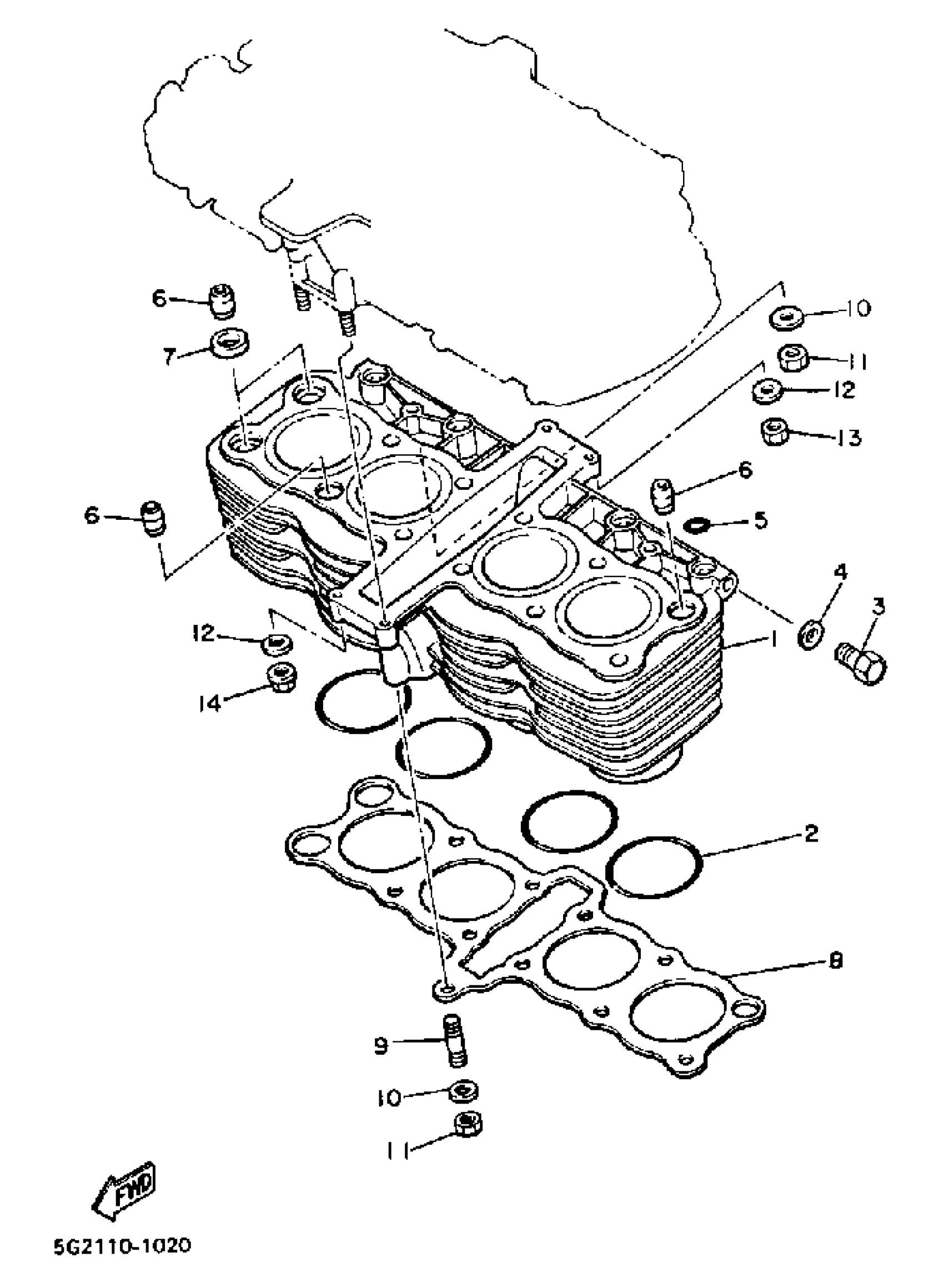

Yamaha XJ700NC (MAXIM CA) 1985 CYLINDER Diagram

#

Description
Price

1

CYLINDER

(1FG-11310-00-00)

Unavailable

2

O-RING (5G2)

93210-71462-00

$16.99

3

PLUG, STRAIGHT SCRW

90340-12062-00

Unavailable

4

WASHER, PLATE

90201-12790-00

$9.49

5

O-RING (4U8)

93210-09443-00

$2.07

6

PIN, DOWEL

99530-14016-00

$3.80

7

GASKET (1L9)

90430-14131-00

$8.49

8

GASKET, CYLINDER

4BB-11351-00-00

Unavailable

9

BOLT, STUD 2

95617-08330-00

$10.49

10

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

11

NUT(6L2)

95333-08600-00

$2.49

12

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

13

NUT(6TA)

95317-06600-00

$3.55

14

NUT (1AE)

90179-06500-00

$7.49
