CRANKSHAFT PISTON

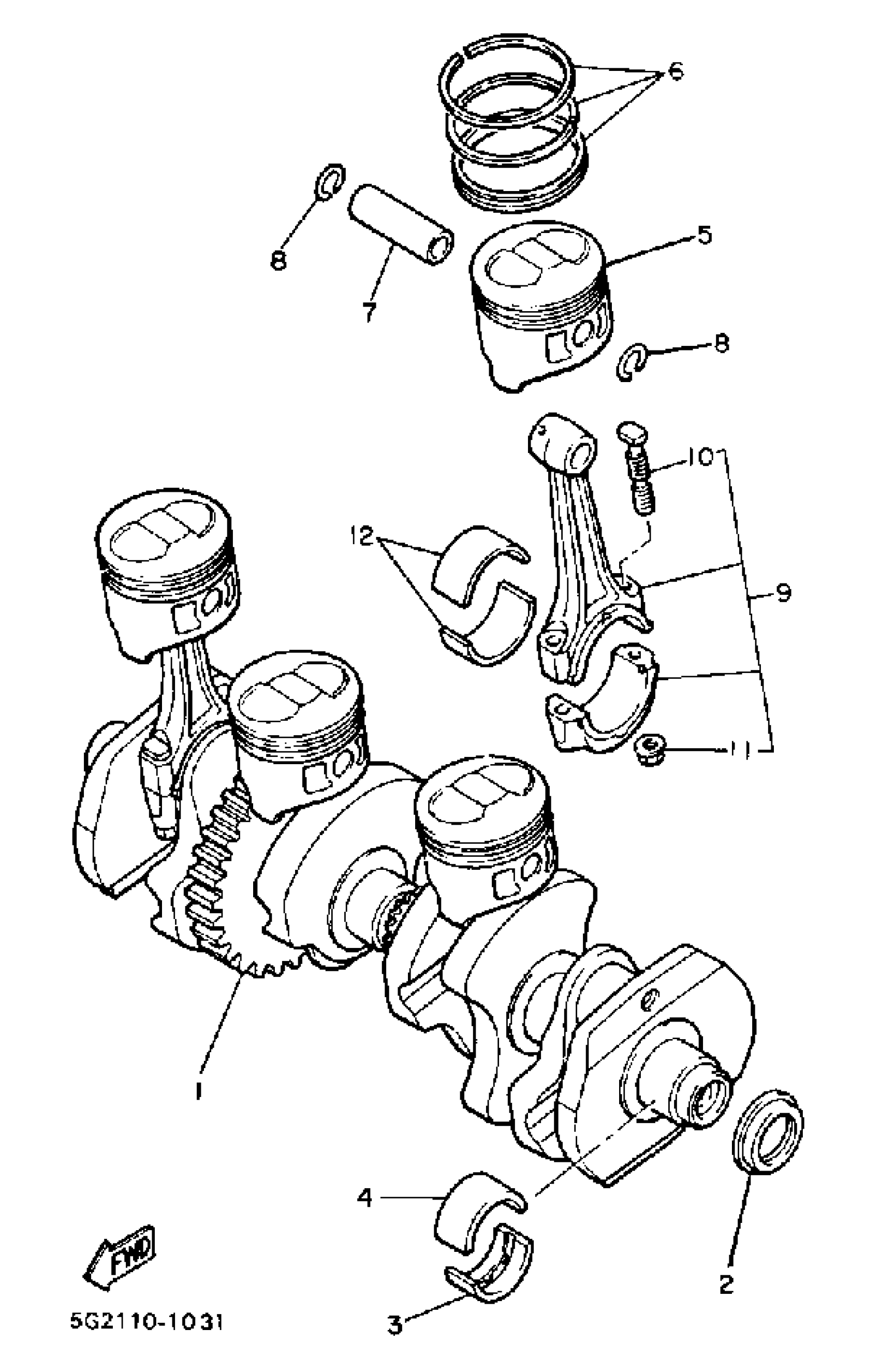

Yamaha XJ700NC (MAXIM CA) 1985 CRANKSHAFT PISTON Diagram
#
Description
Price
1
CRANKSHAFT
16G-11411-00-00
Unavailable
3
PLANE BRNG, CRSF 1
4H7-11416-01-00
Unavailable
3
PLANE BRNG, CRSF 1
4H7-11416-11-00
Unavailable
3
PLANE BRNG, CRSF 1
4H7-11416-21-00
Unavailable
3
PLANE BRNG, CRSF 1
4H7-11416-31-00
Unavailable
3
PLANE BRNG, CRSF 1
4H7-11416-41-00
Unavailable
4
PLANE BRNG, CRSF 1
4H7-11416-01-00
Unavailable
4
PLANE BRNG, CRSF 1
4H7-11416-11-00
Unavailable
4
PLANE BRNG, CRSF 1
4H7-11416-21-00
Unavailable
4
PLANE BRNG, CRSF 1
4H7-11416-31-00
Unavailable
4
PLANE BRNG, CRSF 1
4H7-11416-41-00
Unavailable
5
PISTON STD (STD)
1FG-11631-00-00
Unavailable
5
PISTON 2 O/S 0.50 (0.50MM O/S)
1FG-11636-00-00
Unavailable
5
PISTON 4 O/S 1.00
(1FG-11638-00-00)
Unavailable
6
PISTON RING SET (STD)
1FG-11610-00-00
Unavailable
6
PISTON RING SET (2ND O/S)
1FG-11610-20-00
Unavailable
6
PISTON RING SET
(1FG-11610-40-00)
Unavailable
7
PIN, PISTON
4H7-11633-00-00
Unavailable
8
CIRCLIP (1L9)
93450-17044-00
Unavailable
9
CONNECTING ROD ASSEMBLY
1FG-Y1165-00-00
Unavailable
10
BOLT, CONNECTING ROD
4H7-11654-00-00
Unavailable
11
NUT (4H7)
90179-07307-00
Unavailable
12
PLANE BEARING, CONNECTING ROD
31A-11656-00-00
Unavailable
12
PLANE BEARING, CONNECTING ROD
31A-11656-10-00
Unavailable
12
PLANE BEARING, CONNECTING ROD
31A-11656-20-00
Unavailable
12
PLANE BEARING, CONNECTING ROD
31A-11656-30-00
Unavailable
