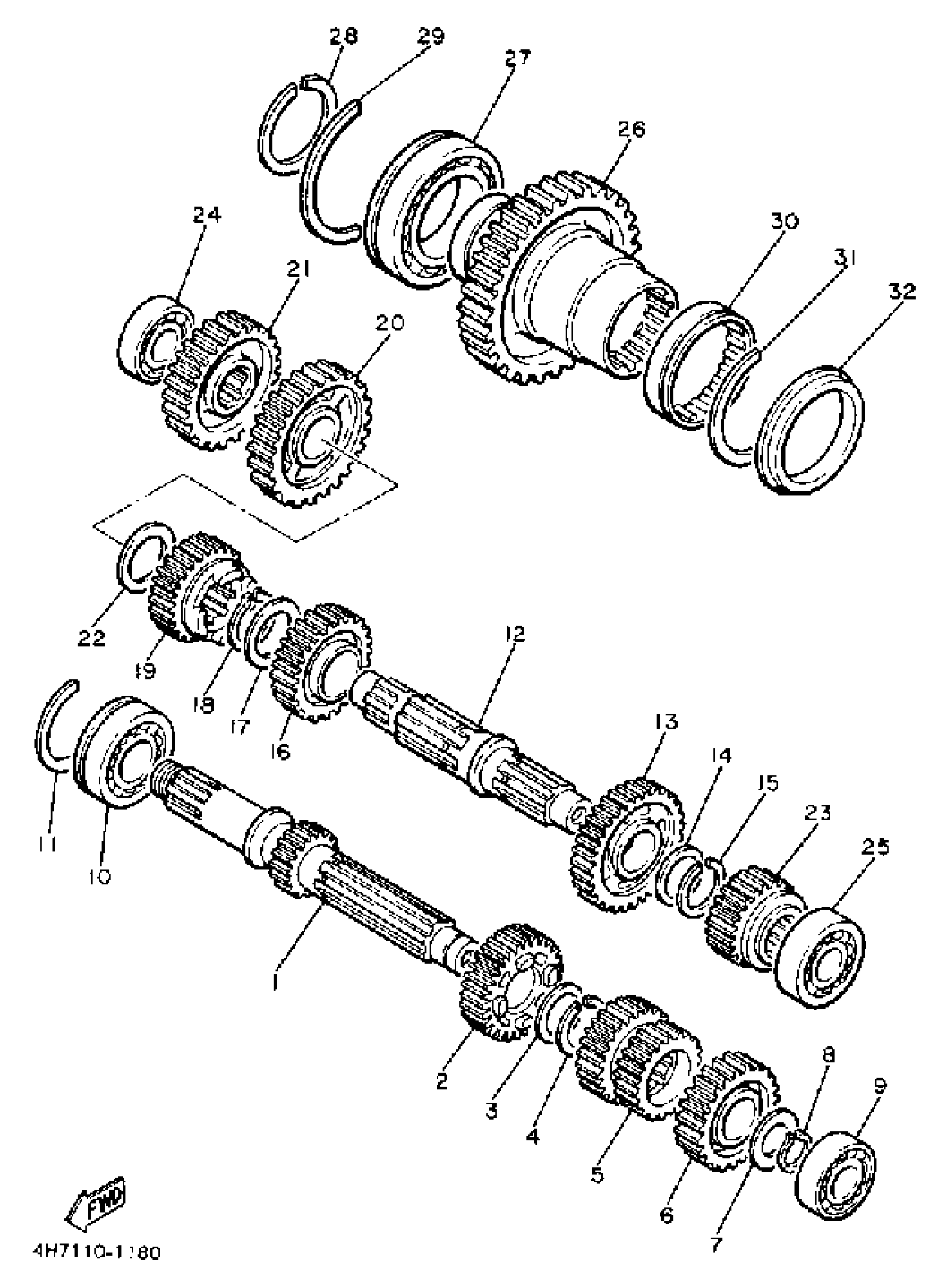

Yamaha XJ650RJ (XJ650R) 1982 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE ASSEMBLY

4H7-17401-00-00

Unavailable

2

GEAR, 4TH PINION

4H7-17141-00-00

Unavailable

3

WASHER (3J3)

90209-22191-00

$7.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 2ND PINION

4BB-17121-00-00

Unavailable

6

GEAR, 5TH PINION

4KM-17151-00-00

Unavailable

7

WASHER PLATE 328171160000

90201-20276-00

$8.49

8

CIRCLIP(1AR)

99009-20400-00

$8.49

9

BEARING(1GJ)

93306-20458-00

$43.99

10

BEARING(1WG)

93306-30550-00

$63.99

11

CIRCLIP

278-17424-01-00

$21.99

12

DRIVE AXLE ASSEMBLY

4H7-17402-01-00

Unavailable

13

GEAR, 2ND WHEEL (30T)

99999-02204-00

Unavailable

14

WASHER (3J3)

90209-22191-00

$7.49

15

CIRCLIP (4L0)

93440-25084-00

$5.60

16

GEAR, 3RD WHEEL

4KM-17231-01-00

Unavailable

17

WASHER (4H7)

90209-25196-00

Unavailable

18

CIRCLIP (2H7)

93440-28062-00

Unavailable

19

GEAR, 4TH WHEEL

4H7-17241-00-00

Unavailable

20

GEAR, 1ST WHEEL

4KM-17211-00-00

Unavailable

21

GEAR, MIDDLE DRIVE

4H7-17582-00-00

Unavailable

22

WASHER, PLATE (4H7)

90201-243A2-00

Unavailable

23

GEAR, 5TH WHEEL

16G-17251-00-00

Unavailable

24

BRG,R-B 6303 47MM 115G NK

93306-30302-00

Unavailable

25

BEARING (83A581A)

93306-30425-00

Unavailable

26

GEAR, MIDDLE DRIVEN

(4H7-17583-00-00)

Unavailable

27

BRG R-B 6911 80MM 176G NT

93306-91101-00

Unavailable

28

CIRCLIP(4BB)

99009-55400-00

Unavailable

29

CIRCLIP (4H7)

93440-80082-00

Unavailable

30

BRG,CYL-CAL ROLLER 100G KY

93311-36042-00

Unavailable

31

CIRCLIP (1J7)

93440-72049-00

Unavailable

32

OIL SEAL, SO-TYPE

93104-60066-00

Unavailable
