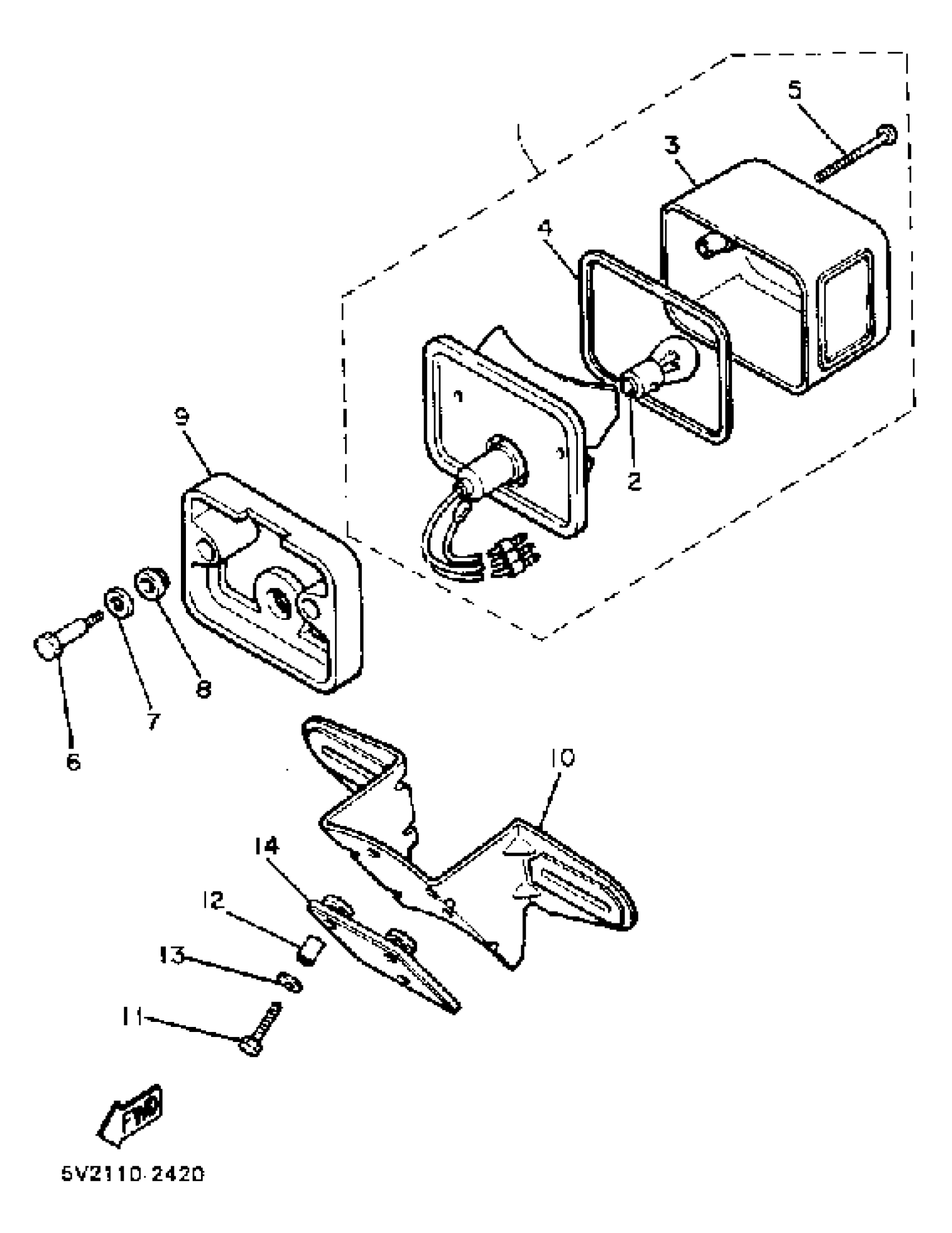

Yamaha XJ650RJ (XJ650R) 1982 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

1W9-84710-61-00

$91.19

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

LENS, TAIL LAMP

1M1-84521-60-00

$34.25

4

GASKET, TAIL LENS

1M1-84523-60-00

$10.29

5

SCREW, ADJUSTING

5BF-8433E-00-00

$5.70

6

BOLT

90109-06256-00

Unavailable

7

WASHER, SPECIAL

2H7-84754-00-00

$9.70

8

DAMPER

1M1-84527-60-00

$7.03

9

SEAT, BASE

(5V2-84512-00-00)

Unavailable

10

BRACKET, LICENSE

5V2-84751-00-33

Unavailable

11

BOLT, HEXAGON

97017-06025-00

$2.78

12

SPACER

90560-07007-00

$6.12

13

WASHER PLATE 248217570000

90201-06074-00

$5.86

14

DAMPER, TAIL

(4K0-84736-00-00)

Unavailable
