1982 Yamaha XJ650R (XJ650RJ) Headlight Diagram

← All diagrams

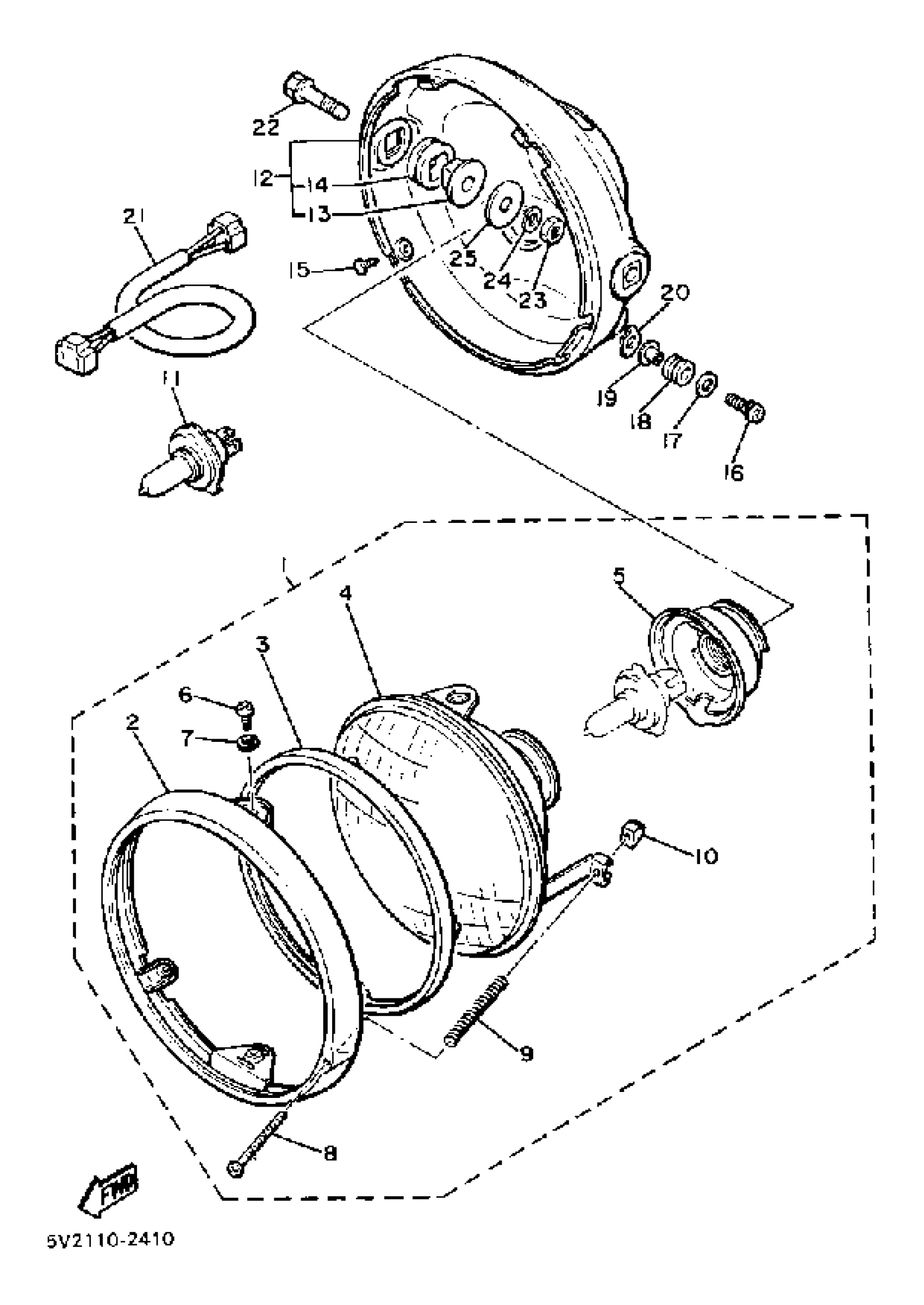

Find the part on the Headlight diagram for your 1982 Yamaha XJ650R (XJ650RJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XJ650R (XJ650RJ) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY (5H1-84303-A0)

5H1-84303-A1-00

1
Out of stock

2

. RIM, HEADLIGHT

5A8-84315-00-00

1
Out of stock

3

. RING, RETAINING

4E2-84395-00-00

1
Out of stock

4

. LENS, HEADLIGHT (5H1-84321-A0)

5H1-84321-A1-00

1
Out of stock

5

. COVER, SOCKET

4E2-84397-00-00

1
Out of stock

6

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

. SCREW, RIM ADJUSTING

447-84331-61-00

1
Out of stock

9

SPRING, COMPRESSION (ITALY)

447-84332-60-00

1

$9.22

In stock

10

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

11

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

12

BODY ASSEMBLY

5G9-84330-00-33

1
Out of stock

13

COLLAR 2

584-84338-60-00

1
Out of stock

14

DAMPER, HEAD LAMP

584-84345-60-00

1
Out of stock

15

SCREW, OVAL HEAD (1A0)

90152-05005-00

1

$2.82

In stock

16

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

17

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

18

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

19

COLLAR

90387-06158-00

—

$6.17

In stock

20

WASHER, SPECIAL

4K0-84327-00-00

1
Out of stock

21

CORD, HEADLIGHT

2H7-84359-00-00

1
Out of stock

22

BOLT

90109-08448-00

1
Out of stock

23

NUT(6L2)

95333-08600-00

—

$3.20

In stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

25

WASHER

90209-08008-00

—
Out of stock
