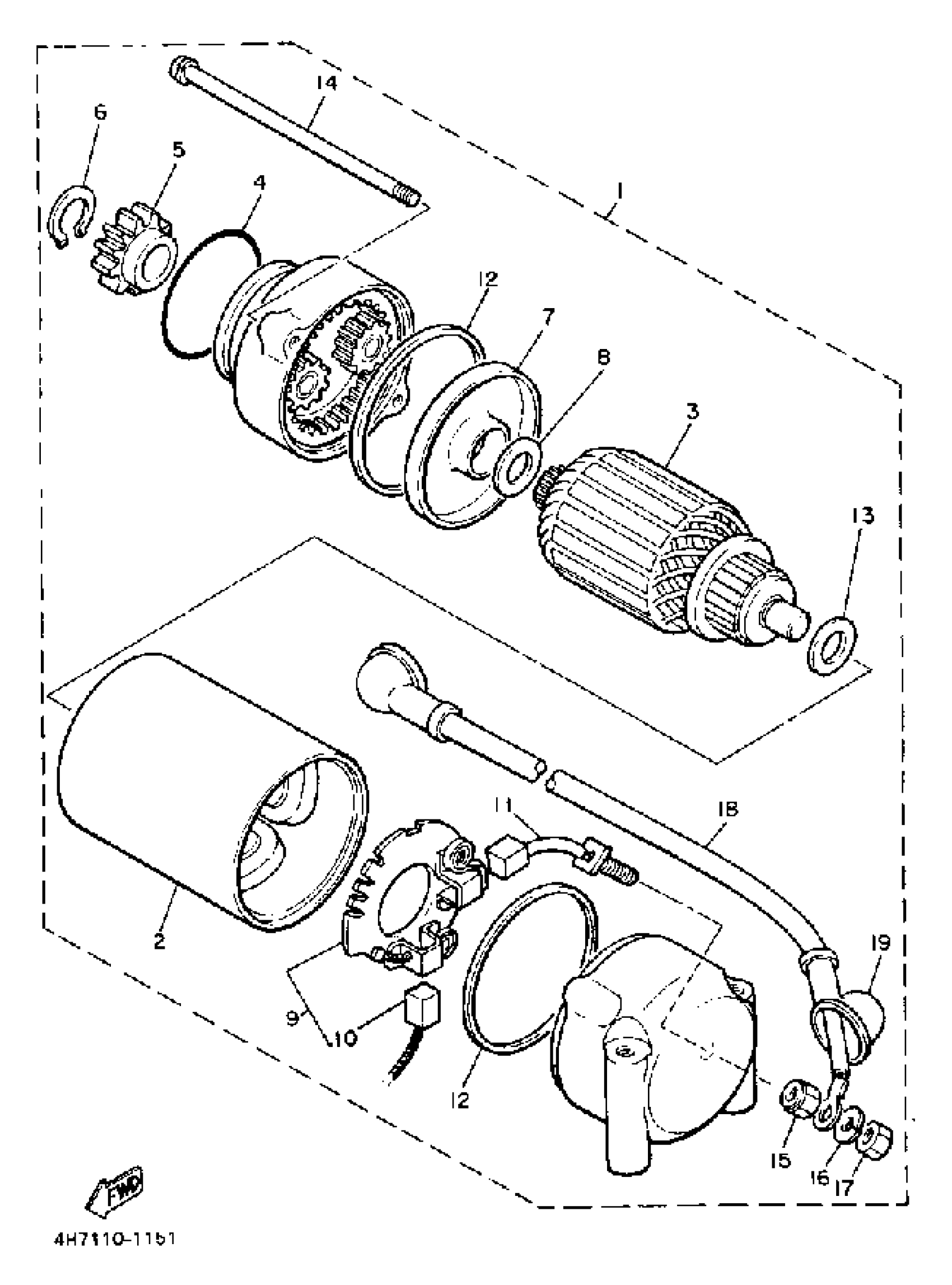

Yamaha XJ650RJ (XJ650R) 1982 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR UNIT

4BB-81890-00-00

$683.99

2

STATOR ASSEMBLY

(4K0-81810-01-00)

Unavailable

3

ARMATURE ASSY

4H7-81850-00-00

$296.99

4

O-RING

4H7-81847-01-00

Unavailable

5

. GEAR, STARTING MOTOR

4H7-15511-01-00

Unavailable

6

. CIRCLIP

4H7-81819-00-00

Unavailable

7

PLATE

(4H7-81845-00-00)

Unavailable

8

WASHER 1

4H7-81843-50-00

$3.90

9

BRUSH HOLDER ASSY

4H7-81840-01-00

$82.99

10

BRUSH, STARTER

4H7-81811-00-00

$13.49

11

BRUSH SUB-ASSY, STARTOR

2JN-81818-50-00

$29.99

12

O-RING

4H7-81844-00-00

Unavailable

13

WASHER 2

(4H7-81824-00-00)

Unavailable

14

BOLT

(4K0-81826-01-00)

Unavailable

15

NUT

4H7-81872-00-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

NUT, HEXAGON

95380-06600-00

Unavailable

18

. WIRE, STARTER

4H7-81815-00-00

Unavailable

19

CAP

(4H7-81871-00-00)

Unavailable
