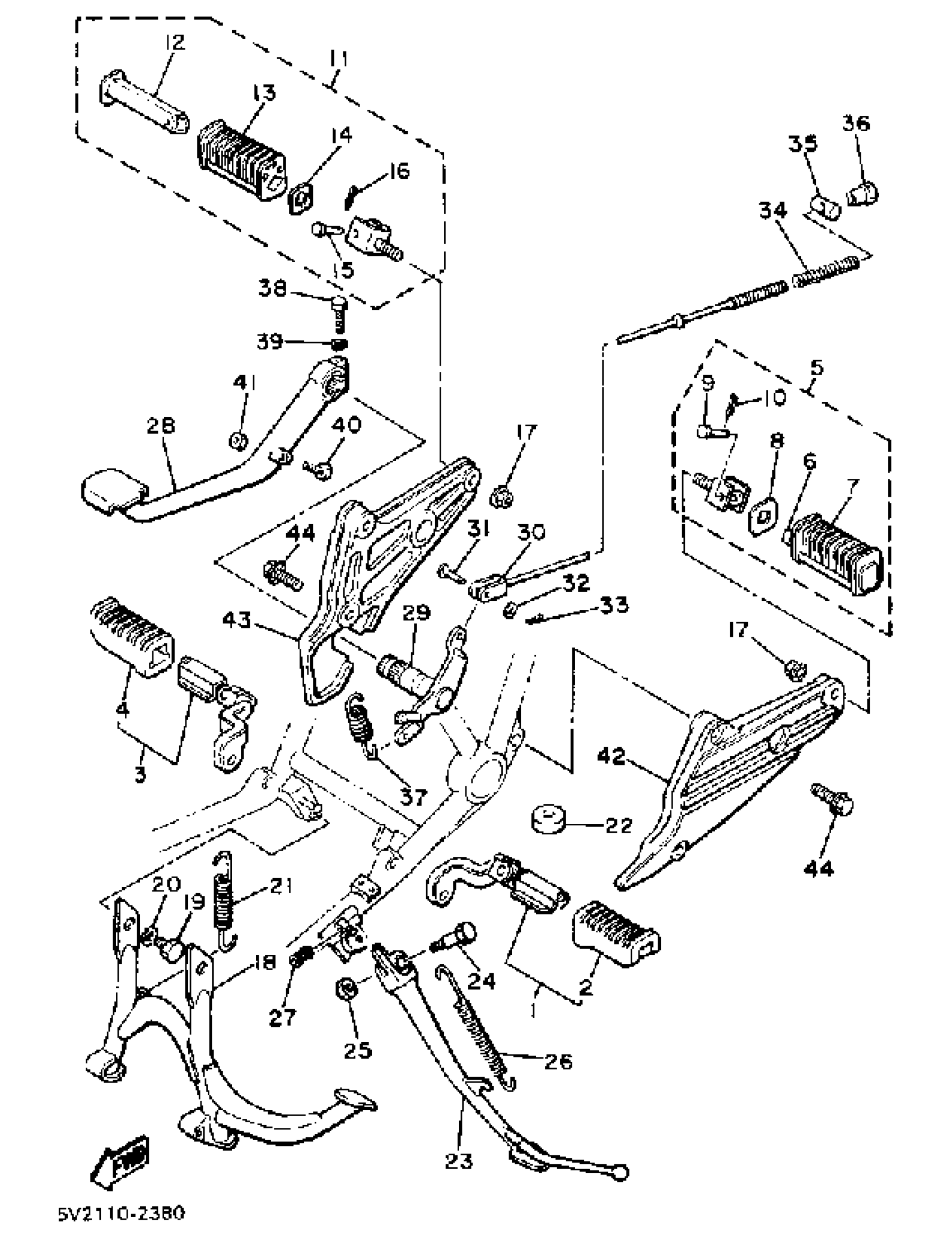

Yamaha XJ650RJ (XJ650R) 1982 STAND FOOTREST Diagram

#

Description
Price

1

FRT FOOTREST ASSEMBLY LASSEMBLY (L.H.)

4K0-27410-00-R4

Unavailable

2

COVER, FOOTREST

4L0-27423-00-00

$49.99

3

FRT FOOTREST ASSEMBLY RASSEMBLY (R.H.)

4K0-27420-00-R4

Unavailable

4

COVER, FOOTREST

4L0-27423-00-00

$49.99

5

RR FOOTREST ASSEMBLY 1

2H7-27430-00-00

Unavailable

6

FOOTREST, REAR 1

447-27431-00-00

Unavailable

7

. COVER, RR FOOTREST

1J7-27433-00-00

Unavailable

8

WASHER 447274370000

90209-18070-00

$2.49

9

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

10

PIN, COTTER

91490-16020-00

Unavailable

11

RR FOOTREST ASSEMBLY 2

2H7-27440-00-00

Unavailable

12

FOOTREST, REAR 2

447-27441-00-00

Unavailable

13

. COVER, RR FOOTREST

1J7-27444-00-00

Unavailable

14

WASHER 447274370000

90209-18070-00

$2.49

15

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

16

PIN, COTTER

91490-16020-00

Unavailable

17

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

18

STAND, MAIN

4K0-27111-00-R4

Unavailable

19

BOLT,HEXAGON

97017-10016-00

Unavailable

20

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

21

SPRING, TENSION

90506-40233-00

Unavailable

22

STOPPER, MAIN STAND

1A0-27114-00-00

Unavailable

23

STAND, SIDE

5G2-27311-00-R4

Unavailable

24

BOLT

90109-10473-00

Unavailable

25

NUT (682)

95380-10700-00

Unavailable

26

SPRING (460)

90507-29009-00

Unavailable

27

GUIDE, SIDE STAND

5G2-27351-00-00

Unavailable

28

PEDAL, BRAKE

16G-27211-00-5R

Unavailable

29

SHAFT, BRAKE PEDAL

(4K0-27212-02-00)

Unavailable

30

ROD, BRAKE

4K0-27231-01-00

Unavailable

31

PIN (3H0)

90240-08067-00

Unavailable

32

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

33

PIN, COTTER

91490-20025-00

Unavailable

34

SPRING, (180-27236-00)

90501-10245-00

Unavailable

35

PIN 1562723700

90249-12008-00

Unavailable

36

NUT (25K)

90179-06411-00

Unavailable

37

SPRING, TENSION(1FN)

90506-20380-00

Unavailable

38

BOLT (1J7)

90109-06468-00

Unavailable

39

WASHER, SPRING

92995-06100-00

Unavailable

40

SCREW 341272170000

90153-06008-00

Unavailable

41

NUT, HEXAGON (371 447)

90170-06184-00

Unavailable

42

BRACKET 2

4K0-27442-00-00

Unavailable

43

BRACKET 3

4K0-27443-00-00

Unavailable

44

BOLT, FLANGE

95817-10030-00

Unavailable
