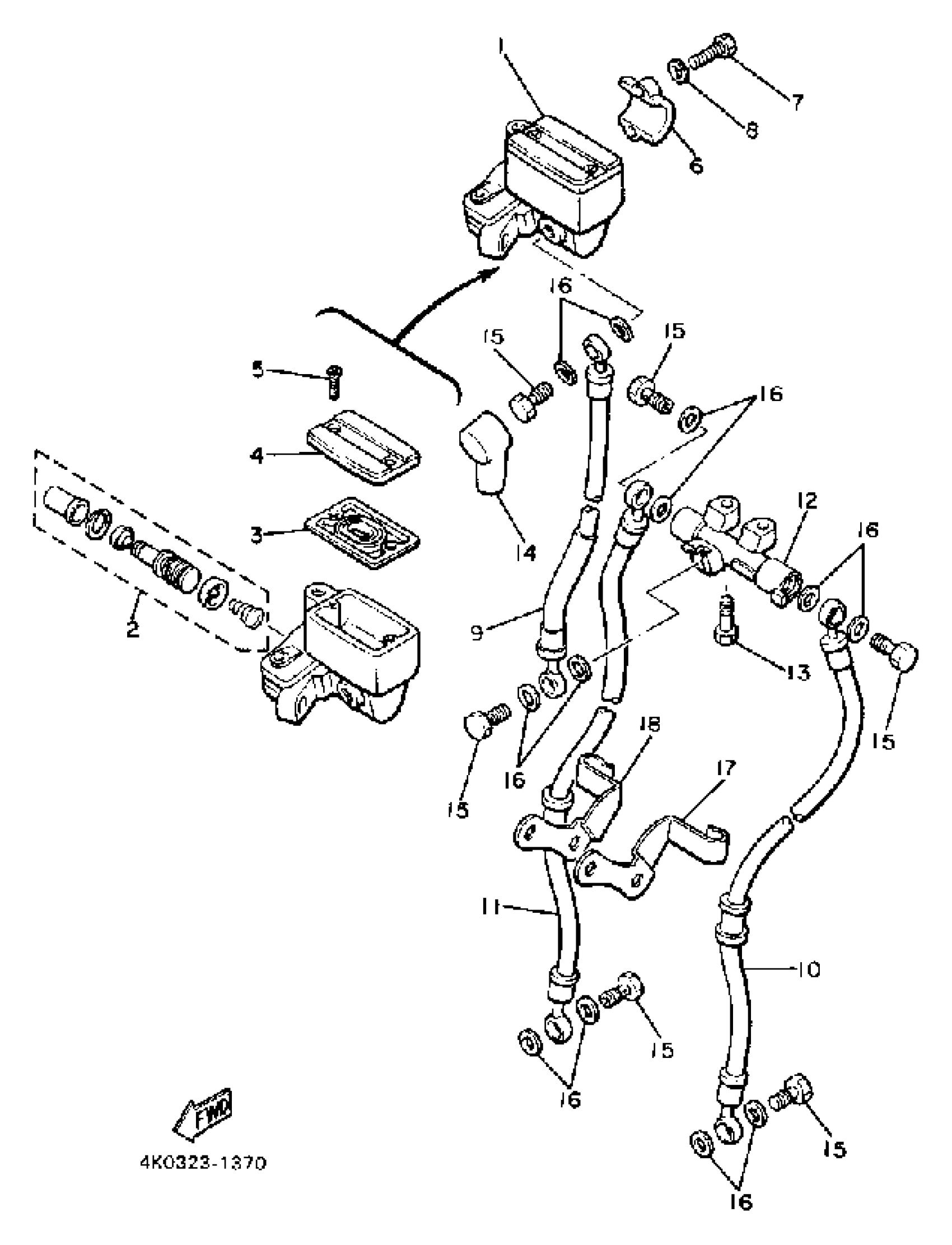

Yamaha XJ650RJ (XJ650R) 1982 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

4G0-25850-01-00

Unavailable

2

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

3

DIAPHRAGM, RESERVOIR

4HM-25854-00-00

$35.99

4

CAP, RESERVOIR

3GM-25852-02-00

$57.99

5

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

5

SCREW, FLAT

98707-04010-00

$8.49

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER, SPRING

92907-06100-00

$4.25

9

HOSE, BRAKE 1

4K0-25872-00-00

Unavailable

10

HOSE, BRAKE 2

4K0-25873-00-00

Unavailable

11

HOSE, BRAKE

4K0-25874-00-00

Unavailable

12

JOINT

4K0-25885-00-00

Unavailable

13

BOLT,SOCKET

91317-06020-00

Unavailable

14

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

15

BOLT, UNION(3GM)

90401-10159-00

$11.49

16

WASHER, PLATE(481)

90201-10118-00

Unavailable

17

HOLDER, BRKE HOSE 1

4E2-25875-00-00

Unavailable

18

HOLDER, BRKE HOSE 2

4E2-25876-00-00

Unavailable
