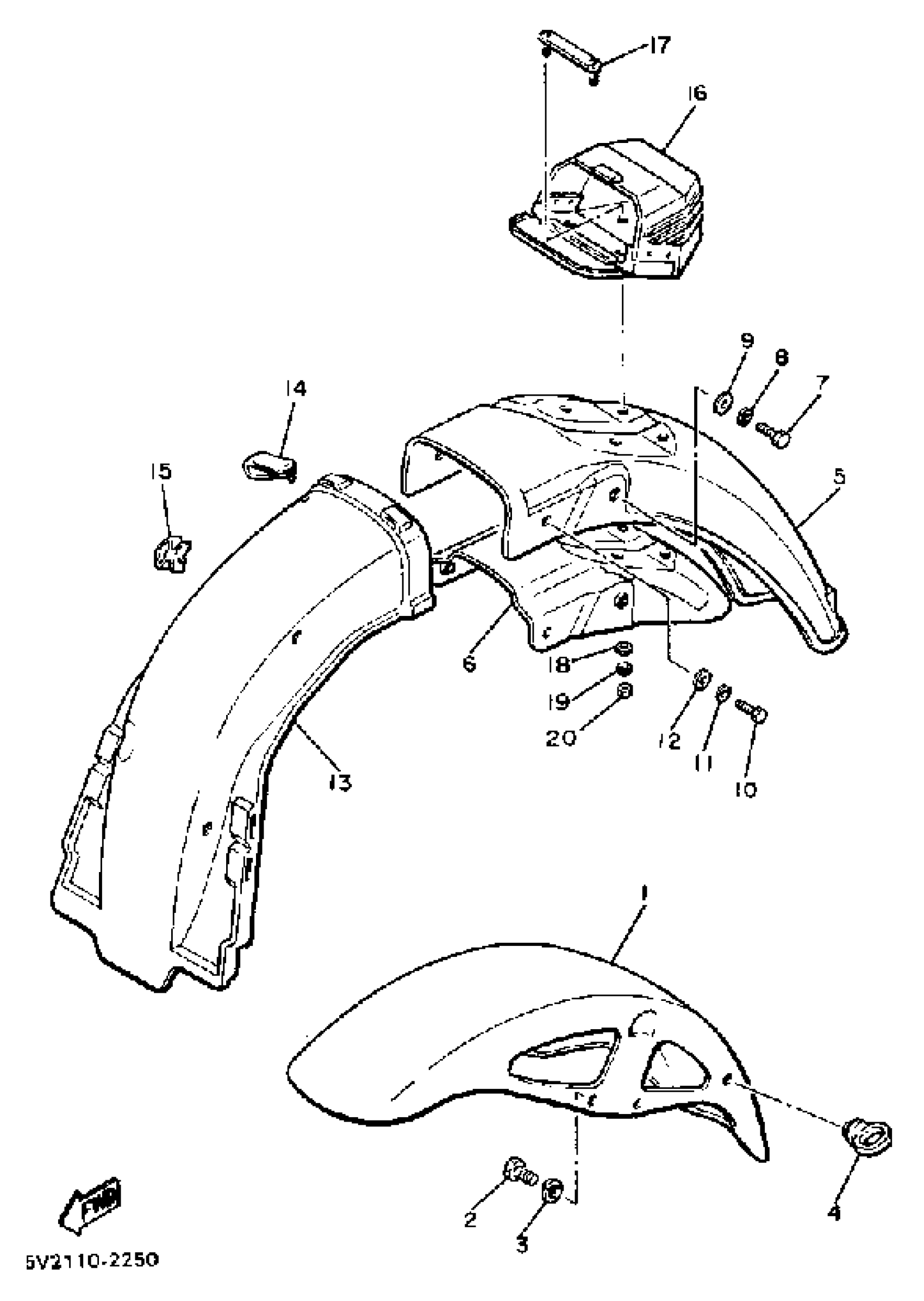

Yamaha XJ650RJ (XJ650R) 1982 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4K0-21510-00-20

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.43

3

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REAR

4K0-21611-00-00

Unavailable

6

REINFORCEMENT

(4K0-21670-00-00)

Unavailable

7

BOLT, HEXAGON

97013-08020-00

$1.43

8

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

9

.. WASHER, PLATE

92990-08600-00

$2.17

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

11

WASHER, SPRING

92995-06100-00

$2.95

12

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

13

GUARD, MUD

4H7-21629-00-00

Unavailable

14

CLAMP (2H7)

90464-12027-00

Unavailable

15

CLAMP (1J7)

90464-16021-00

$10.70

16

BOX CMPLT

4K0-2160A-00-00

Unavailable

17

BOLT 1

4K0-21631-00-00

Unavailable

18

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

19

WASHER, SPRING

92995-06100-00

$2.95

20

NUT, HEXAGON

95380-06600-00

$4.11
