Description

Price

1

DISC, BRAKE

1L9-25831-00-00

Unavailable

2

WASHER, LOCK

1J3-25834-01-00

$6.99

3

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

4

CALIPER ASSEMBLY RH (RIGHT)

4K0-25810-02-00

Unavailable

5

PISTON SEAL KIT

1J3-W0057-00-00

Unavailable

6

CALIPER SEAL KIT

1J3-W0047-00-00

$56.99

7

BOOT, CALIPER

1J3-25917-00-00

Unavailable

8

. SLEEVE, CALIPER

1J3-25838-00-00

Unavailable

9

. CAP, INDICATOR

1J3-25845-01-00

Unavailable

10

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

11

. BOLT, WASHER BASED

90105-08145-00

Unavailable

12

BRAKE PAD KIT

4K0-W0045-02-00

$56.99

13

CALIPER ASSEMBLY LH

(4K0-25810-11-00)

Unavailable

14

PISTON SEAL KIT

1J3-W0057-00-00

Unavailable

15

CALIPER SEAL KIT

1J3-W0047-00-00

$56.99

16

BOOT, CALIPER

1J3-25917-00-00

Unavailable

17

. SLEEVE, CALIPER

1J3-25838-00-00

Unavailable

18

. CAP, INDICATOR

1J3-25845-01-00

Unavailable

19

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

20

. BOLT, WASHER BASED

90105-08145-00

Unavailable

21

BRAKE PAD KIT

4K0-W0045-02-00

$56.99

22

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

23

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

24

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

25

RETAINER

(1L9-25913-00-00)

Unavailable

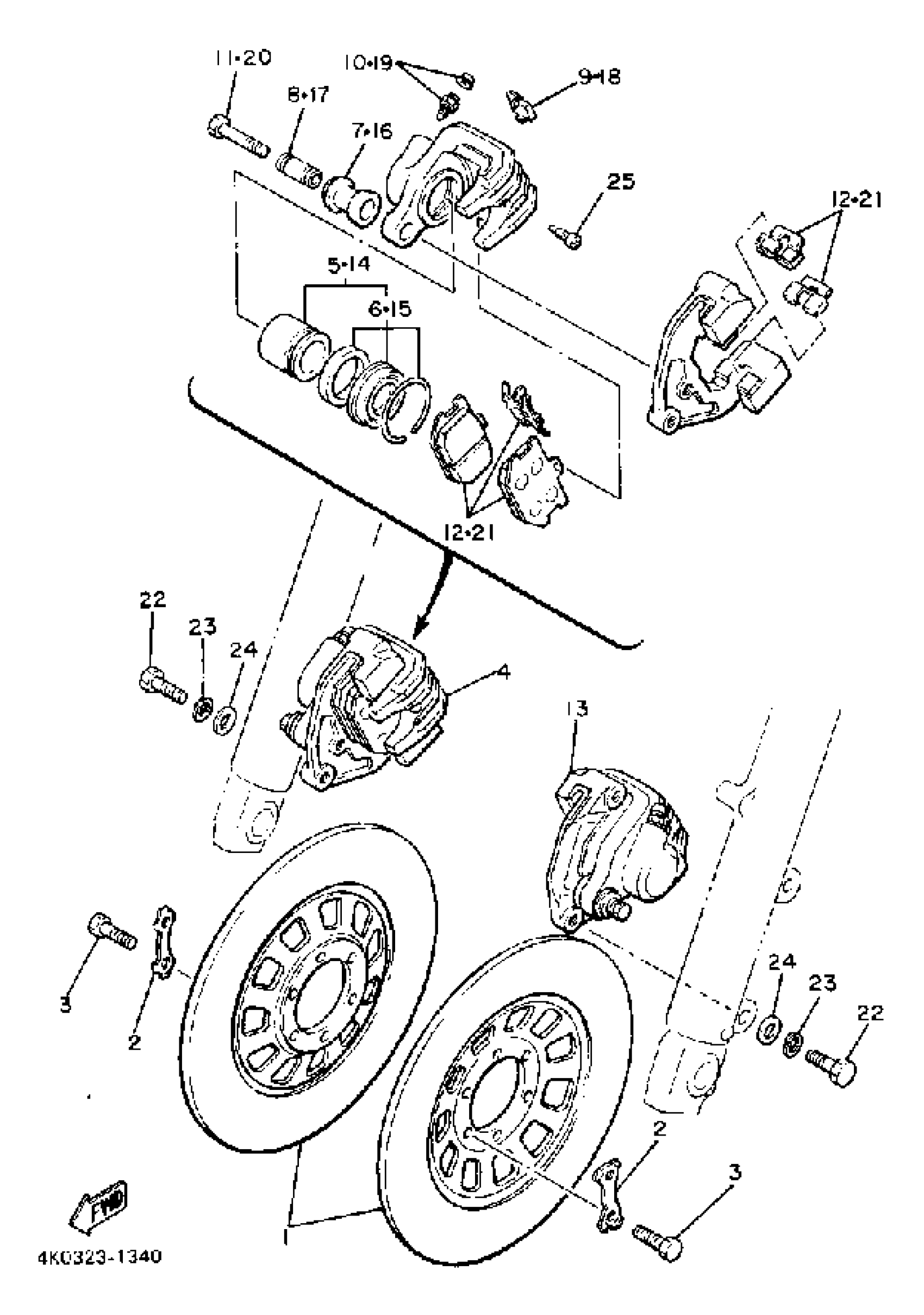

Yamaha XJ650RJ (XJ650R) 1982 FRONT BRAKE CALIPER Diagram

DISC, BRAKE

WASHER, LOCK

BOLT, HEXAGON (1L9)

CALIPER ASSEMBLY RH (RIGHT)

PISTON SEAL KIT

CALIPER SEAL KIT

BOOT, CALIPER

. SLEEVE, CALIPER

. CAP, INDICATOR

BLEED SCREW KIT

. BOLT, WASHER BASED

BRAKE PAD KIT

CALIPER ASSEMBLY LH

PISTON SEAL KIT

CALIPER SEAL KIT

BOOT, CALIPER

. SLEEVE, CALIPER

. CAP, INDICATOR

BLEED SCREW KIT

. BOLT, WASHER BASED

BRAKE PAD KIT

BOLT, WASHER BASED(3VD)

YBS67-10 WASHER, SPRING

958-69527-00 WASHER, PLAIN

RETAINER
