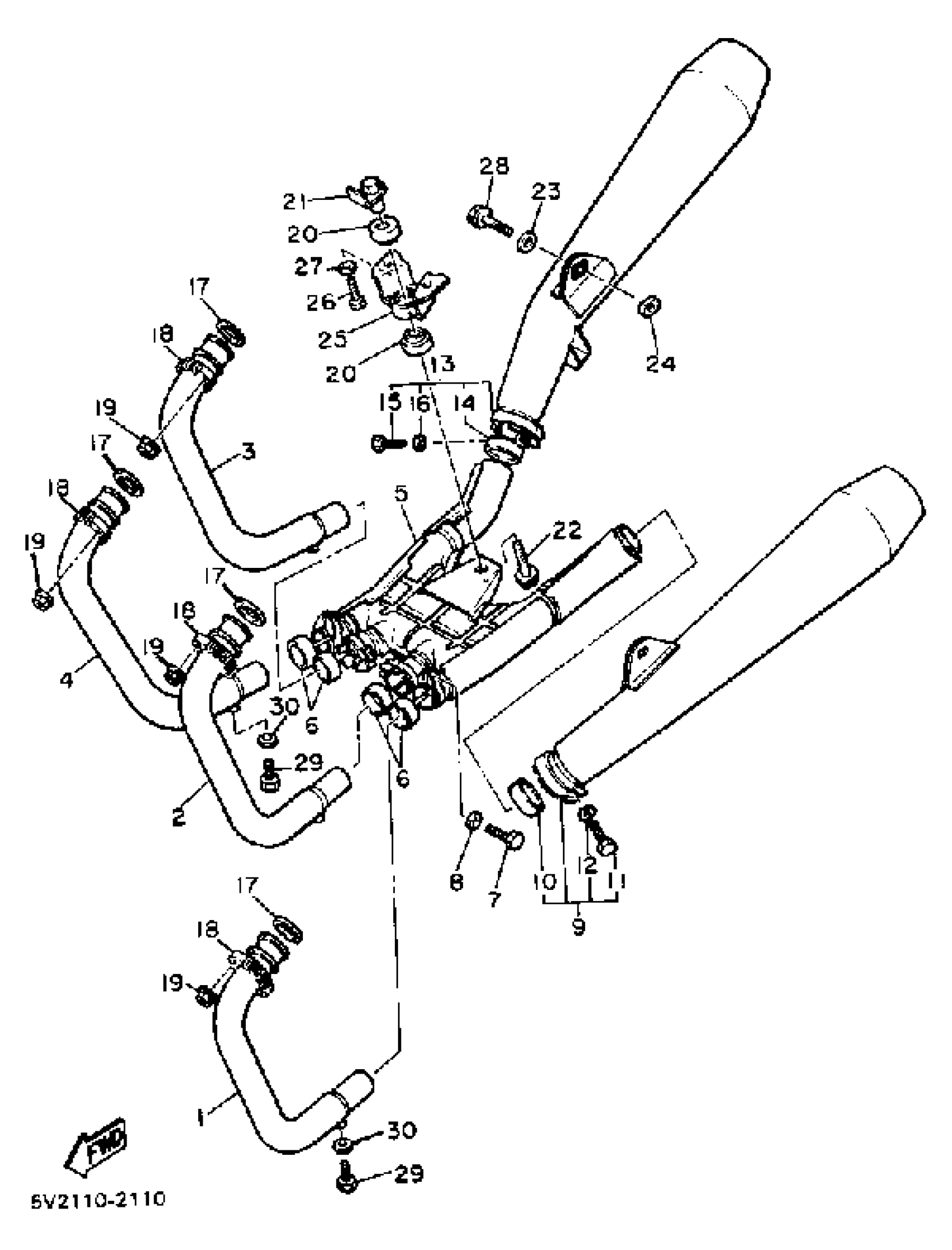

Yamaha XJ650RJ (XJ650R) 1982 EXHAUST Diagram
#
Description
Price
1
PIPE, EXHAUST L
4K0-14611-01-00
Unavailable
2
PIPE, EXHAUST R
(4K0-14621-01-00)
Unavailable
3
PIPE, EXHAUST 3
(4K0-14631-01-00)
Unavailable
4
PIPE, EXHAUST 4
4K0-14641-01-00
Unavailable
5
JOINT, EXHAUST L
4K0-14615-00-00
Unavailable
8
.. WASHER, PLATE
92990-08600-00
Unavailable
9
MUFFLER ASSEMBLY L
4K0-14710-00-00
Unavailable
12
.. WASHER, PLATE
92990-08600-00
Unavailable
13
MUFFLER ASSEMBLY R
4K0-14720-00-00
Unavailable
16
.. WASHER, PLATE
92990-08600-00
Unavailable
17
GASKET, EXHAUST PIPE
4BR-14613-00-00
Unavailable
18
NUT, RING
4H7-14612-00-00
Unavailable
19
NUT (1AE)
90179-06500-00
Unavailable
20
DAMPER, MUFFLER
36Y-14747-00-00
Unavailable
21
COLLAR
1AE-14638-00-00
Unavailable
22
BOLT, FLANGE
95814-10040-00
Unavailable
23
WASHER, PLATE (2H7)
90201-10669-00
Unavailable
24
NUT, SPEC''L SHAPE
90179-10276-00
Unavailable
25
STAY, MUFFLER
4K0-14791-00-00
Unavailable
27
.. WASHER, PLATE
92990-08600-00
Unavailable
28
BOLT, FLANGE
95817-10030-00
Unavailable
29
BOLT (661)
97013-06012-00
Unavailable
30
WASHER, PLAIN (646)
92990-06600-00
Unavailable
