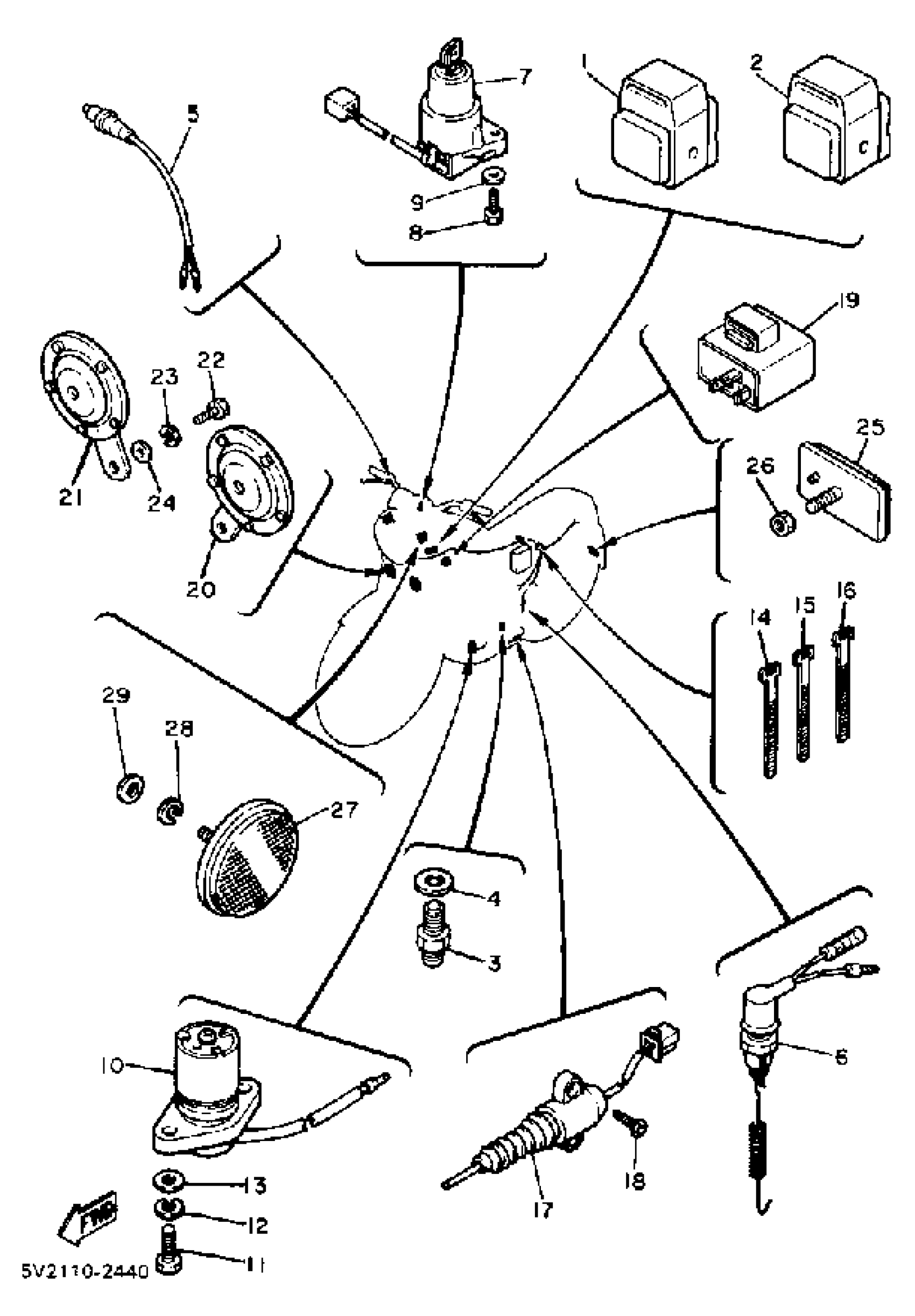

Yamaha XJ650RJ (XJ650R) 1982 ELECTRICAL 2 Diagram

#

Description
Price

1

RELAY ASSY (3H5-00)

3H5-81950-00-00

Unavailable

2

RELAY ASSY

4U8-81950-03-00

Unavailable

3

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

4

GASKET (5R6)

90430-10171-00

$3.18

5

FRONT STOP SWITCH ASSY

26H-83980-00-00

$74.99

6

STOP SWITCH ASSEMBLY (1E9-82530-00-00)

1E9-82530-02-00

Unavailable

7

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

OIL LEVEL GAUGE ASSY

4H7-85720-02-00

Unavailable

11

BOLT, HEXAGON

97017-06020-00

$4.06

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLAIN (646)

92990-06600-00

$2.80

14

BAND, SWITCH CORD

437-83936-11-00

$4.63

15

BAND, SWITCH CORD

25G-83936-01-00

$4.78

16

BAND

341-26397-01-00

Unavailable

17

SWITCH, SIDE STAND

5G2-82566-01-00

Unavailable

18

SCREW, FLAT

98707-05016-00

Unavailable

19

FLASHER RELAY ASSEMBLY

4H7-83350-70-00

Unavailable

20

HORN

2H9-83371-20-00

Unavailable

21

HORN

2H9-83371-30-00

Unavailable

22

BOLT, HEXAGON

97017-08016-00

Unavailable

23

WASHER(JN5)

92907-08100-00

Unavailable

24

WASHER(6TA)

92907-08600-00

Unavailable

25

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

26

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

27

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

28

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

29

. WASHER, PLAIN

92990-05200-00

Unavailable
