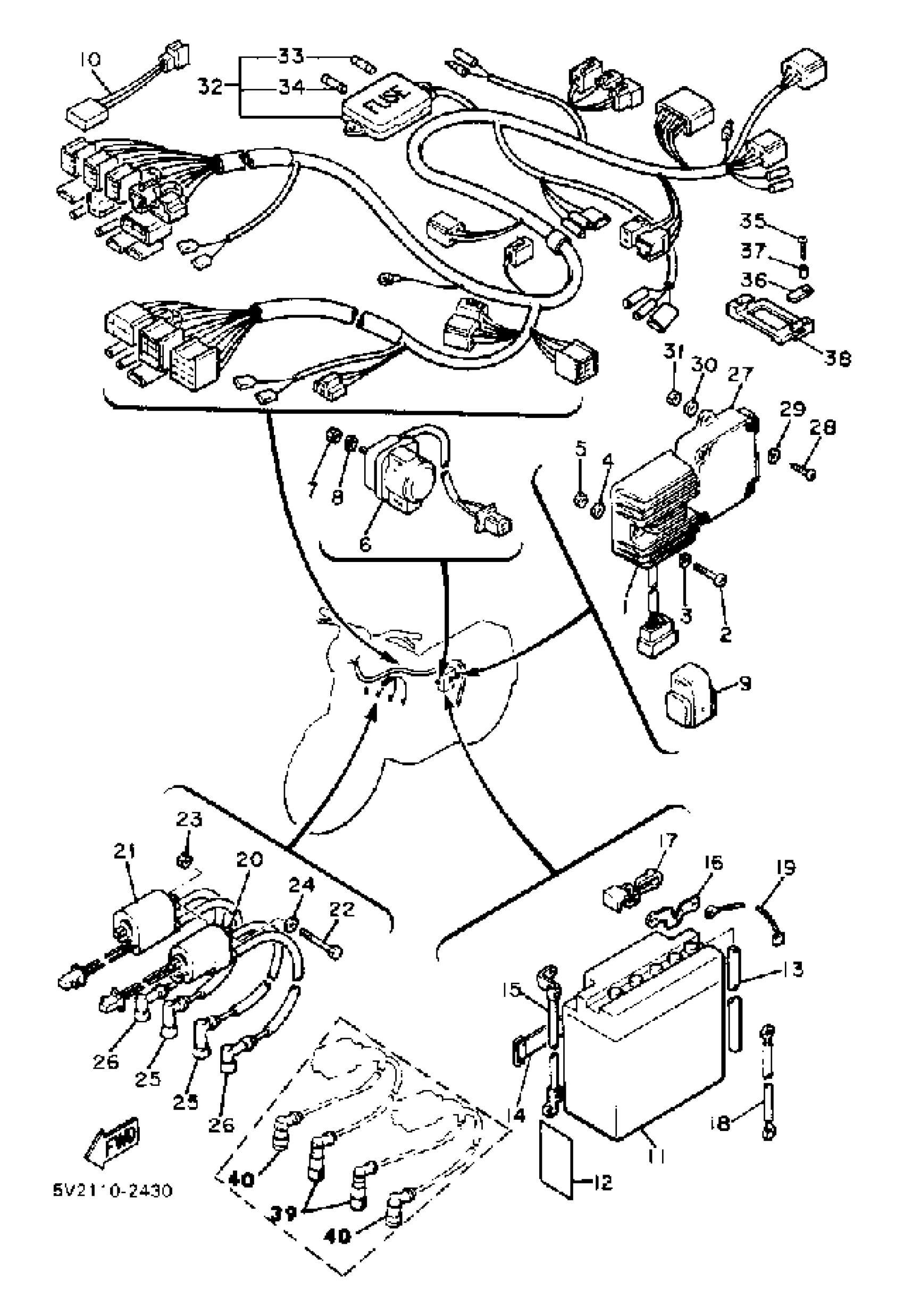

Yamaha XJ650RJ (XJ650R) 1982 ELECTRICAL 1 Diagram

RECTIFIER & REGULATOR ASSY

3G1-81960-A1-00

Unavailable

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

NUT(650)

95380-06700-00

$8.49

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

NUT(650)

95380-06700-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

RELAY ASSY

12R-81950-02-00

$70.99

RECTIFIER 2

4U8-81980-M0-00

Unavailable

12N12A-4A-1 YUASA BATTERY

12N-12A4A-1Y-00

Unavailable

LABEL, BATTERY

40A-82141-G0-00

Unavailable

HOSE (L1500)

90445-084J0-00

$18.99

BAND, BATTERY

26H-82131-00-00

$23.99

WIRE, MINUS LEAD

4H7-82116-00-00

Unavailable

TERMINAL 1

4H7-82103-00-00

Unavailable

COVER, LEAD WIRE

4H7-82119-00-00

Unavailable

WIRE, EARTH LEAD

4H7-82519-00-00

Unavailable

WIRE, PLUS LEAD

4H7-82115-00-00

Unavailable

IGNITION COIL ASSY

4G0-82310-09-00

Unavailable

IGNITION COIL ASSY

4G0-82310-09-00

Unavailable

BOLT(7LR)

97027-06080-00

Unavailable

NUT, HEXAGON

95380-06600-00

Unavailable

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

PLUG CAP ASSY

4BP-82370-01-00

Unavailable

IGNITOR UNIT ASSEMBLY 1

5V2-82305-10-00

Unavailable

SCREW, PAN

98507-06014-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

NUT(650)

95380-06700-00

$8.49

WIRE HARNESS ASSEMBLY

5V2-82590-50-00

Unavailable

FUSE

1A0-82151-00-00

Unavailable

FUSE

1A0-82161-00-00

Unavailable

YBS83-525 SCREW,PANH.TAPPING

97780-50125-00

Unavailable

WASHER

(4K0-82558-00-00)

Unavailable

COLLAR(55K)

90387-066M1-00

Unavailable

DAMPER

4K0-82157-00-00

Unavailable

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

PLUG CAP ASSEMBLY

2H8-82370-10-00

Unavailable
