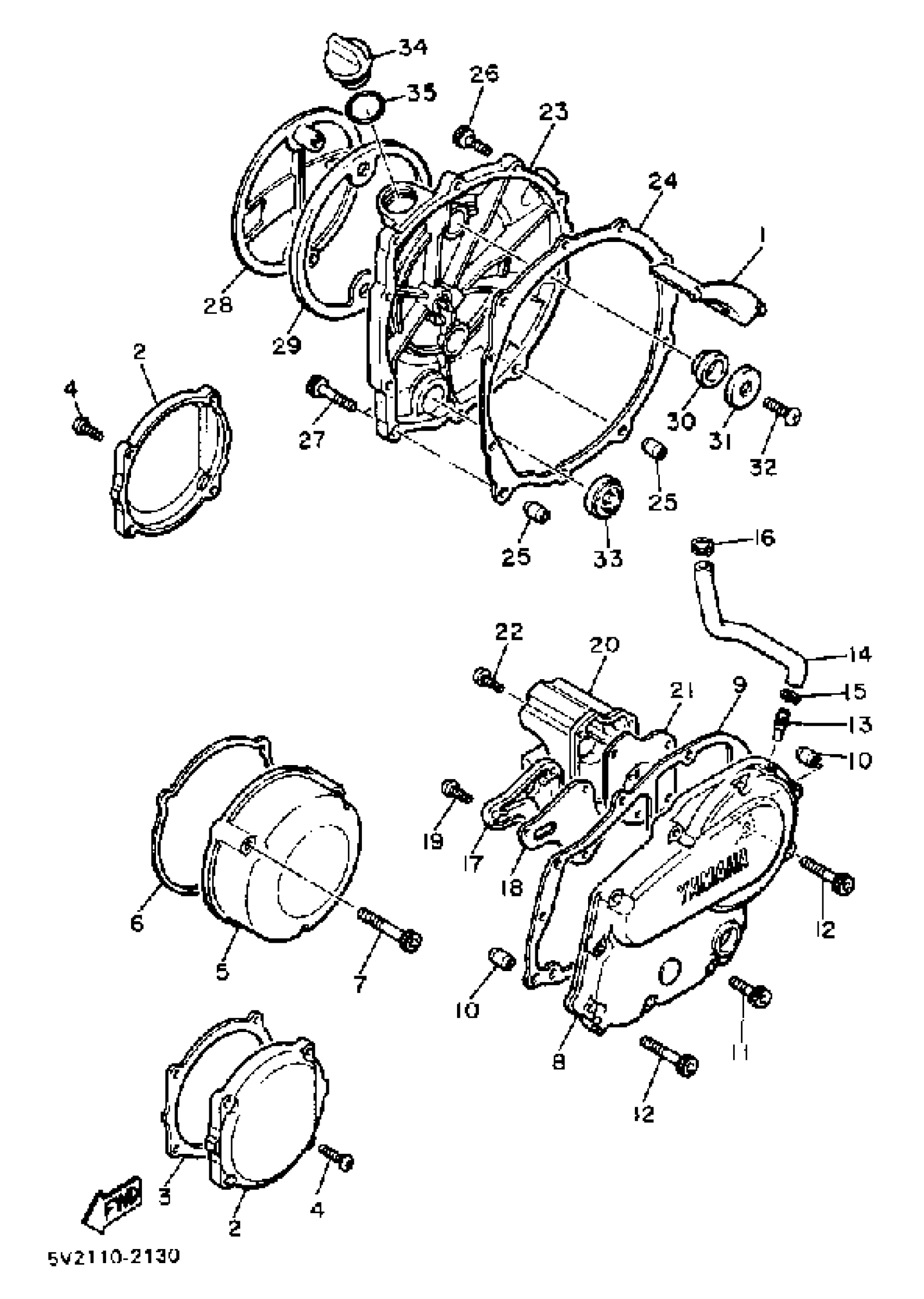

Yamaha XJ650RJ (XJ650R) 1982 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, OIL PUMP

4H7-15412-01-00

Unavailable

2

COVER, OIL PUMP

4K0-15416-00-00

Unavailable

3

GASKET, OIL PUMP COVER 1

4BB-15456-00-00

$11.99

4

SCREW, BINDING

98907-06020-00

$8.49

5

COVER, GENERATOR

4K0-15415-00-00

Unavailable

6

GASKET 1

4BB-15455-00-00

$27.99

7

BOLT, SOCKET

91317-06070-00

$4.99

8

COVER, CRANKCASE L

5G9-15411-00-00

Unavailable

9

GASKET, CRANKCASE COVER 1

4BB-15451-00-00

$35.99

10

PIN, DOWEL(3VD)

99530-10114-00

$2.55

11

BOLT,SOCKET

91317-06025-00

$5.60

12

BOLT,SOCKET

91317-06040-00

$3.76

13

PIPE, BREATHER 2

371-11167-01-00

$13.49

14

PIPE, BREATHER 1

4H7-11166-01-00

Unavailable

15

CLIP (371)

90467-14015-00

$8.49

16

CLIP

90468-08104-00

Unavailable

17

BREATHER 1

(4H7-15346-00-00)

Unavailable

18

GASKET

4BB-15457-00-00

Unavailable

19

SCREW, PAN

98507-06014-00

Unavailable

20

BREATHER 2

4H7-15347-01-00

Unavailable

21

GASKET

4BB-15467-00-00

Unavailable

22

SCREW, PAN

98507-06014-00

Unavailable

23

COVER, CRANKCASE R

4K0-15421-01-00

Unavailable

24

GASKET, CRANKCASE COVER 2

4BB-15461-00-00

Unavailable

25

PIN, DOWEL(3VD)

99530-10114-00

$2.55

26

BOLT,SOCKET

91317-06025-00

$5.60

27

BOLT,SOCKET

91317-06040-00

$3.76

28

COVER, CAP

5G2-15417-00-00

Unavailable

29

RING, RUBBER

4H7-15449-00-00

Unavailable

30

GROMMET

4H7-15486-00-00

Unavailable

31

WASHER (4H7)

90209-06096-00

Unavailable

32

SCREW, PAN

98507-06014-00

Unavailable

33

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

34

PLUG, OIL

2H9-15363-00-00

Unavailable

35

O-RING(1KT)

93210-27778-00

Unavailable
