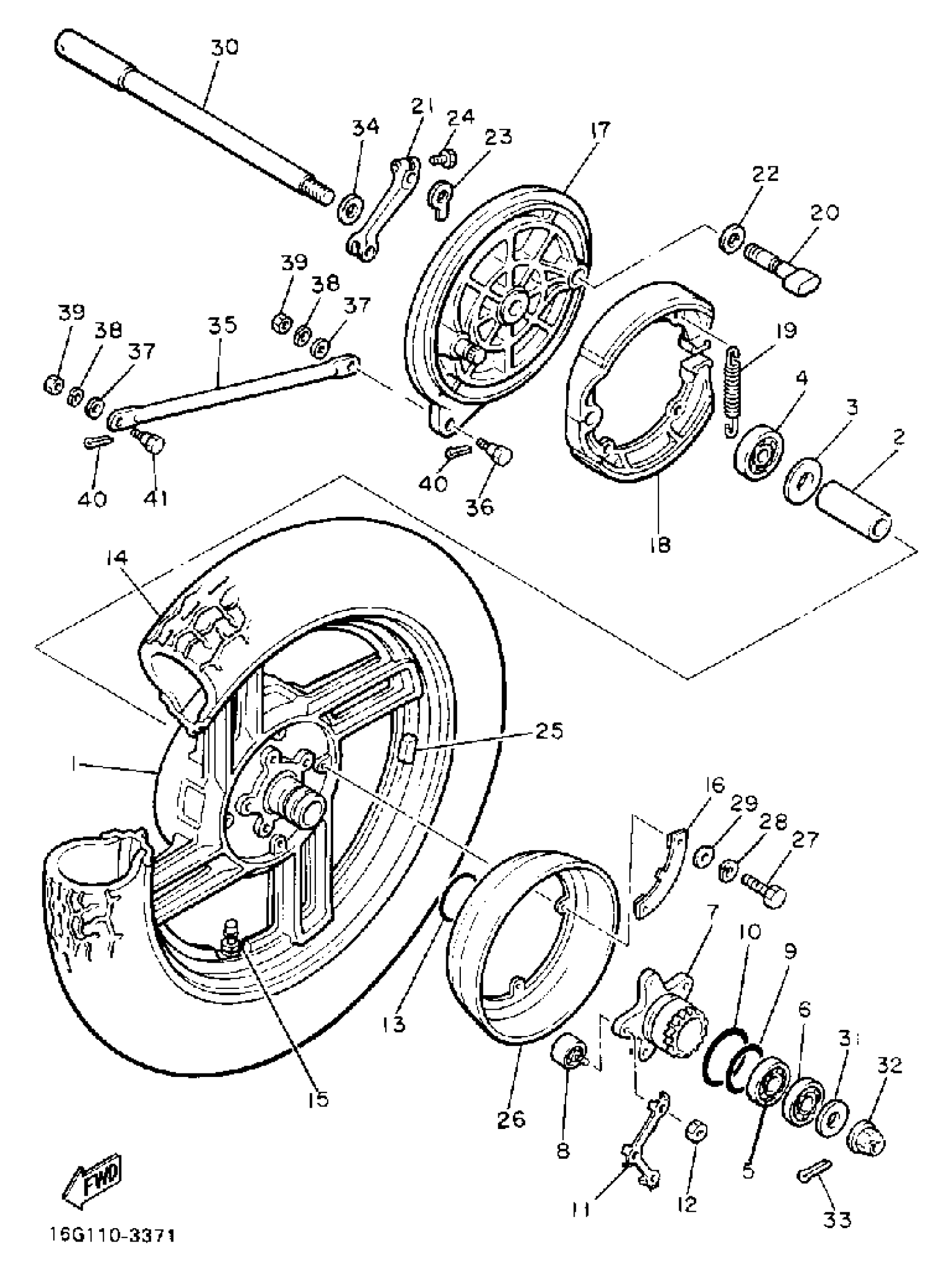

Yamaha XJ650LK (XJ650L) 1983 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

16G-25338-29-4N

Unavailable

2

SPACER

90560-17125-00

Unavailable

3

FLANGE, SPACER

146-25315-00-00

$7.99

4

BEARING(4HM)

93306-30317-00

$39.99

5

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

6

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

7

CLUTCH, HUB

(16G-25366-00-00)

Unavailable

8

DAMPER

42H-25364-00-00

Unavailable

9

O-RING (11H)

93210-48530-00

$7.49

10

O-RING (11H)

93210-59531-00

$15.99

11

WASHER

16G-25412-00-00

$10.99

12

NUT, FLANGE(3BM)

95704-10500-00

$4.29

13

O-RING (4H7)

93210-57428-00

$14.99

14

120/90V18 S716 TL

(94112-18483-00)

Unavailable

15

VALVE, RIM (31A)

93900-00031-00

$16.99

16

STOPPER, DAMPER

(16G-2531A-00-00)

Unavailable

17

INACTIVE PART NUMBER

16G-25321-00-00

Unavailable

18

BRAKE SHOE KIT

3DR-W253E-00-00

Unavailable

19

SPRING, TENSION 2462533300

90507-20002-00

Unavailable

20

CAMSHAFT

4H7-25351-00-00

Unavailable

21

LEVER, CAMSHAFT

341-25355-00-00

Unavailable

22

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

23

PLATE, INDICATOR

4H7-2533A-02-00

Unavailable

24

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

25

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

25

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

25

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

26

COVER, PLATE

4H7-25327-00-00

Unavailable

27

BOLT, HEXAGON

97013-05020-00

Unavailable

28

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

29

WASHER, PLAIN (646)

92990-05600-00

Unavailable

30

AXLE, WHEEL

4H7-25381-00-00

Unavailable

31

WASHER, PLATE

90201-14022-00

Unavailable

32

NUT, CASTLE (4V7)

90171-14031-00

Unavailable

33

PIN, COTTER

91490-30030-00

Unavailable

34

COLLAR, WHEEL

4H7-25377-00-00

Unavailable

35

BAR, TENSION

3H0-25371-00-00

Unavailable

36

BOLT (537 TENSION BAR)

90109-08406-00

Unavailable

37

.. WASHER, PLATE

92990-08600-00

Unavailable

38

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

39

. NUT

95380-08700-00

Unavailable

40

PIN, COTTER

91490-20025-00

Unavailable

41

BOLT (183-25378-00)

90109-08368-00

Unavailable
