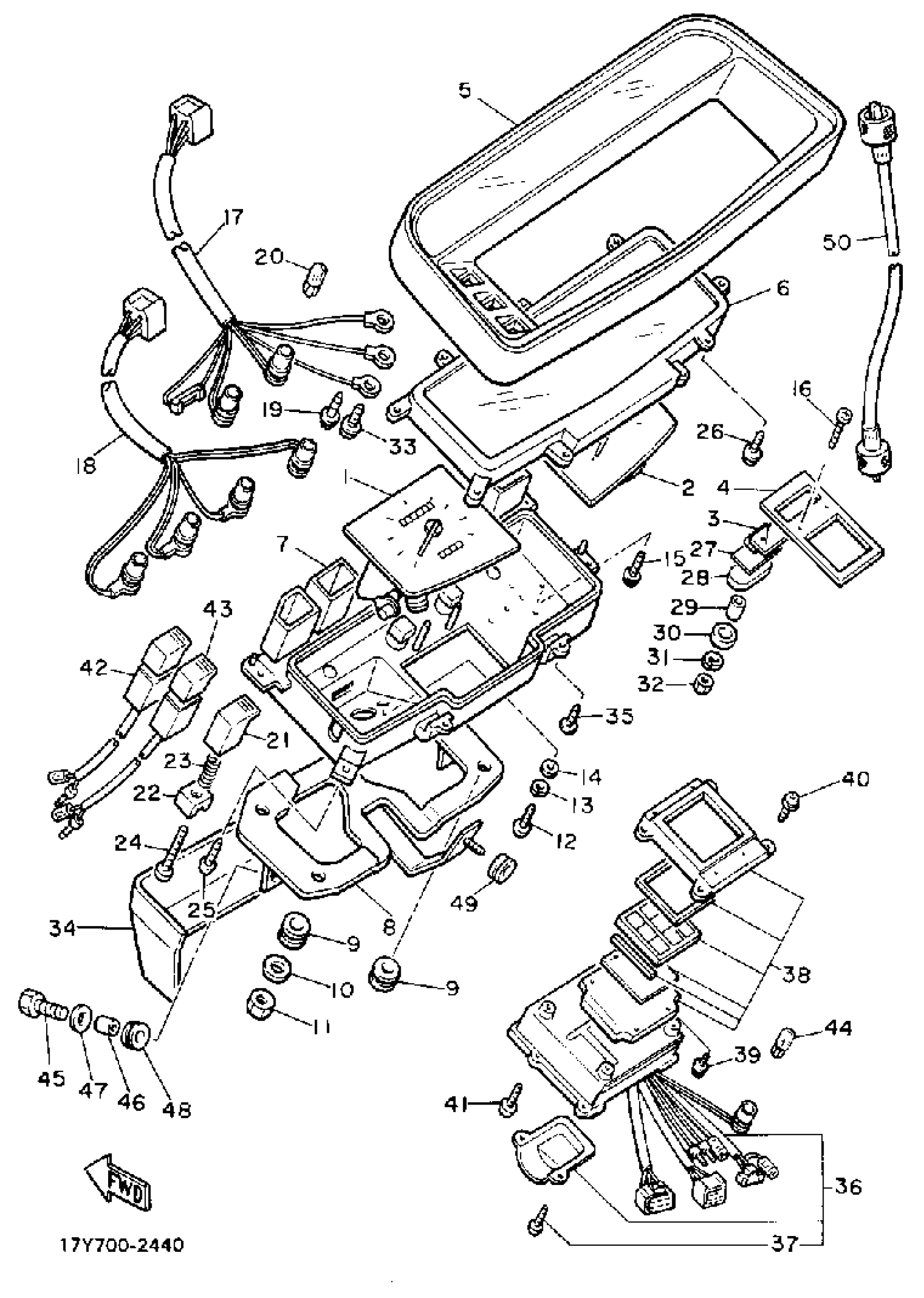

Yamaha XJ650LK (XJ650L) 1983 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

16G-83570-A0-00

Unavailable

2

TACHOMETER ASSEMBLY

(16G-83540-00-00)

Unavailable

3

BOOST PRSSRMTR ASSEMBLY

(16G-83680-00-00)

Unavailable

4

PANEL METER 2

(16G-83613-00-00)

Unavailable

5

COVER, METER

16G-83559-00-00

Unavailable

6

CASE UPPER

16G-8353G-00-00

Unavailable

7

CASE, INNER

16G-8353H-00-00

Unavailable

8

BRACKET, METER

16G-83519-00-00

Unavailable

9

DAMPER

5G2-83523-00-00

Unavailable

10

WASHER, PLATE

90201-06020-00

$9.49

11

NUT(650)

95380-06700-00

$8.49

12

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

WASHER, PLAIN (646)

92990-04600-00

$5.99

15

SCREW, WITH WASHER

90159-04043-00

Unavailable

16

SCREW, TAPPING

(90164-02012-00)

Unavailable

17

SOCKET CORD ASSEMBLY

(16G-83520-10-00)

Unavailable

18

SOCKET CORD ASSEMBLY

(16G-83509-00-00)

Unavailable

19

SCREW, WITH WASHER

90159-03044-00

Unavailable

20

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

21

KNOB, TRIP METER

16G-83578-00-00

Unavailable

22

LEVER, TRIP METER

(16G-8353Y-00-00)

Unavailable

23

SPRING, METER

(16G-83515-00-00)

Unavailable

24

. SCREW, TAPPING

90167-03058-00

Unavailable

25

SCREW, TAPPING

(90164-04011-00)

Unavailable

26

. SCREW, TAPPING

90167-03058-00

Unavailable

27

PLATE, FITTING

(16G-83544-00-00)

Unavailable

28

DAMPER

(16G-83523-00-00)

Unavailable

29

COLLAR

(16G-83522-00-00)

Unavailable

30

DAMPER 2

(4G0-83526-00-00)

Unavailable

31

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

32

NUT(6L4)

95380-04700-00

Unavailable

33

SCREW, WITH WASHER

90159-03044-00

Unavailable

34

COVER, METER 2

(16G-83579-00-00)

Unavailable

35

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

36

PRINT BOARD ASSEMBLY

(10M-W8352-00-00)

Unavailable

37

SCREW, TAPPING (97702-40508-00)

97701-40508-00

Unavailable

38

LCD UNIT SET

16G-W8351-01-00

Unavailable

39

SCREW, WITH WASHER

(90159-04055-00)

Unavailable

40

SCREW, WITH WASHER

90159-03054-00

Unavailable

41

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

42

SWITCH, METER CNTRL

16G-8358J-10-00

Unavailable

43

SWITCH, METER CNTRL

16G-8358J-10-00

Unavailable

44

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

45

BOLT, HEXAGON

97017-06025-00

Unavailable

46

SPACER

90560-07007-00

Unavailable

47

WASHER, PLATE

90201-06380-00

Unavailable

48

GROMMET 839774310000

90480-14023-00

Unavailable

49

GROMMET

(90480-01288-00)

Unavailable

50

SPEEDOMETER CABLE ASSY

4V5-83550-02-00

Unavailable
