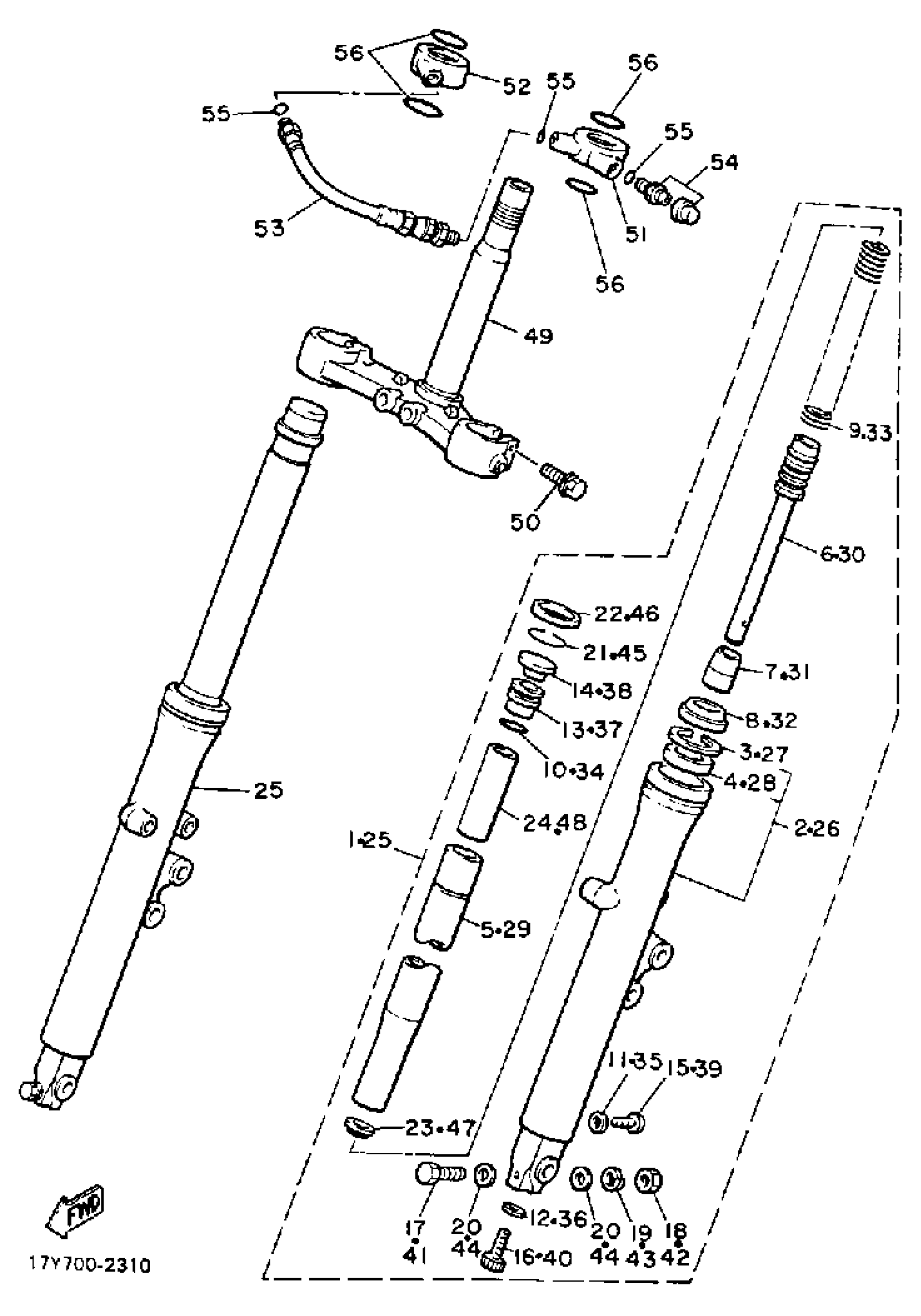

Yamaha XJ650LK (XJ650L) 1983 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

(11T-23102-00-00)

Unavailable

2

TUBE, OUTER 1

(11T-23126-00-6G)

Unavailable

3

RING, SNAP

3R4-23153-00-00

$8.99

4

OIL SEAL

41Y-23145-00-00

$33.99

5

. INNER TUBE 1

11T-23110-00-00

Unavailable

6

CYLINDER, FRTFRK

(16G-23170-01-00)

Unavailable

7

TAPER SPINDLE

1W1-23173-L0-00

$31.99

8

SEAL, DUST

3H5-23144-00-00

$33.99

9

. SPRING, FRONT FORK

11U-23141-00-00

Unavailable

10

GASKET

240-23114-00-00

$13.49

11

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

12

GASKET

509-23158-L0-00

$16.49

13

. BOLT, CAP

11H-23111-00-00

Unavailable

14

CAP, FRONT FORK

26H-23168-00-00

$32.99

15

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

16

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

17

BOLT, HEXAGON

97017-08060-00

Unavailable

18

NUT(6TA)

95337-08600-00

Unavailable

19

WASHER(JN5)

92907-08100-00

Unavailable

20

.. WASHER, PLATE

92990-08600-00

Unavailable

21

. RING, SNAP

15R-23153-00-00

Unavailable

22

WASHER

2H7-23163-00-00

Unavailable

23

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

24

. SPACER

58T-23118-L0-00

Unavailable

25

FRONT FORK ASSEMBLY R

(11T-23103-00-00)

Unavailable

26

. TUBE, OUTER 2

11T-23136-00-6G

Unavailable

27

RING, SNAP

3R4-23153-00-00

$8.99

28

OIL SEAL

41Y-23145-00-00

$33.99

29

. INNER TUBE 1

11T-23110-00-00

Unavailable

30

CYLINDER, FRTFRK

(16G-23170-01-00)

Unavailable

31

TAPER SPINDLE

1W1-23173-L0-00

$31.99

32

SEAL, DUST

3H5-23144-00-00

$33.99

33

. SPRING, FRONT FORK

11U-23141-00-00

Unavailable

34

GASKET

240-23114-00-00

$13.49

35

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

36

GASKET

509-23158-L0-00

$16.49

37

. BOLT, CAP

11H-23111-00-00

Unavailable

38

CAP, FRONT FORK

26H-23168-00-00

$32.99

39

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

40

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

41

BOLT, HEXAGON

97017-08060-00

Unavailable

42

NUT(6TA)

95337-08600-00

Unavailable

43

WASHER(JN5)

92907-08100-00

Unavailable

44

.. WASHER, PLATE

92990-08600-00

Unavailable

45

. RING, SNAP

15R-23153-00-00

Unavailable

46

WASHER

2H7-23163-00-00

Unavailable

47

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

48

. SPACER

58T-23118-L0-00

Unavailable

49

UNDER BRACKET.

(11T-23340-00-00)

Unavailable

50

BOLT, AXLE HOLDER

18G-23128-00-00

Unavailable

51

JOINT, AIR 1

16G-2318A-01-00

Unavailable

52

JOINT, AIR

16G-2319A-01-00

Unavailable

53

HOSE, AIR

(24M-2318F-01-00)

Unavailable

54

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

55

O-RING

3J2-23147-00-00

Unavailable

56

O-RING

15R-23188-00-00

Unavailable
