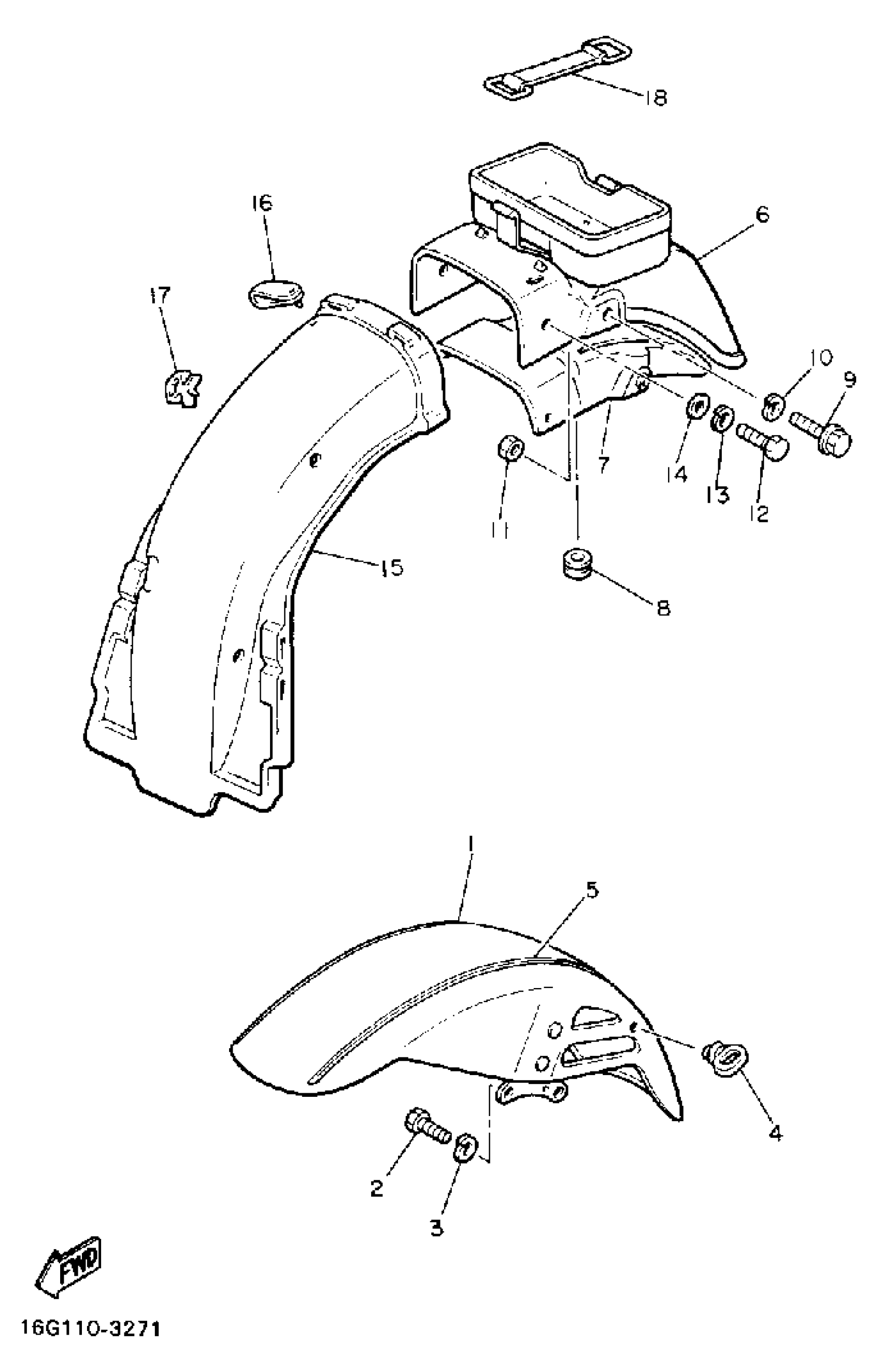

Yamaha XJ650LK (XJ650L) 1983 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

38X-W2151-00-20

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

GUIDE, WIRE

1A8-21518-00-00

$7.99

5

GRPHC SET, FRT FNDRFENDER

16G-21570-10-00

Unavailable

6

REAR FENDER

16G-W2161-11-00

Unavailable

7

REINFORCEMENT

(16G-21670-00-00)

Unavailable

8

GROMMET (438)

90480-15061-00

$8.49

9

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

10

WASHER(JN5)

92907-08100-00

$8.49

11

NUT(6TA)

95337-08600-00

$8.49

12

BOLT, HEXAGON

97017-06016-00

$8.49

13

WASHER, SPRING

92907-06100-00

$4.25

14

WASHER(6TA)

92907-06200-00

$8.49

15

GUARD, MUD

4H7-21629-00-00

Unavailable

16

CLAMP (2H7)

90464-12027-00

Unavailable

17

CLAMP (1J7)

90464-16021-00

Unavailable

18

BAND, BATTERY

116-82131-00-00

Unavailable
