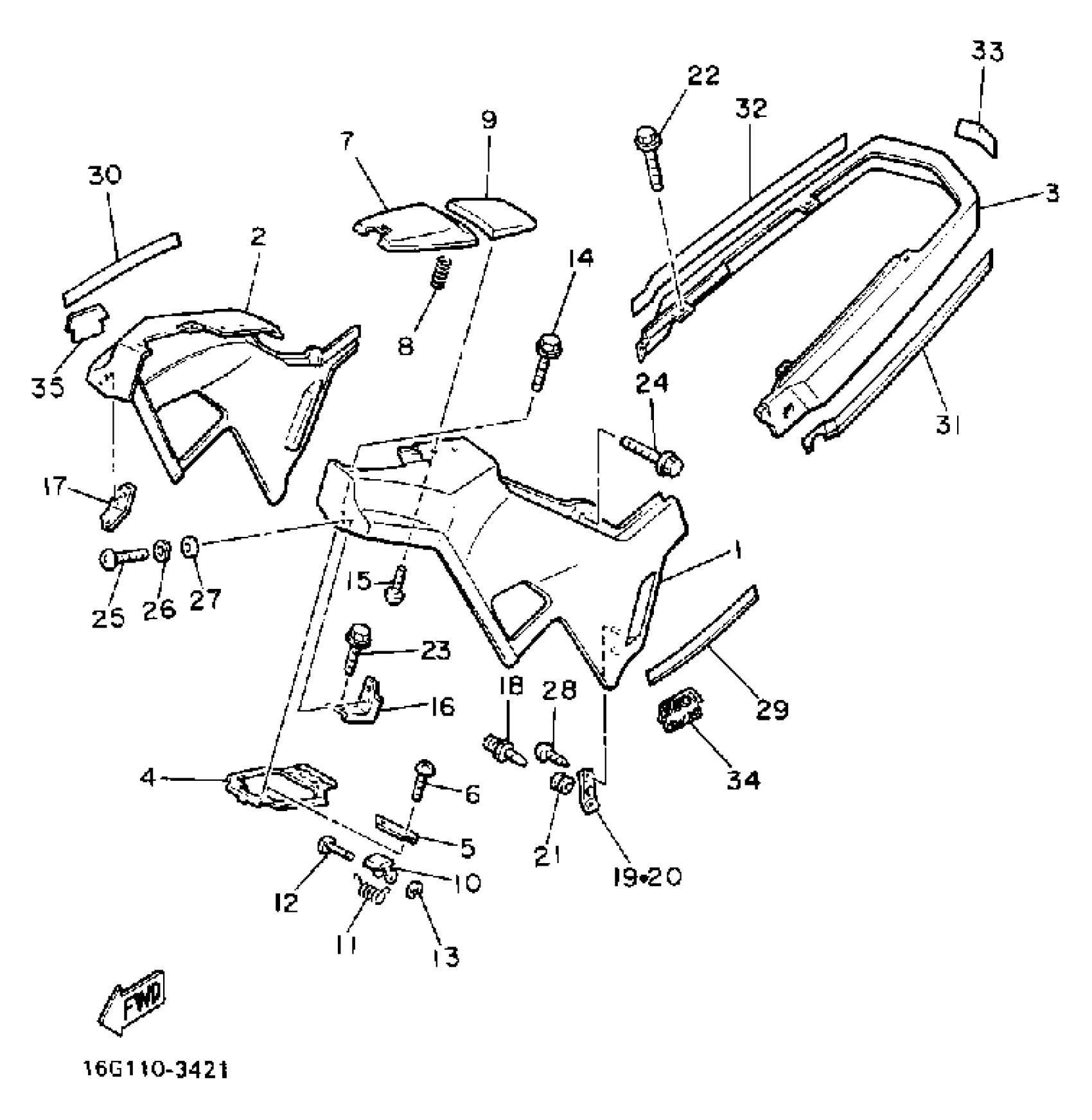

Yamaha XJ650LK (XJ650L) 1983 FAIRING 2 Diagram

#

Description

Price

1

BODY, REAR 1

16G-2835N-00-20

Unavailable

2

BODY, REAR 2

16G-2835R-00-20

Unavailable

3

BODY, REAR 3

16G-2835T-00-20

Unavailable

4

BRACKET

16G-28366-00-00

Unavailable

5

STAY, LEG SHIELD R

16G-28336-00-00

Unavailable

6

SCREW, PAN

98507-03006-00

$8.49

7

COVER

16G-28365-00-00

Unavailable

8

SPRING, COMPRESSION

90501-14280-00

Unavailable

9

PAD

16G-28378-00-00

Unavailable

10

HOOK

16G-28379-00-00

Unavailable

11

SPRING,TORSION

90508-104A1-00

Unavailable

12

PIN (813)

90249-03017-00

$7.49

13

CIRCLIP (604)

93430-02001-00

$8.49

14

BOLT, WITH WASHER(55K)

90119-06117-00

$4.29

15

SCREW, TAPPING(61A)

97780-50612-00

Unavailable

16

STAY, LEG SHIELD L

16G-28321-00-00

Unavailable

17

STAY, LEG SHIELD R

16G-28322-00-00

Unavailable

18

JOINT

16G-28342-00-00

Unavailable

19

BRACKET 8

16G-2833E-00-00

Unavailable

20

BRACKET 7

16G-2833A-00-00

Unavailable

21

GROMMET(41Y)

90480-01401-00

Unavailable

22

BOLT, WITH WASHER

90119-06242-00

Unavailable

23

BOLT, WITH WASHER

90119-06242-00

Unavailable

24

BOLT, WITH WASHER

90119-06242-00

Unavailable

25

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

26

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

27

WASHER, PLAIN (646)

92990-05600-00

Unavailable

28

SCREW, TAPPING(61A)

97780-50612-00

Unavailable

29

GRAPHIC 7

16G-2839A-10-00

Unavailable

30

GRAPHIC 8

16G-2839E-10-00

Unavailable

31

GRAPHIC 9

16G-2839F-10-00

Unavailable

32

GRAPHIC 10

16G-2839G-10-00

Unavailable

33

EMBLEM 1

(16G-2839H-00-00)

Unavailable

34

EMBLEM 1

16G-21781-00-00

Unavailable

35

EMBLEM 1

16G-21781-00-00

Unavailable
