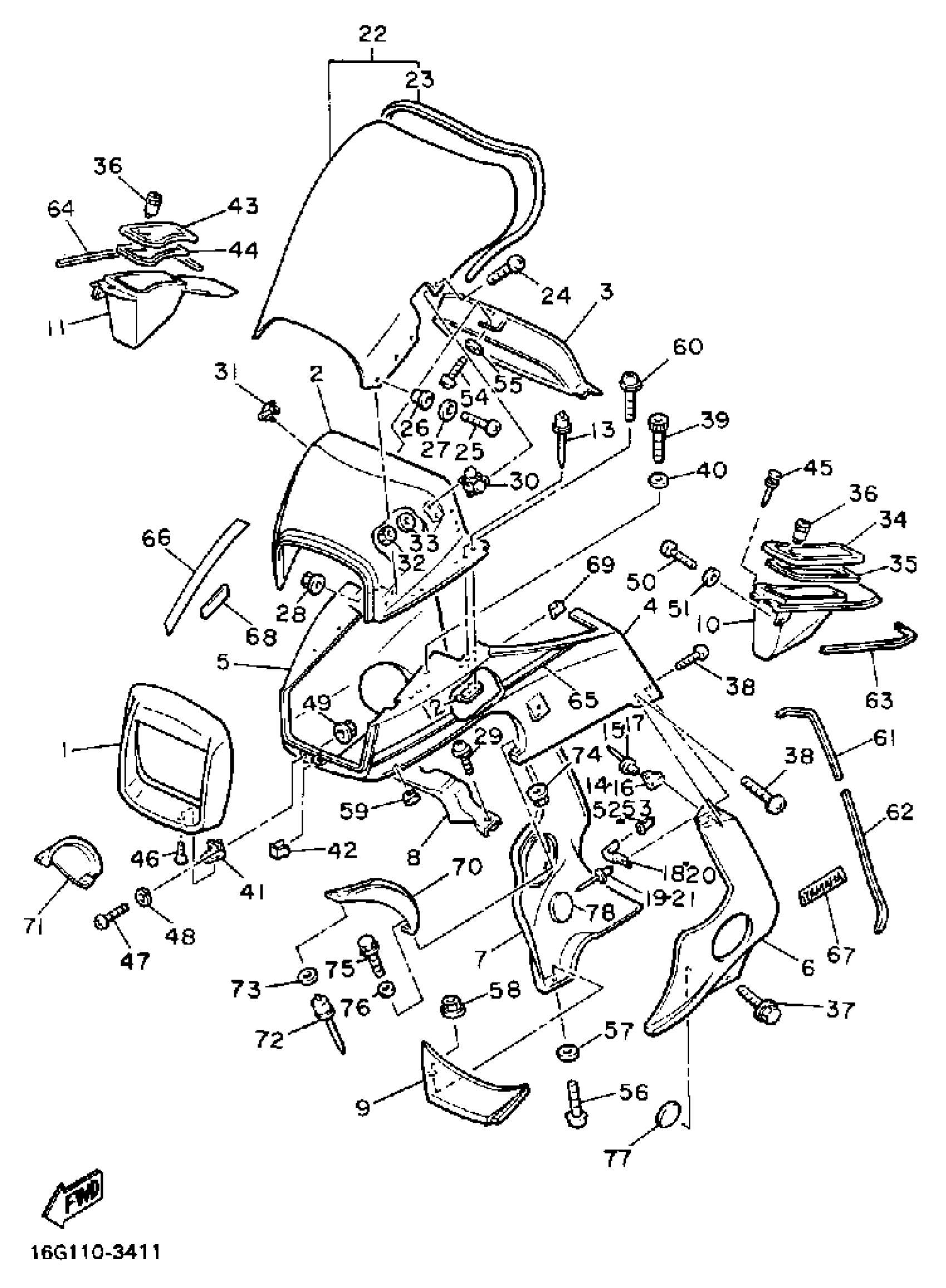

Yamaha XJ650LK (XJ650L) 1983 FAIRING 1 Diagram

#

Description
Price

1

RIM, HEADLIGHT

16G-2835A-00-20

Unavailable

2

HOOD 1 (16G-2835E-00-98)

16G-2835E-01-98

Unavailable

3

HOOD 2

16G-2835F-00-00

Unavailable

4

BODY, FRONT UPPER 1

16G-2835G-00-20

Unavailable

5

BODY, FRONT UPPER 2

16G-2835H-00-20

Unavailable

6

BODY, FRONT LOWER 1

16G-2835J-00-20

Unavailable

7

BODY, FRONT LOWER 2

16G-2835K-00-20

Unavailable

8

COVER, COOLER

16G-2835L-01-20

Unavailable

9

FIN

16G-2835M-00-20

Unavailable

10

PANEL 1

(16G-2835U-00-00)

Unavailable

11

PANEL 2

16G-2835V-00-00

Unavailable

12

BRACKET 4

16G-2836G-00-00

Unavailable

13

RIVET, BLIND (2YK)

90267-32146-00

$7.49

14

BRACKET 5

16G-2836H-00-00

Unavailable

15

RIVET, BLIND (15A)

90267-32071-00

$1.49

16

BRACKET 6

16G-2836J-00-00

Unavailable

17

RIVET, BLIND (15A)

90267-32071-00

$1.49

18

STAY 1

16G-28356-00-00

Unavailable

19

RIVET, BLIND (15A)

90267-32071-00

$1.49

20

STAY 2

16G-28357-00-00

Unavailable

21

RIVET, BLIND (15A)

90267-32071-00

$1.49

22

WINDSCREEN ASSEMBLY

16G-28380-00-00

Unavailable

23

. TRIM

16G-28376-02-00

Unavailable

24

SCREW, PAN HEAD

90157-05032-00

Unavailable

25

SCREW, PAN HEAD

90157-05033-00

Unavailable

26

BUSH, SOLID (16G)

90381-05041-00

Unavailable

27

WASHER, PLATE (5F9)

90202-05123-00

Unavailable

28

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

29

SCREW, WITH WASHER (1W4)

90159-06016-00

Unavailable

30

BRACKET, MIRROR 1

16G-2629N-00-00

Unavailable

31

BRACKET, MIRROR 1

16G-2629R-00-00

Unavailable

32

NUT(650)

95380-06700-00

Unavailable

33

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

34

PLATE 1

16G-28396-00-00

Unavailable

35

DAMPER 5

16G-2837J-00-00

Unavailable

36

SIDE COVER LOCK ASSY

26H-21708-00-00

Unavailable

37

BOLT, WITH WASHER

90119-06242-00

Unavailable

38

SCREW, ROUND HEAD(3JM)

90150-06037-00

Unavailable

39

BOLT, SOCKET

91317-08025-00

Unavailable

40

WASHER(6TC)

92907-08200-00

Unavailable

41

BRACKET

16G-28367-00-00

Unavailable

42

BRACKET 2

16G-2836F-00-00

Unavailable

43

PLATE 2

16G-28397-00-00

Unavailable

44

DAMPER 6

16G-2837K-00-00

Unavailable

45

DAMPER

16G-28372-00-00

Unavailable

46

SCREW, FLAT

98707-05012-00

Unavailable

47

SCREW, PAN HEAD

90157-05M19-00

Unavailable

48

WASHER(3SX)

92907-05100-00

Unavailable

49

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

50

SCREW, TAPPING(61A)

97780-50612-00

Unavailable

51

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

52

GROMMET

90480-16185-00

Unavailable

53

GROMMET

90480-16185-00

Unavailable

54

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

Unavailable

55

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

56

SCREW PAN HEAD

98580-06020-00

Unavailable

57

WASHER, PLAIN (646)

92990-06600-00

Unavailable

58

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

59

GROMMET (397)

90480-10068-00

Unavailable

60

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

61

MOLD 1

16G-28345-00-00

Unavailable

62

MOLD 2

16G-28346-00-00

Unavailable

63

MOLD COMP. 1

16G-2830L-00-00

Unavailable

64

MOLD COMP.2

16G-2830M-00-00

Unavailable

65

GRAPHIC 3

(16G-28393-10-00)

Unavailable

66

GRAPHIC 4

16G-28394-10-00

Unavailable

67

EMBLEM 1

3X0-24161-20-00

Unavailable

68

EMBLEM 1

3X0-24161-20-00

Unavailable

69

CLIP, COWLING

16G-28334-00-00

Unavailable

70

SCOOP, AIR 1

16G-2137W-00-00

Unavailable

71

SCOOP, AIR 2

16G-2137X-00-00

Unavailable

72

RIVET, BLIND (2YK)

90267-32146-00

$7.49

73

WASHER, PLAIN LARGE

92907-03200-00

Unavailable

74

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

75

BOLT, FLANGE

95817-06040-00

Unavailable

76

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

77

DAMPER

16G-28371-00-00

Unavailable

78

DAMPER

16G-28371-00-00

Unavailable
