Description

Price

1

JOINT, CARBURETOR 1

16G-13586-00-00

Unavailable

2

JOINT, CARBURETOR 2

16G-13596-00-00

Unavailable

3

O-RING(2TY)

93210-36769-00

$11.49

4

PLUG, BLIND

16G-13569-00-00

$7.99

5

CLIP (3G0)

90467-10039-00

$9.49

6

BOLT,SOCKET

91317-06020-00

Unavailable

7

CLAMP, HOSE

90460-49198-00

Unavailable

8

HOSE

(90445-08633-00)

Unavailable

9

CLIP (16G)

90467-08021-00

$8.49

10

STAY, REGULATOR

(16G-13997-01-00)

Unavailable

11

SCREW PAN HEAD

98580-06010-00

$8.49

12

WASHER, SPRING

92995-06100-00

Unavailable

13

AIR CLNR CASE ASSEMBLYASSY

16G-14401-00-00

Unavailable

14

ELEMENT, AIR CLNR

16G-14451-00-00

Unavailable

15

CASE, AIR CLEANER 2

16G-14421-00-00

Unavailable

16

STAY 2

(16G-14499-00-00)

Unavailable

17

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

18

SCREW, TAPPING(6U1)

97780-50610-00

Unavailable

19

UNAVAILABLE IN PRICE BOOK (92502-06016-00)

92503-06016-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

BOLT (661)

97013-06012-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

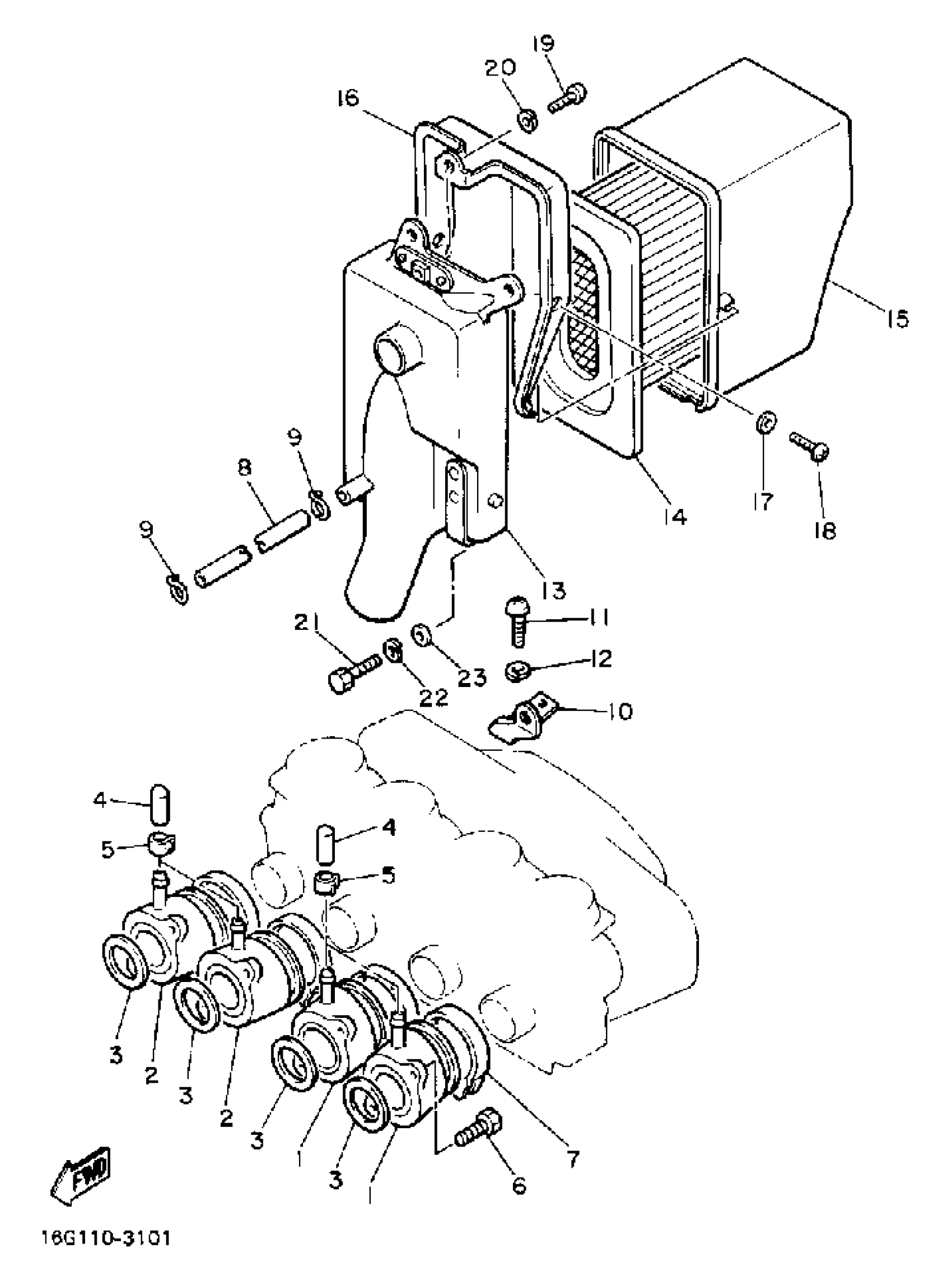

Yamaha XJ650LK (XJ650L) 1983 AIR FILTER Diagram

JOINT, CARBURETOR 1

JOINT, CARBURETOR 2

O-RING(2TY)

PLUG, BLIND

CLIP (3G0)

BOLT,SOCKET

CLAMP, HOSE

HOSE

CLIP (16G)

STAY, REGULATOR

SCREW PAN HEAD

WASHER, SPRING

AIR CLNR CASE ASSEMBLYASSY

ELEMENT, AIR CLNR

CASE, AIR CLEANER 2

STAY 2

WASHER, PLATE 8067717800

SCREW, TAPPING(6U1)

UNAVAILABLE IN PRICE BOOK (92502-06016-00)

WASHER, SPRING

BOLT (661)

WASHER, SPRING

WASHER, PLAIN (646)
