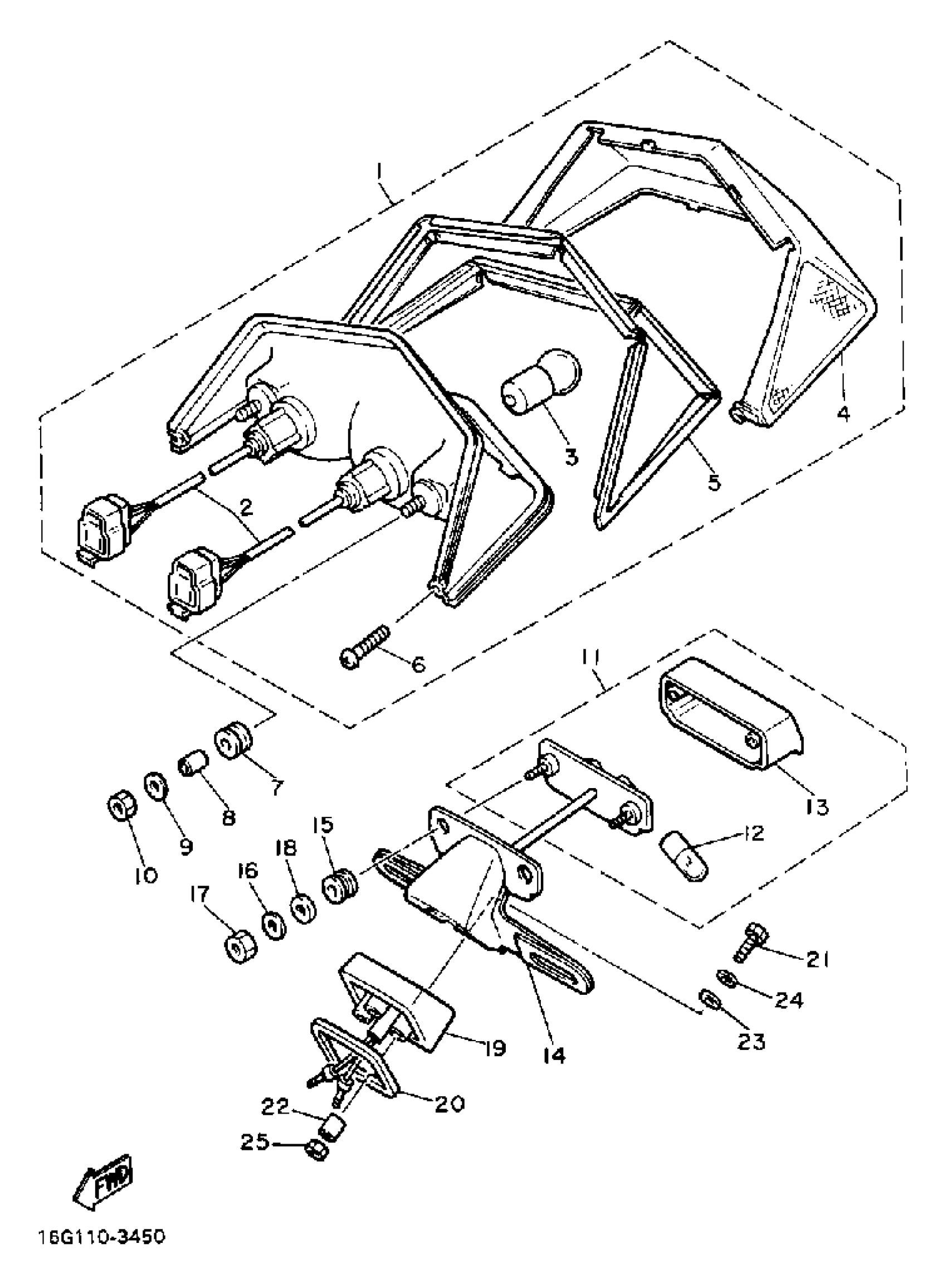

Yamaha XJ650LJ (XJ650L) 1982 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

16G-84710-60-00

Unavailable

2

CORD ASSEMBLY

(4G0-84735-00-00)

Unavailable

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

4

. LENS, TAILLIGHT

16G-84721-60-00

Unavailable

5

. GASKET, TAIL LENS

16G-84723-00-00

Unavailable

6

SCREW, PAN TAP.2 SLIT

97707-40610-00

$8.49

7

DAMPER (11H-83541-00)

16G-84736-00-00

Unavailable

8

COLLAR

90387-06387-00

Unavailable

9

WASHER, PLATE (J10)

90201-06697-00

$8.49

10

NUT, HEXAGON

95380-06600-00

Unavailable

11

LICENSE LIGHT UNIT ASSY (4H3-84745-60-00)

2AX-84745-00-00

Unavailable

12

. BULB, METER 12V 38W

3F9-84744-00-XX

Unavailable

13

. BODY, LICENSE LIGHT

2AX-84749-00-00

Unavailable

14

BRACKET, LICENSE

11H-84751-00-00

Unavailable

15

DAMPER

3G1-84553-00-00

Unavailable

16

WASHER, SPECIAL

3F9-84754-00-00

Unavailable

17

NUT (CROWN)

95303-05800-00

Unavailable

18

SPACER

3G1-84729-00-00

Unavailable

19

DAMPER

(16G-84753-00-00)

Unavailable

20

DAMPER

3G1-84753-60-00

Unavailable

21

BOLT, HEXAGON

97013-06050-00

Unavailable

22

COLLAR

90387-064G4-00

Unavailable

23

WASHER, PLAIN

92990-08200-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

NUT, HEXAGON

95380-06600-00

Unavailable
