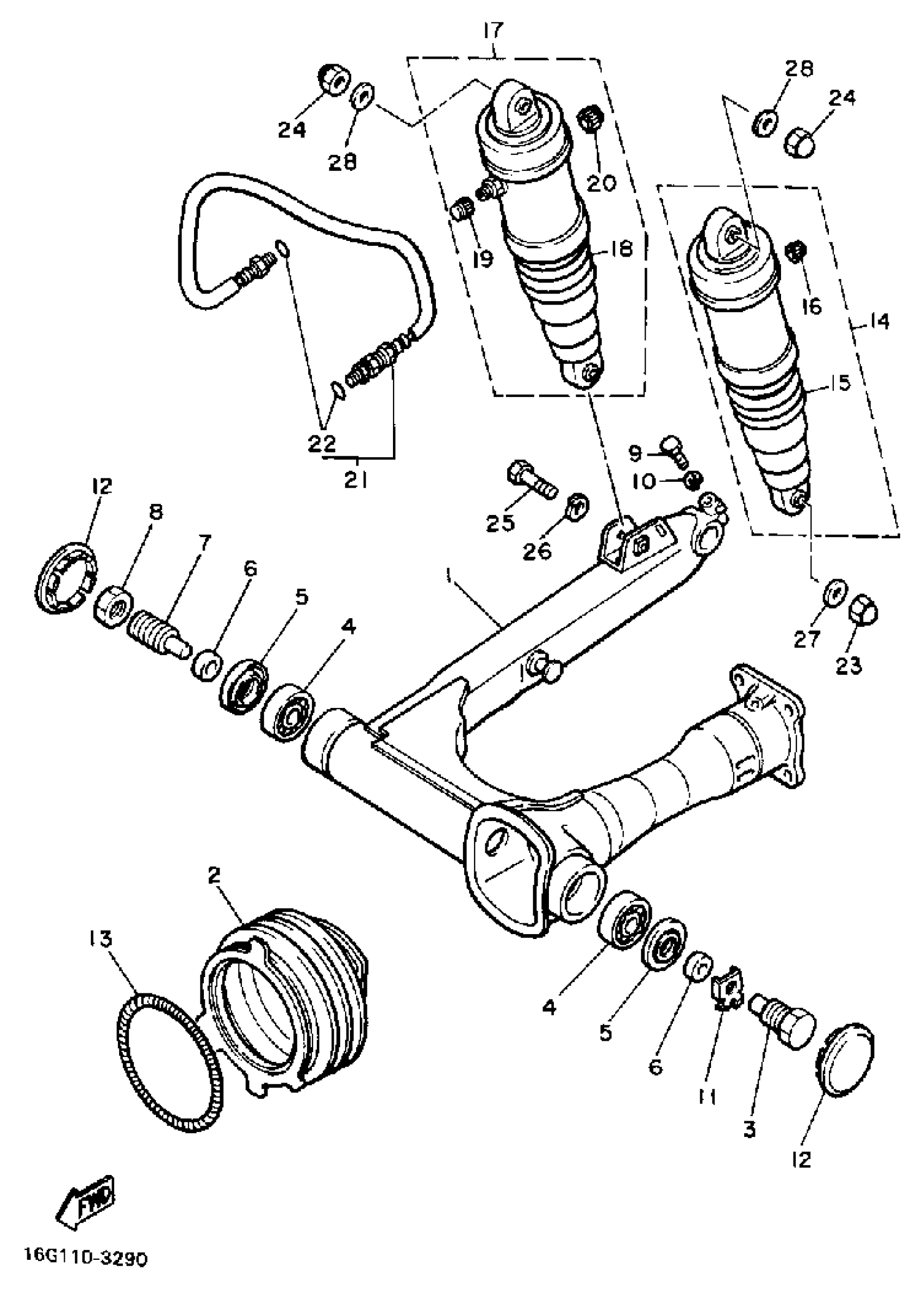

Yamaha XJ650LJ (XJ650L) 1982 SWING ARM REAR SHOCKS Diagram

#

Description
Price

1

REAR ARM (4H7-22110-00-98)

16G-22110-00-98

Unavailable

2

BOOT, RUBBER

4H7-22189-00-00

Unavailable

3

SHAFT, PIVOT

4H7-22141-00-00

$36.99

4

BRG,CYL-CAL ROLLER 74G KY

93332-00010-00

$47.99

5

OIL SEAL (25X40X5-101)

93102-25017-00

$5.60

6

COLLAR

90387-17011-00

$15.99

7

SHAFT, PIVOT

15B-22141-00-00

Unavailable

8

NUT, PIVOT SHAFT

1J7-22143-00-00

$23.99

9

BOLT

97017-08035-00

Unavailable

10

WASHER(JN5)

92907-08100-00

$8.49

11

WASHER, LOCK(10H)

90215-22238-00

$11.49

12

COVER

2H7-2219X-00-00

$35.99

13

SPRING, TENSION (1J7)

90506-07136-00

$12.49

14

REAR SHOCK 1

(16G-22203-00-00)

Unavailable

15

BOOT, RR SHK/ABS

(16G-22263-00-00)

Unavailable

16

CAP, AIR VALVE

509-23184-L0-00

Unavailable

17

REAR SHOCK 2ABSORBER 2

16G-22204-00-00

Unavailable

18

BOOT, RR SHK/ABS

(16G-22263-00-00)

Unavailable

19

CAP, AIR VALVE

509-23184-L0-00

Unavailable

20

. CAP, AIR VALVE

10M-23184-00-00

Unavailable

21

HOSE, JOINT

16G-22255-00-00

Unavailable

22

O-RING

3J2-23147-00-00

Unavailable

23

NUT, CROWN(3BM)

90176-10073-00

Unavailable

24

NUT, CAP (371)

90176-10009-00

Unavailable

25

BOLT,DOME HEAD

90106-10052-00

Unavailable

26

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

27

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

28

WASHER PLATE 341222430000

90201-10142-00

Unavailable
