Description

Price

1

BOX

(16G-21240-00-00)

Unavailable

2

BOLT, HEXAGON

97017-06025-00

$4.24

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06747-00

$8.49

5

COLLAR

90387-06113-00

$11.49

6

GROMMET (2N3)

90480-16233-00

$8.49

7

BOLT (682)

97013-08025-00

$8.49

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

COLLAR (21X)

90387-093H1-00

Unavailable

10

DAMPER

4H7-21746-00-00

Unavailable

11

HOOK, BANK

4H7-2175R-00-00

Unavailable

12

PLATE, BRIDGE

(16G-21243-01-00)

Unavailable

13

SCREW PAN HEAD

98580-06020-00

$8.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLATE

90201-06020-00

$9.49

16

HOLDER, FUSE

(16G-21361-01-00)

Unavailable

17

BOX

(16G-21258-00-00)

Unavailable

18

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

19

WASHER(1RW)

92907-05600-00

Unavailable

20

WHEEL LOCK ASSEMBLY (4X7-W2171-00)

4W5-W2171-00-00

Unavailable

21

TOOL KIT (16G-28100-10)

1FG-28100-00-00

Unavailable

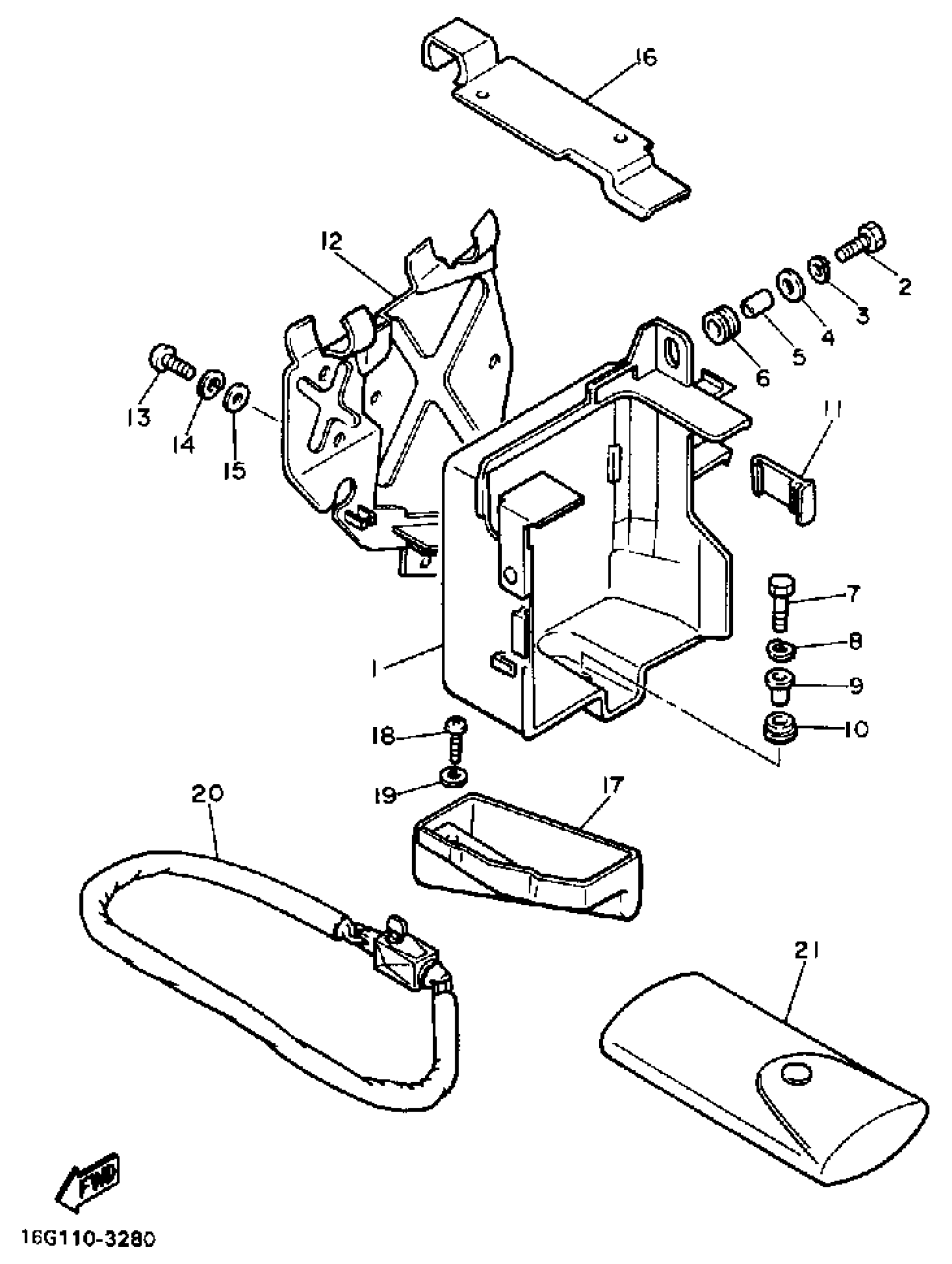

Yamaha XJ650LJ (XJ650L) 1982 SIDE COVER TOOL Diagram

BOX

BOLT, HEXAGON

WASHER, SPRING

WASHER, PLATE

COLLAR

GROMMET (2N3)

BOLT (682)

YBS67-8 WASHER, SPRING

COLLAR (21X)

DAMPER

HOOK, BANK

PLATE, BRIDGE

SCREW PAN HEAD

WASHER, SPRING

WASHER, PLATE

HOLDER, FUSE

BOX

SCREW, PAN HEAD(3LA)

WASHER(1RW)

WHEEL LOCK ASSEMBLY (4X7-W2171-00)

TOOL KIT (16G-28100-10)
