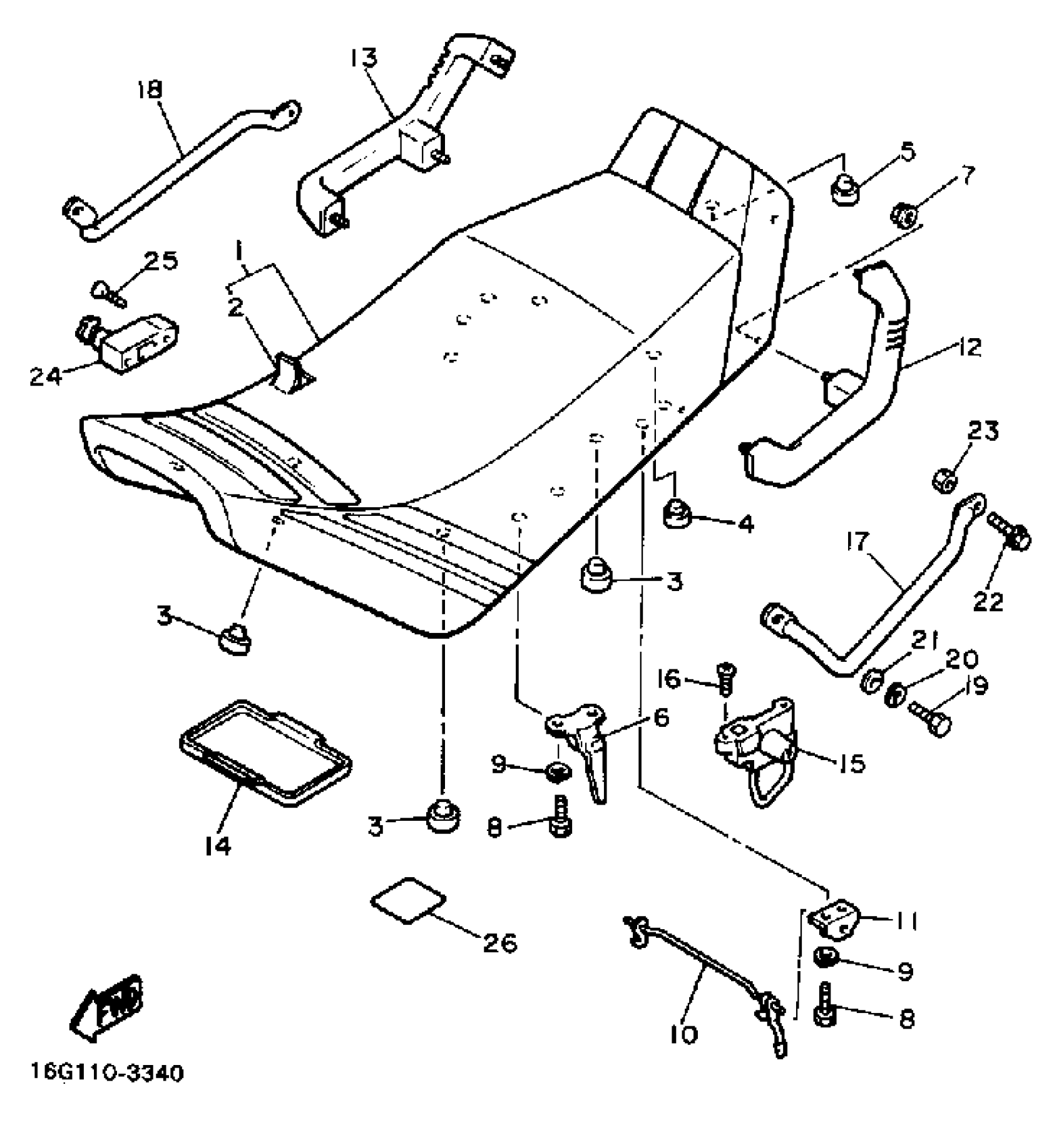

Yamaha XJ650LJ (XJ650L) 1982 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

16G-W2472-00-00

Unavailable

2

COVER, DOUBLE SEAT

(16G-24731-00-00)

Unavailable

3

PAD, SEAT

1T4-24741-00-00

Unavailable

4

STOPPER MAIN STAND

278-27114-00-00

$8.99

5

STOPPER

1M3-27114-00-00

$8.99

6

BRACKET, SEAT

4K0-24728-00-00

Unavailable

7

NUT, FLANGE

95704-08500-00

$8.49

8

BOLT, HEXAGON

97017-06016-00

$8.49

9

WASHER, SPRING

92907-06100-00

$4.25

10

LEVER, SEAT

(16G-24776-00-00)

Unavailable

11

BRACKET, SEAT

(5A8-24738-00-00)

Unavailable

12

ASSIST, GRIP

16G-2474A-00-00

Unavailable

13

HANDLE, SEAT

16G-24773-00-00

Unavailable

14

LID

395-28185-00-00

Unavailable

15

HELMET HANGER ASSY

26H-21308-01-00

$82.99

16

SCREW, BINDING

98907-06008-00

Unavailable

17

HANDLE, STANDING

16G-21165-01-00

Unavailable

18

STAY, REAR

16G-21275-01-00

Unavailable

19

BOLT, HEXAGON

97017-06016-00

$8.49

20

WASHER, SPRING

92907-06100-00

$4.25

21

WASHER(6TA)

92907-06600-00

Unavailable

22

BOLT, FLANGE

95817-08012-00

Unavailable

23

NUT(JN5)

95317-06700-00

Unavailable

24

SEAT LOCK ASSEMBLY

16G-24705-00-00

Unavailable

25

SCREW (3H1)

90149-06150-00

Unavailable

26

PLATE, SPEC

(16G-21683-00-00)

Unavailable
