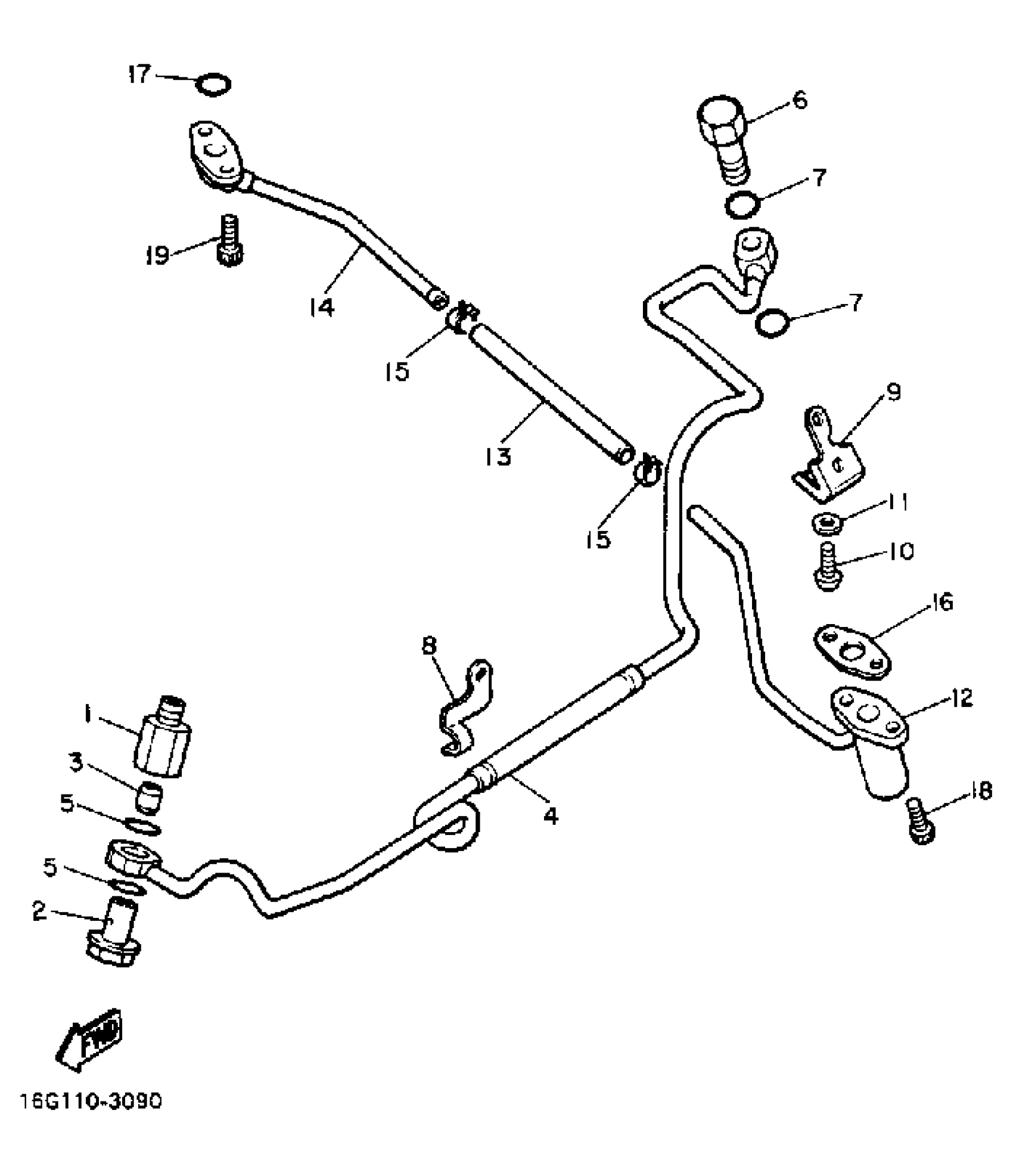

Yamaha XJ650LJ (XJ650L) 1982 OIL PIPE FOR TURBO Diagram

#

Description
Price

1

SEAT, VALVE

16G-13479-00-00

Unavailable

2

RELIEF VALVE ASSEMBLY

16G-13490-00-00

Unavailable

3

STRAINER 2

16G-13421-00-00

Unavailable

4

PIPE, DELIVERY 1

16G-13161-01-00

Unavailable

5

GASKET

90430-16048-00

Unavailable

6

BOLT, UNION (16G)

90401-10084-00

$14.99

7

GASKET (5R6)

90430-10171-00

$3.18

8

CLAMP

90465-04197-00

Unavailable

9

CLAMP

(90465-10212-00)

Unavailable

10

SCREW, PAN

98517-06012-00

$3.78

11

WASHER(6TA)

92907-06600-00

$2.72

12

PIPE, OIL 1

16G-13416-00-00

Unavailable

13

PIPE, OIL DRAIN 1

(16G-13431-00-00)

Unavailable

14

PIPE, OIL 2

16G-13418-00-00

Unavailable

15

CLIP(3YX)

90467-13133-00

$8.49

16

GASKET

16G-13475-10-00

Unavailable

17

O-RING (371)

93210-10197-00

Unavailable

18

BOLT,SOCKET

91317-06012-00

Unavailable

19

BOLT,SOCKET

91317-06016-00

Unavailable
