Description

Price

1

COVER, OIL ELEMENT

4K0-13447-00-00

Unavailable

2

ELEMENT, OIL CLEANER

1L9-13441-11-00

$9.99

3

GROMMET (1L9)

90480-23193-00

Unavailable

4

BY-PASS VALVE ASSY

1L9-13340-01-00

Unavailable

5

O-RING (26H)

93210-16629-00

$7.49

6

UNAVAILABLE IN PRICE BOOK

93210-08723-00

Unavailable

7

WASHER, PLATE (1L9)

90201-21608-00

$8.49

8

SPRING, COMPRESSION (1L9)

90501-20422-00

$8.49

9

COVER, STRAINER

(16G-13417-02-00)

Unavailable

10

PLATE, BAFFLE LOWER

4H7-13337-00-00

$7.99

11

SCREW PAN HEAD

98580-06010-00

$8.49

12

GASKET, STRAINER COVER

4BB-13414-00-00

$30.99

13

PIN, DOWEL(3XW)

91808-16023-00

$8.49

14

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

15

GASKET

214-11198-01-00

$3.17

16

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

17

BOLT,SOCKET

91317-06040-00

Unavailable

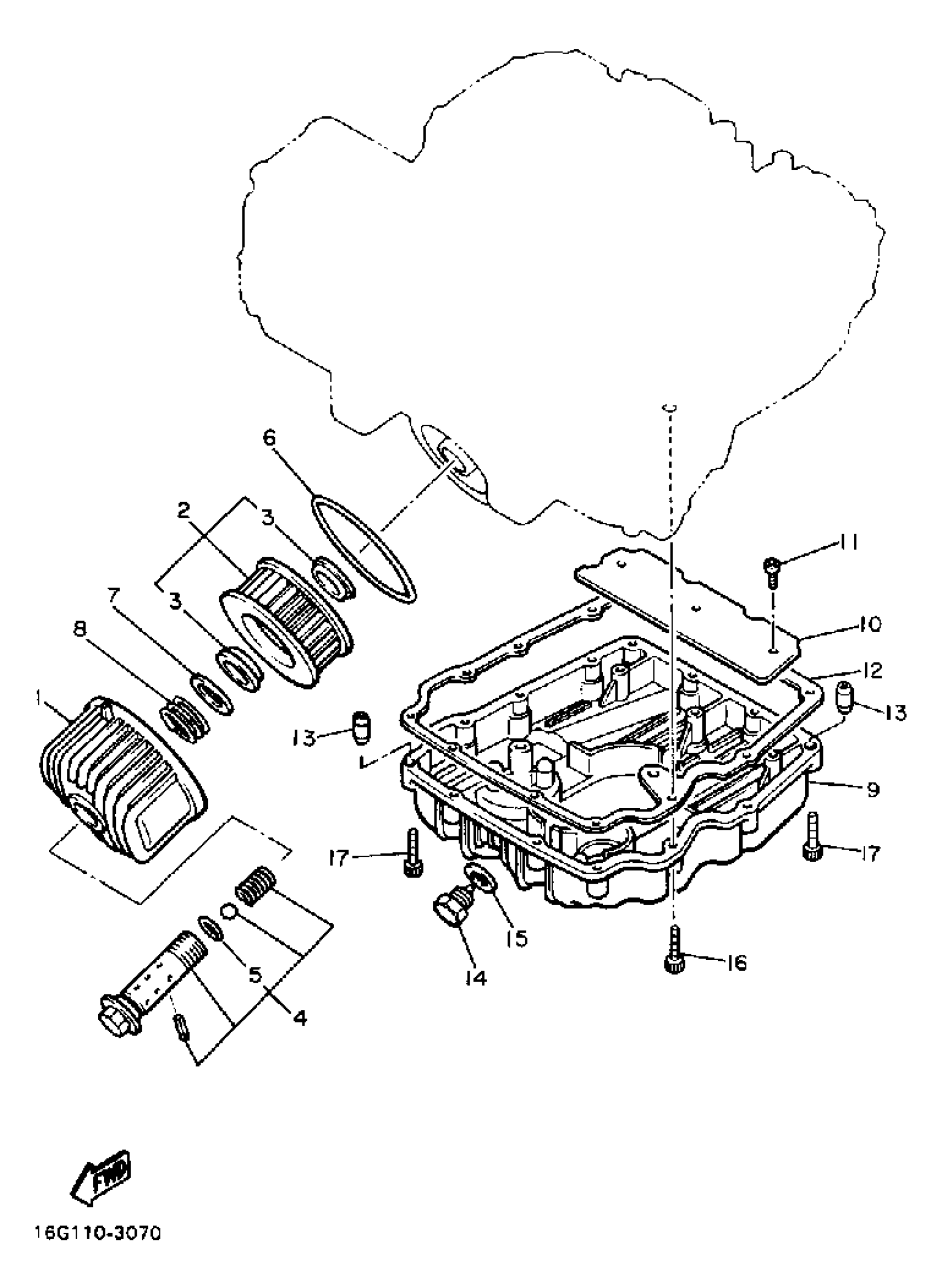

Yamaha XJ650LJ (XJ650L) 1982 OIL FILTER Diagram

COVER, OIL ELEMENT

ELEMENT, OIL CLEANER

GROMMET (1L9)

BY-PASS VALVE ASSY

O-RING (26H)

UNAVAILABLE IN PRICE BOOK

WASHER, PLATE (1L9)

SPRING, COMPRESSION (1L9)

COVER, STRAINER

PLATE, BAFFLE LOWER

SCREW PAN HEAD

GASKET, STRAINER COVER

PIN, DOWEL(3XW)

PLUG, STRAIGHT SCREW(3FA)

GASKET

BOLT, HEXAGON SOCKET HEAD(1VJ)

BOLT,SOCKET
