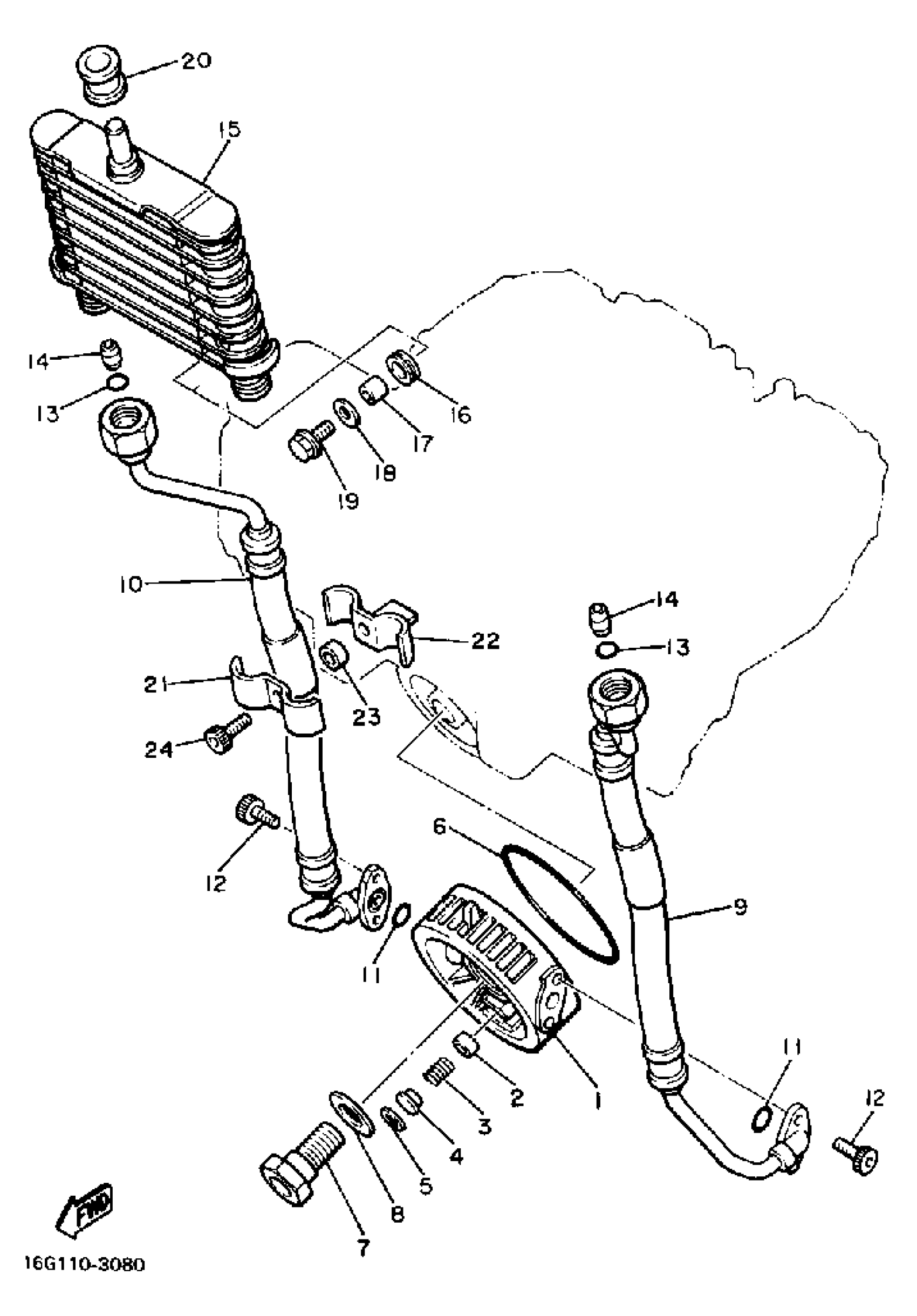

Yamaha XJ650LJ (XJ650L) 1982 OIL COOLER Diagram

#

Description
Price

1

PLATE, ADAPTOR

5N1-13461-01-00

Unavailable

2

PLUNGER

4KM-13493-00-00

$6.99

3

SPRING, COMPRESSION (1J7)

90501-12413-00

Unavailable

4

WASHER (2H9)

90209-06173-00

$15.99

5

CIRCLIP(24H)

99009-17500-00

$7.49

6

UNAVAILABLE IN PRICE BOOK

93210-08723-00

Unavailable

7

BOLT, UNION

90401-20089-00

Unavailable

8

WASHER, PLATE (888)

90201-25526-00

$9.49

9

HOSE, OIL 1

16G-13464-00-00

Unavailable

10

INACTIVE PART NUMBER

16G-13465-00-00

Unavailable

11

O-RING (371)

93210-10197-00

$7.49

12

BOLT,SOCKET

91317-06016-00

$1.25

13

O-RING (256)

93210-12152-00

$7.49

14

PIN, DOWEL

99530-12016-00

$4.89

15

OIL COOLER ASSEMBLY

16G-13470-01-00

Unavailable

16

GROMMET(2GH)

90480-12475-00

Unavailable

17

COLLAR

90387-06113-00

Unavailable

18

WASHER

90209-06012-00

Unavailable

19

BOLT, FLANGE

95817-06020-00

Unavailable

20

GROMMET

90480-16284-00

Unavailable

21

CLAMP (4K0)

90462-10066-00

Unavailable

22

CLAMP

(90462-10095-00)

Unavailable

23

COLLAR (1T2)

90387-07598-00

Unavailable

24

BOLT,SOCKET

91317-06025-00

Unavailable
