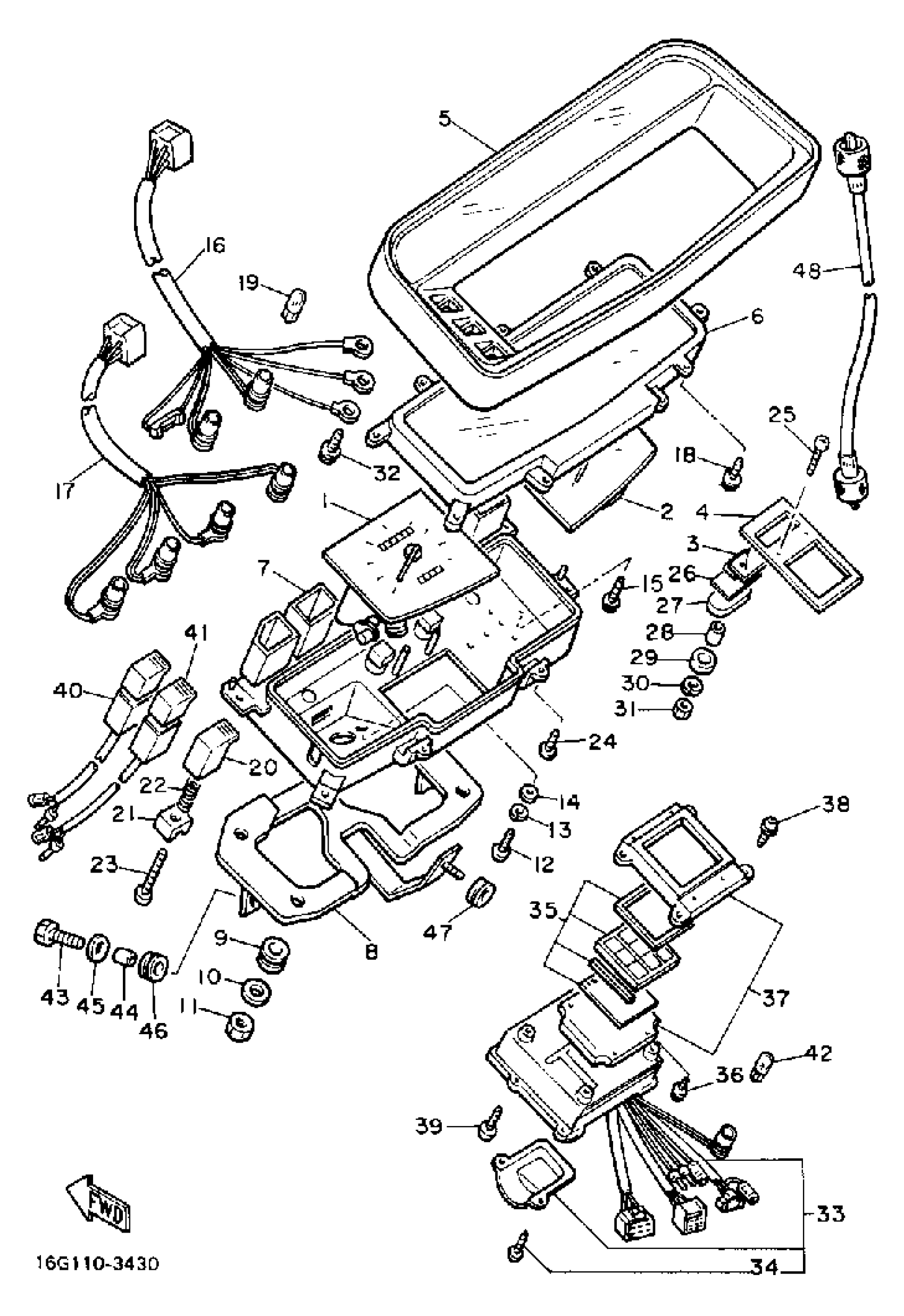

Find the part on the Meter diagram for your 1982 Yamaha XJ650L (XJ650LJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XJ650L (XJ650LJ) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

16G-83570-A0-00

1
Out of stock

2

TACHOMETER ASSEMBLY

(16G-83540-00-00)

1
Out of stock

3

BOOST PRSSRMTR ASSEMBLY

(16G-83680-00-00)

1
Out of stock

4

PANEL METER 2

(16G-83613-00-00)

1
Out of stock

5

COVER, METER

16G-83559-00-00

1
Out of stock

6

CASE UPPER

16G-8353G-00-00

1
Out of stock

7

CASE, INNER

16G-8353H-00-00

1
Out of stock

8

BRACKET, METER

16G-83519-00-00

1
Out of stock

9

DAMPER

5G2-83523-00-00

1
Out of stock

10

WASHER, PLATE

90201-06020-00

1

$6.28

In stock

11

NUT(650)

95380-06700-00

1

$6.17

In stock

12

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

13

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

14

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

15

SCREW, WITH WASHER

90159-04043-00

1
Out of stock

16

SOCKET CORD ASSEMBLY

(16G-83520-10-00)

1
Out of stock

17

SOCKET CORD ASSEMBLY

(16G-83509-00-00)

1
Out of stock

18

SCREW, WITH WASHER

90159-03044-00

1
Out of stock

19

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

20

KNOB, TRIP METER

16G-83578-00-00

1
Out of stock

21

LEVER, TRIP METER

(16G-8353Y-00-00)

1
Out of stock

22

SPRING, METER

(16G-83515-00-00)

1
Out of stock

23

. SCREW, TAPPING

90167-03058-00

1
Out of stock

24

SCREW, TAPPING

(90164-04011-00)

1
Out of stock

25

. SCREW, TAPPING

90167-03058-00

1
Out of stock

26

PLATE, FITTING

(16G-83544-00-00)

1
Out of stock

27

DAMPER

(16G-83523-00-00)

1
Out of stock

28

COLLAR

(16G-83522-00-00)

1
Out of stock

29

DAMPER 2

(4G0-83526-00-00)

1
Out of stock

30

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

31

NUT(6L4)

95380-04700-00

—

$5.62

In stock

32

SCREW, WITH WASHER

90159-03044-00

1
Out of stock

33

PRINT BOARD ASSEMBLY

(10M-W8352-00-00)

1
Out of stock

34

SCREW, TAPPING (97702-40508-00)

97701-40508-00

1
Out of stock

35

LCD UNIT SET

(16G-W8351-00-00)

1
Out of stock

36

SCREW, WITH WASHER

(90159-04055-00)

1
Out of stock

37

LCD UNIT HLDR SET

(16G-W8353-00-00)

1
Out of stock

38

SCREW, WITH WASHER

90159-03054-00

1
Out of stock

39

SCREW, TAPPING (5G2)

90164-04006-00

—
Out of stock

40

SWITCH, METER CNTRL

16G-8358J-10-00

1
Out of stock

41

SWITCH, METER CNTRL

16G-8358J-10-00

1
Out of stock

42

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

43

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

44

SPACER

90560-07007-00

—
Out of stock

45

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

46

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

47

GROMMET

(90480-01288-00)

1
Out of stock

48

SPEEDOMETER CABLE ASSY

4V5-83550-02-00

—

$40.63

In stock
