1982 Yamaha XJ650L (XJ650LJ) Headlight Diagram

← All diagrams

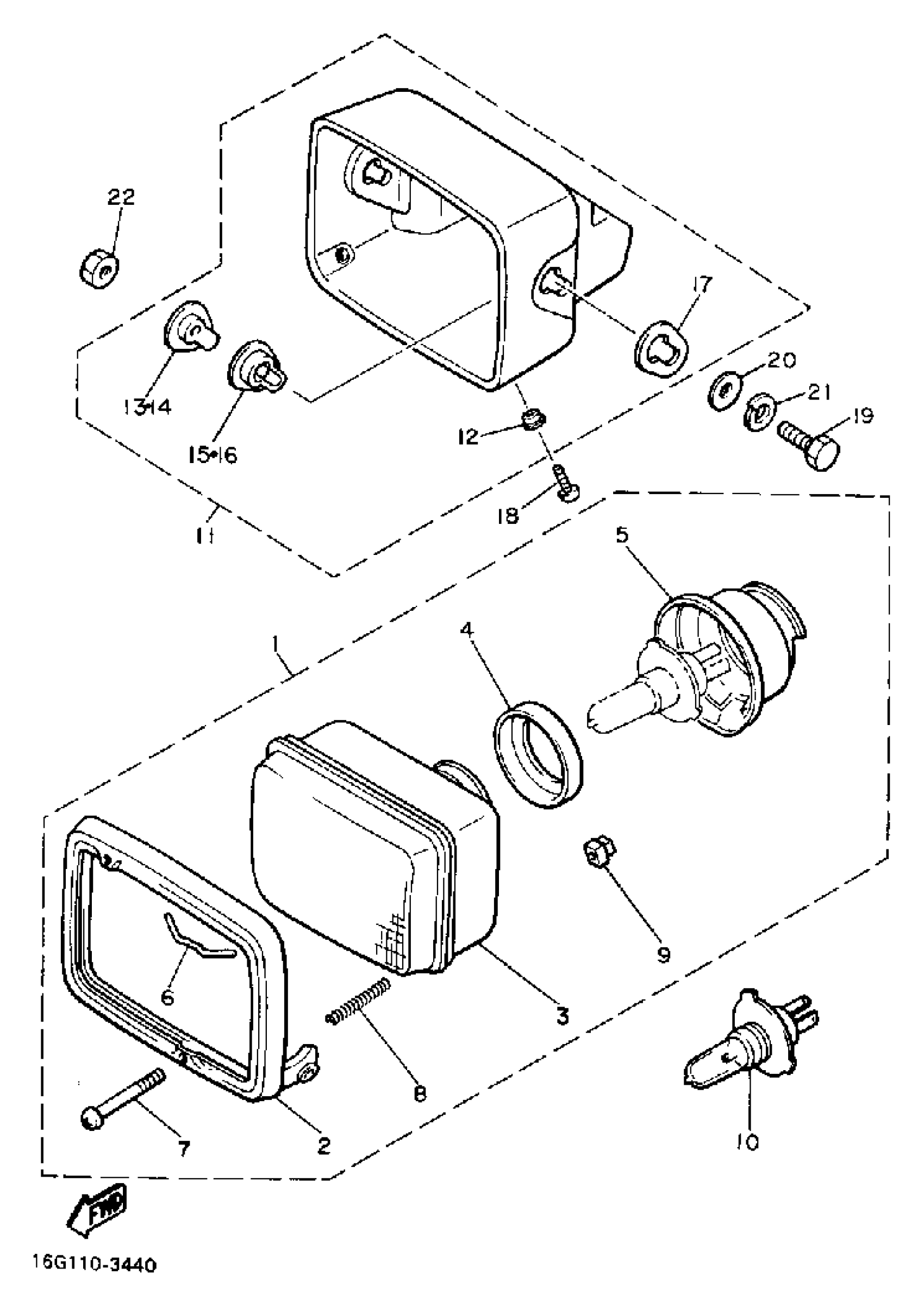

Find the part on the Headlight diagram for your 1982 Yamaha XJ650L (XJ650LJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XJ650L (XJ650LJ) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

16G-84303-A0-00

1
Out of stock

2

. RIM, HEADLIGHT

16G-84315-00-00

1
Out of stock

3

. LENS, HEADLIGHT

11H-84321-60-00

1
Out of stock

4

SETTING PLATE, BULB

2F9-84375-00-00

—

$12.66

In stock

5

COVER, SOCKET

2F9-84397-01-00

1

$27.82

In stock

6

SET SPRING

55X-84124-00-00

1

$10.82

In stock

7

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

8

SPRING, ADJUST

341-84332-60-00

1

$8.54

In stock

9

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

10

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

11

BODY ASSEMBLY

16G-84330-00-00

1
Out of stock

12

COLLAR, SCREW

5G2-84333-00-00

1

$2.57

In stock

13

COLLAR 1

5G2-84388-00-00

—

$13.17

In stock

14

. SCREW, MNTNG RING

5G2-84398-00-00

1
Out of stock

15

BUSHING 1

5G2-84366-00-00

—

$12.92

In stock

16

. DAMPER, HEADLIGHT 2

5G2-84367-00-00

1
Out of stock

17

BUSHING

5G2-84368-00-00

—

$7.77

In stock

18

SCREW, PAN

98517-05012-00

—

$3.91

In stock

19

BOLT, HEXAGON

97017-08030-00

—

$6.85

In stock

20

WASHER, PLATE (5J0)

90201-085E6-00

—
Out of stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

NUT(6L2)

95333-08600-00

—

$3.20

In stock
