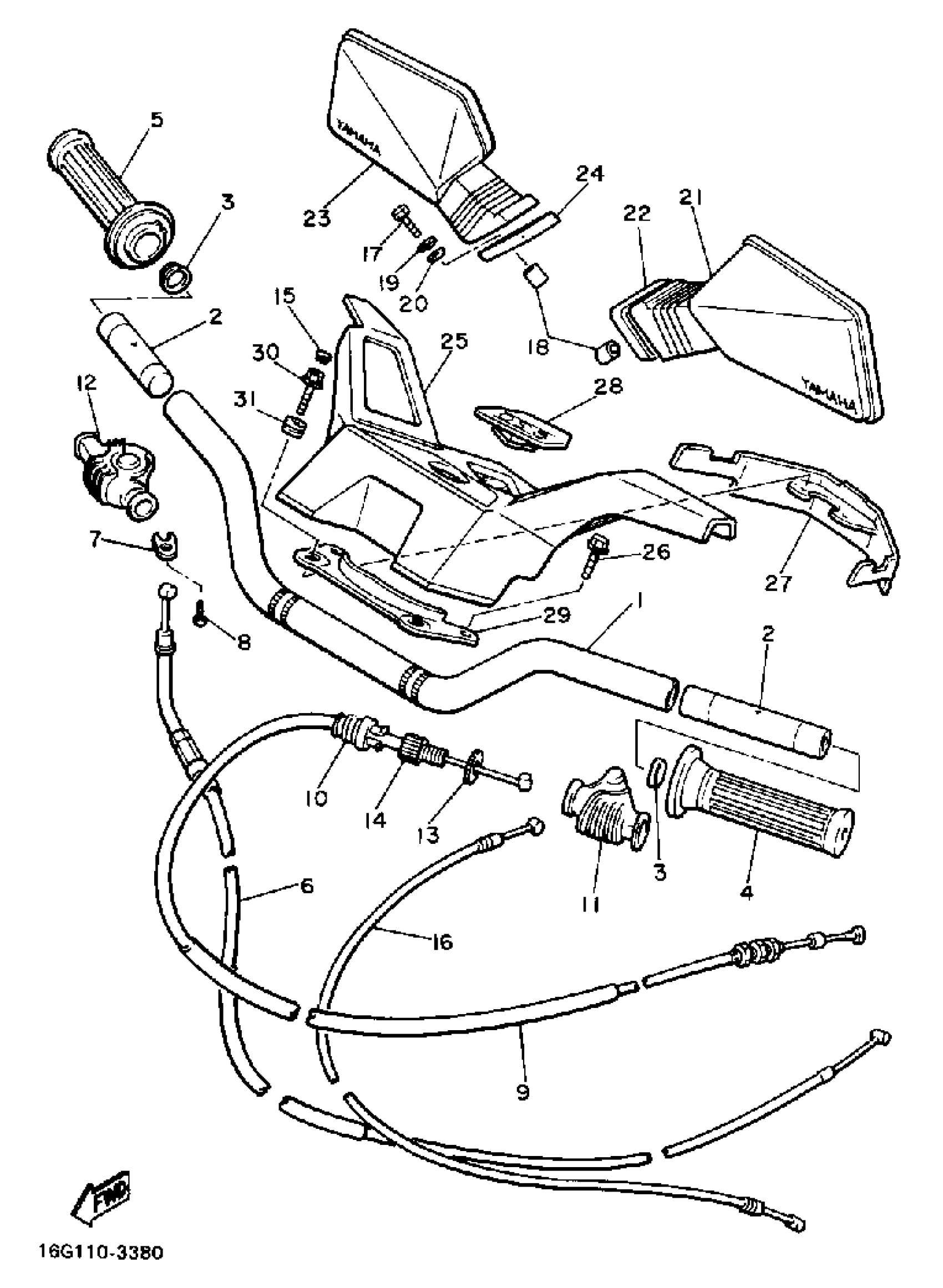

Yamaha XJ650LJ (XJ650L) 1982 HANDLEBAR CABLE Diagram

#

Description
Price

1

HANDLEBAR

16G-26111-00-00

Unavailable

2

BAR, HANDLE

4K0-26112-00-00

Unavailable

3

PLUG 288251390000

90338-18014-00

Unavailable

4

GRIP LH (L.H)

5G2-26241-00-00

Unavailable

5

GRIP ASSEMBLY

5G2-26240-00-00

Unavailable

6

CABLE, THROTTLE 1

16G-26311-00-00

Unavailable

7

HOLDER

5H0-26393-00-00

$7.99

8

GASKET, EXHAUST

98507-05008-00

$3.55

9

WIRE, CLUTCH

55U-26335-01-00

$63.99

10

BOOT, WIRE

1E6-26342-00-00

$30.99

11

COVER, HANDLE LEVER

11H-26372-00-00

Unavailable

12

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

$20.99

13

NUT

90179-08030-00

$5.49

14

BOLT

90123-08002-00

$10.49

15

CAP, BOLT (371,447)

341-23469-00-00

$9.99

16

CABLE, STARTER 1

16G-26331-00-00

Unavailable

17

SCREW 341272170000

90153-06008-00

Unavailable

18

COLLAR

90387-06113-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

BACK MIRROR ASS''Y

16G-26290-10-00

Unavailable

22

BOOT 1

16G-2629T-01-00

Unavailable

23

BACK MIRROR ASS''Y

16G-26290-00-00

Unavailable

24

BOOT 2

16G-2629U-01-00

Unavailable

25

COVER, HDLBR UPR1UPPER 1

16G-26143-01-00

Unavailable

26

BOLT, WITH WASHER

90119-06226-00

Unavailable

27

COVER, HDLBR UPR 2UPPER 2

16G-26145-00-00

Unavailable

28

CAP, HANDLEBAR CVR (16G-26216-00)

16G-26216-01-00

Unavailable

29

BRACKET, HNDL CVR 1COVER 1

16G-26226-00-00

Unavailable

30

BOLT, FLANGE

95817-06012-00

Unavailable

31

GROMMET (583 SIDE COVER)

90480-01176-00

Unavailable
