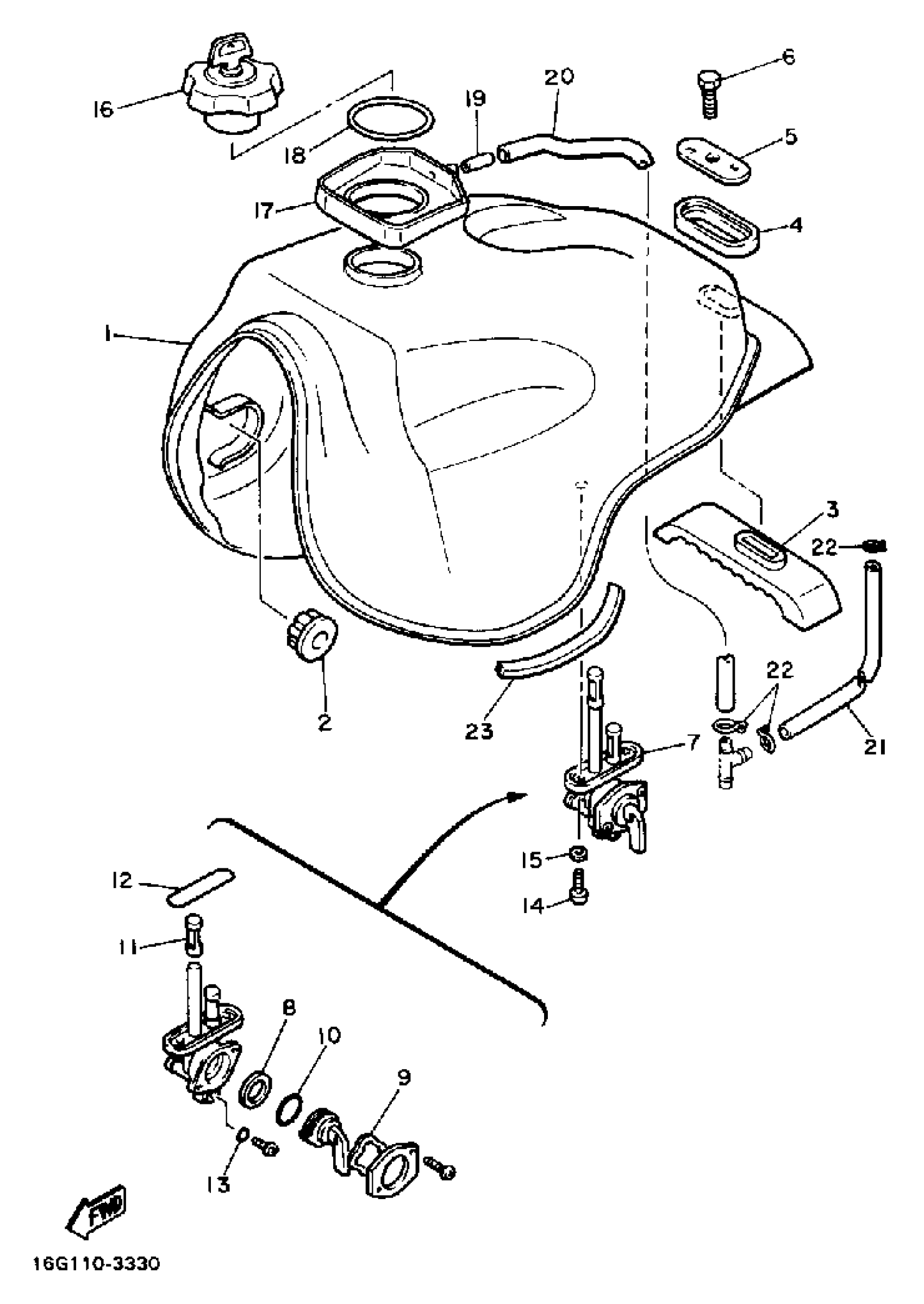

Yamaha XJ650LJ (XJ650L) 1982 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

16G-24110-10-33

Unavailable

2

DAMPER, LOCATING

4H7-24181-00-00

$6.99

3

DAMPER, LOCATING 2

4H7-24182-01-00

Unavailable

4

DAMPER, LOCATING 3

4H7-24183-00-00

Unavailable

5

WASHER, SPECIAL

4H7-24186-00-00

Unavailable

6

BOLT(62E)

97013-08012-00

Unavailable

7

FUEL COCK ASSEMBLY 1 (16G-24500-01)

16G-24500-02-00

Unavailable

8

VALVE

16G-24523-00-00

$28.99

9

. WASHER, WAVE

16G-24518-00-00

Unavailable

10

O-RING

2G2-24534-00-00

$8.99

11

. STRAINER

4X8-24536-01-00

Unavailable

12

O-RING

2G2-24512-00-00

$10.99

13

GASKET, DRAIN PLUG

2G2-24522-00-00

$6.99

14

SCREW 256241430000

90149-06011-00

$5.60

15

WASHER, PLATE(3MB)

90202-05187-00

$1.38

16

CAP ASSY

11H-24602-10-00

Unavailable

17

COVER, FILLER

(16G-2414A-00-00)

Unavailable

18

CIRCLIP, INNER

93450-58087-00

Unavailable

19

SPACER

90560-03220-00

Unavailable

20

HOSE

(90445-07664-00)

Unavailable

21

HOSE (L1050)

90445-072G8-00

Unavailable

22

CLIP (1J7)

90467-07029-00

Unavailable

23

MOLD 1

16G-28345-00-00

Unavailable
