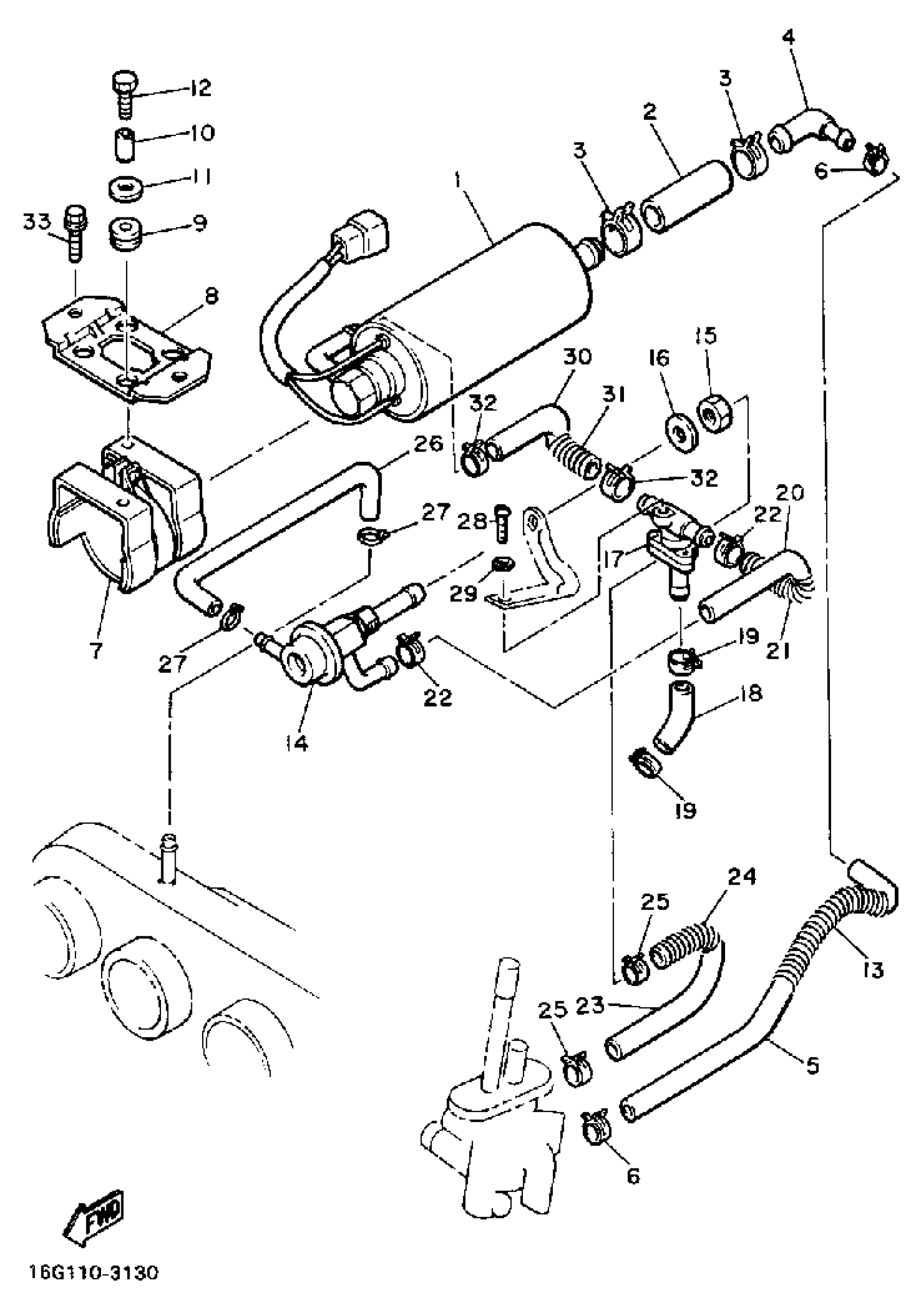

Yamaha XJ650LJ (XJ650L) 1982 FUEL PUMP Diagram

#

Description
Price

1

FUEL PUMP COMP.

16G-13907-00-00

Unavailable

2

PIPE, FUEL 2

16G-13972-01-00

Unavailable

3

CLIP

90468-08104-00

$3.93

4

PIPE, JOINT

16G-13758-00-00

Unavailable

5

PIPE, FUEL 1

(16G-13971-01-00)

Unavailable

6

CLIP(3YX)

90467-13133-00

$8.49

7

STAY, DAMPER

16G-13994-01-00

Unavailable

8

STAY 1

16G-14493-01-00

Unavailable

9

GROMMET(2GH)

90480-12475-00

$8.49

10

COLLAR

90387-06113-00

$11.49

11

WASHER

90209-06012-00

$5.60

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

13

SPRING, COMPRESSION

90501-08704-00

Unavailable

14

REGULATOR, PRESSURE (16G-13906-01)

16G-13906-02-00

Unavailable

15

NUT, HEXAGON SMALL

95317-12700-00

$8.49

16

WASHER, PLATE(663)

92990-12600-00

Unavailable

17

CHECK VALVE ASSEMBLY

16G-13940-02-00

Unavailable

18

PIPE, FUEL 4

16G-13974-01-00

Unavailable

19

CLIP(3YX)

90467-13133-00

$8.49

20

PIPE, FUEL 5

(16G-13975-01-00)

Unavailable

21

SPRING, COMPRESSION

90501-08706-00

Unavailable

22

CLIP(3YX)

90467-13133-00

$8.49

23

PIPE, FUEL 6

(16G-13976-00-00)

Unavailable

24

SPRING, COMPRESSION

90501-08707-00

Unavailable

25

CLIP(3YX)

90467-13133-00

$8.49

26

PIPE, REGULATOR

16G-13978-01-00

Unavailable

27

CLIP 101235600

90467-08003-00

Unavailable

28

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

29

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

30

PIPE, FUEL 3

16G-13973-01-00

Unavailable

31

SPRING, COMPRESSION

(90501-08705-00)

Unavailable

32

CLIP(3YX)

90467-13133-00

$8.49

33

BOLT, WITH WASHER (4L6)

90119-06029-00

Unavailable
