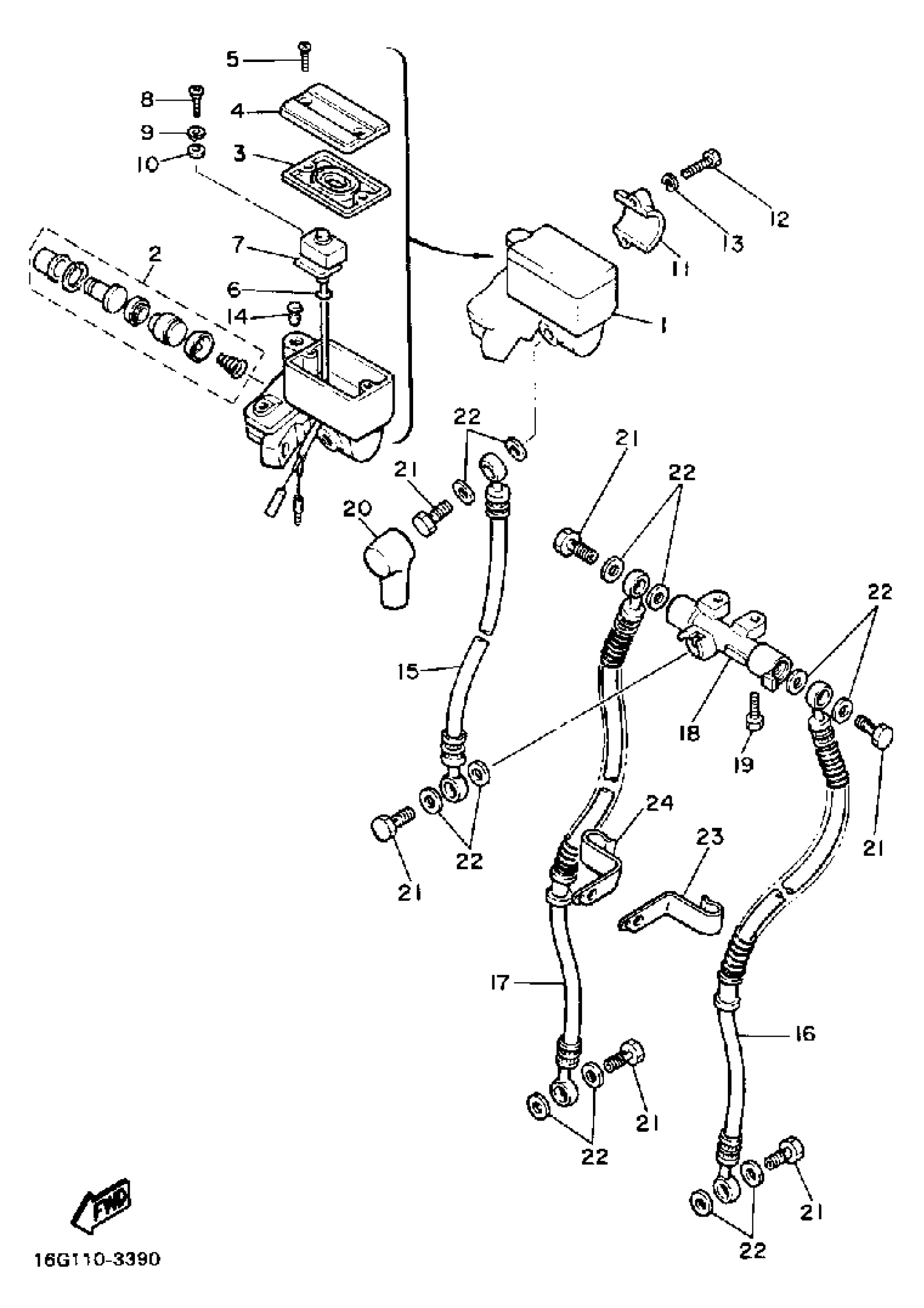

Yamaha XJ650LJ (XJ650L) 1982 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASASSEMBLY

22N-25850-01-00

Unavailable

2

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

3

DIAPHRAGM, RESERVOIR

4HM-25854-00-00

$35.99

4

CAP, RESERVOIR

3GM-25852-02-00

$57.99

5

SCREW, FLAT

98707-04012-00

$2.18

6

. O-RING

93210-08493-00

Unavailable

7

. LEAD SWITCH ASSEMBLY

16G-85702-00-00

Unavailable

8

SCREW, PAN HEAD

98511-04012-00

Unavailable

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

WASHER, PLAIN (646)

92990-04600-00

$5.99

11

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

12

BOLT, HEXAGON

97017-06025-00

$4.24

13

WASHER, SPRING

92907-06100-00

$4.25

14

PLUG (341-26329-00)

90338-09012-00

$9.49

15

HOSE, BRAKE 1

(16G-25872-00-00)

Unavailable

16

HOSE, BRAKE 2

16G-25873-00-00

Unavailable

17

HOSE, BRAKE

16G-25874-00-00

Unavailable

18

JOINT

4K0-25885-00-00

Unavailable

19

BOLT,SOCKET

91317-06020-00

Unavailable

20

BOOT, MASTER CYLINDER

4L0-25862-01-00

Unavailable

21

BOLT, UNION(3GM)

90401-10159-00

Unavailable

22

WASHER, PLATE(481)

90201-10118-00

Unavailable

23

HOLDER, BRKE HOSE 1

(16G-25875-00-00)

Unavailable

24

HOLDER, BRKE HOSE 2

(16G-25876-00-00)

Unavailable
